110v 220v High Accuracy Checkweigher Skin Care System For Skin Care Factory
Contact Person : SICI AUTO
Phone Number : 18921338139
WhatsApp : +8618921338139
Minimum Order Quantity : | 1 set | Packaging Details : | Wooden Case |
---|---|---|---|
Delivery Time : | 30 work days | Payment Terms : | T/T |
Supply Ability : | 50 set/ month |
Place of Origin: | Wuxi | Brand Name: | SICI AUTO |
---|---|---|---|
Certification: | CE | Model Number: | XQ-CZ450 |
Detail Information |
|||
Name: | Heavy Carton High Accuracy Checkweigher | Accuracy: | ±5-20g |
---|---|---|---|
Speed: | 40pcs/min | Minimum Scale: | 1g |
Available Product Size: | 400*450*5-400mm | Removing Type: | Push Plate |
Voltage: | 110/220V 50/60Hz Single Phase | Power: | 100w |
Data Output: | USB | Optional: | Printing Data In Real Time, Alarm Light, RS485 Output Port, |
Application: | Skin Care, Medicine, Food, Commodity | ||
High Light: | 40pcs min automatic checkweigher,100w automatic checkweigher,50hz in line checkweigher |
Product Description
40pcs/min Heavy Carton High Accuracy Checkweigher for Packing Line
Checkweigher Introduction
An automatic checkweigher incorporates a series of conveyor belts. These checkweigher are known also as belt weighers in-motion scales, conveyor scales, dynamic scales, and in-line scales. In filler applications, they are known as check scales. Typically, there are three belts or chain beds
A checkweigher can weigh 40pcs big items per minute (depending on carton size and accuracy requirements). Checkweighers can be used with metal detector and X-ray machines to enable other attributes of the pack to be checked and acted upon accordingly.
Technical Parameter
Model | XQ-CZ450 | |||||||||
Weighing Scope | 0.05-30kg | |||||||||
Weighing Accuracy | ±5-20g (depends on product) | |||||||||
Minimum Scale | 1g | |||||||||
Max. Speed | Max 40pcs/min | |||||||||
Product Limit | L | 400mm | ||||||||
W | 450mm | |||||||||
H | 5-400mm | |||||||||
Operating Mode | Touch screen | |||||||||
Operation Interface | 7 inch touch screen | |||||||||
Removing Type | Push plate | |||||||||
The Height from Ground to Belt | 750±50mm (can be customized) | |||||||||
Machine Structure | Stainless steel (SUS304) | |||||||||
Working Voltage | AC110V/220V 50-60HZ | |||||||||
Power | About 100w | |||||||||
Working Table Dimension | 700mmX450mm | |||||||||
Machine Weight | About 120kg | |||||||||
Optional | alarm light, RS485 output port, | |||||||||
Remark | The properties and environment of the tested products are different, and the detection speed and accuracy are also different. The actual test is taken as the standard. |
Checkweigher Features

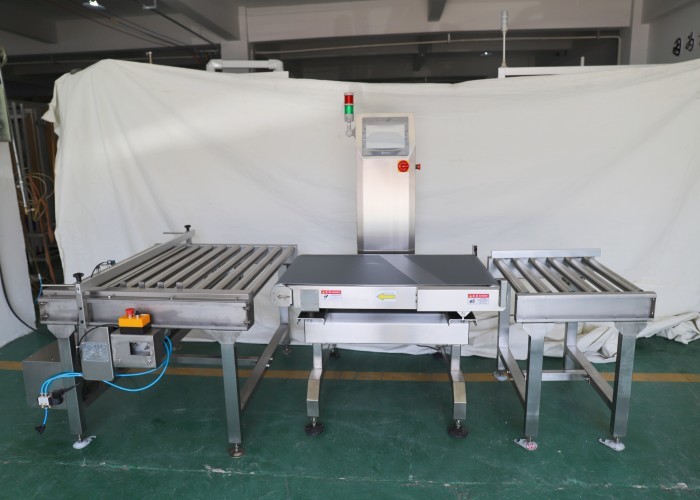

Model: XQ-CZ450 40pcs/min Heavy Carton High Accuracy Checkweigher for Packing Line
- User-friendly operating system.
- Support customized multi-language, the default is Chinese and English.
- Weight of products can be compensated.
- Product qualification ratio can be showed in line graphs and bar charts.
- Large color LCD touch screen interface, simple operation and intuitive display.
- Support customized multi-language, the default is Chinese and English.
- Test data of 100 kinds of products can be set and stored to facilitate user switching.

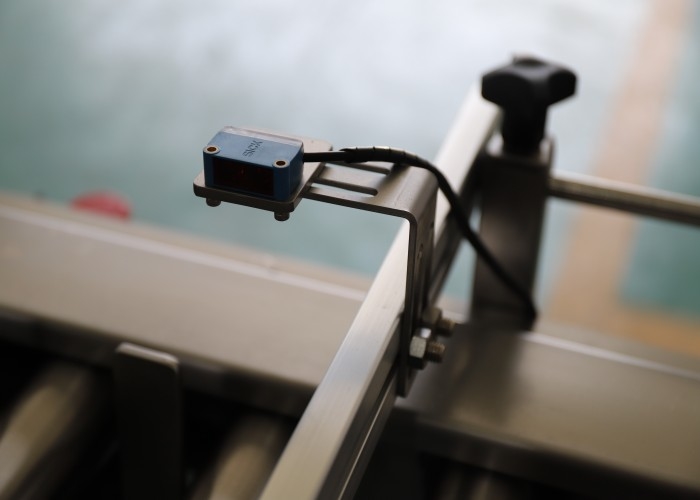

- Automatic photoelectric detection with empty bag, adjustable conveyor belt speed, automatic learning function.
