110v 220v High Accuracy Checkweigher Skin Care System For Skin Care Factory
Contact Person : SICI AUTO
Phone Number : 18921338139
WhatsApp : +8618921338139
Minimum Order Quantity : | 1 set | Packaging Details : | Wooden Case |
---|---|---|---|
Delivery Time : | 30 work days | Payment Terms : | T/T |
Supply Ability : | 50 set/ month |
Place of Origin: | Wuxi | Brand Name: | SICI AUTO |
---|---|---|---|
Certification: | CE | Model Number: | XQ-CZ450B |
Detail Information |
|||
Name: | Flipper Reject High Accuracy Checkweigher | Accuracy: | ±1-3g |
---|---|---|---|
Speed: | 120pcs/min | Minimum Scale: | 1g |
Available Product Size: | 400*300*5-400mm | Removing Type: | Flipper |
Voltage: | 220V 50Hz Single Phase | Power: | 1.5kw |
Data Output: | USB | Optional: | Alarm Light, RS485 Output Port |
Application: | Cosmetics, Medicine, Stationery | ||
High Light: | Frozen Meat High Accuracy Checkweigher,120pcs min High Accuracy Checkweigher,Flipper Reject automatic check weigher |
Product Description

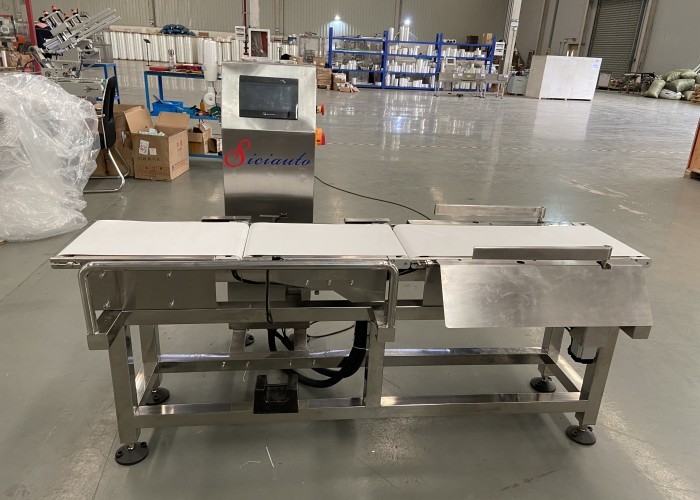

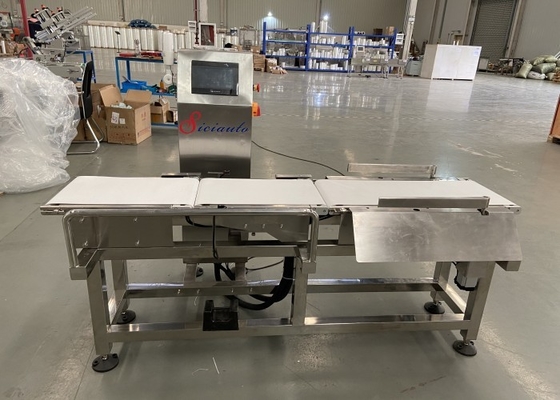

Frozen Meat Flipper Reject Automatic High Accuracy Checkweigher 120pcs/min
Product Introduction of Checkweigher
Checkweigher is used for automatic weight detection, upper and lower limit discrimination or weight classification and selection on various automatic assembly lines and logistics transmission systems, as well as for the detection of more or less parts after product packaging. Widely used in online testing of pharmaceutical, food, toy, hardware, chemical and other industries.
Technical Parameter
Model | XQ-CZ450B | |||||||||
Weighing Scope | 5g-3000g | |||||||||
Weighing Accuracy | ±1g (depends on product and speed) | |||||||||
Max. Speed | Max 120pcs/min | |||||||||
Product Limit | L | 400mm | ||||||||
W | 300mm | |||||||||
H | 5-400mm | |||||||||
Operating Mode | Touch screen | |||||||||
Operation Interface | 7 inch touch screen | |||||||||

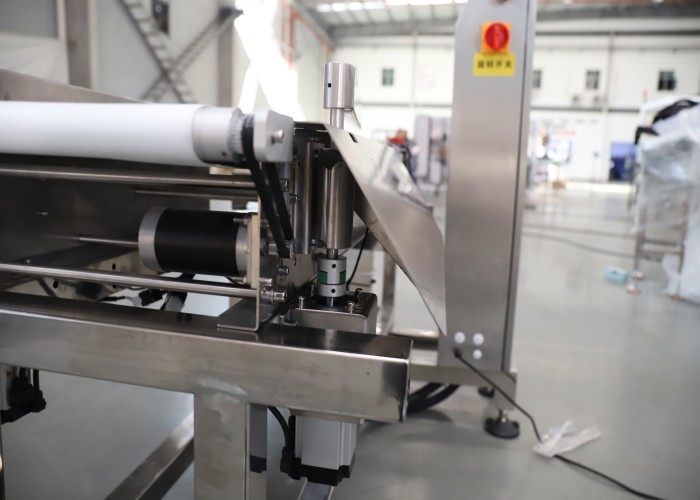

Removing Type | flipping rejector by motor driven | |||||||||
The Height from Ground to Belt | 750±50mm (can be customized) | |||||||||
Machine Structure | Stainless steel (SUS304) | |||||||||
Working Voltage | 220V 50-60HZ | |||||||||
Power | About 1.5KW | |||||||||
Working Table Dimension | 700mmX300mm | |||||||||
Machine Weight | About 120kg | |||||||||
Optional | alarm light, RS485 output port, | |||||||||
Remark | The properties and environment of the tested products are different, and the detection speed and accuracy are also different. The actual test is taken as the standard. |
Checkweigher Features
XQ-CZ450B Frozen Meat Flipper Reject Automatic High Accuracy Checkweigher 120pcs/min
- User-friendly operating system.
- Chinese-English interface.
- Weight of products can be compensated.
- Product qualification ratio can be showed in line graphs and bar charts.
- Automatic zero tracking system to ensure reliable detection data.
- The whole machine is made of stainless steel
- Independent research and development of single-chip microcomputer system, unique filtering algorithm, to ensure the stability of the system.
