200pcs/Min E Business High Accuracy Checkweigher 100w Inline Checkweigher

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 50 set/ month
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-CZ

Detail Information

Name: Automatic Checkweigher With Reject System Accuracy: ±0.05g, ±0.1g, ±0.2-0.5g, ±5-20g
Speed: 200pcs/min, 150pcs/min, 100pcs/min, 40pcs/min Minimum Scale: 0.01g, 0.1g, 0.1g, 1g
Available Product Size: 100*100*2-150mm, 200*150*3-200mm, 400*450*5-400mm Removing Type: Blow Away/push Plate/flipper/drop Out
Voltage: 110/220v Power: 100w
Data Output: USB Optional: Printing Data In Real Time
Application: Hardware, Cigarette, Commodity
High Light:

200pcs min High Accuracy Checkweigher

,

E business High Accuracy Checkweigher

,

100w inline checkweigher

Product Description

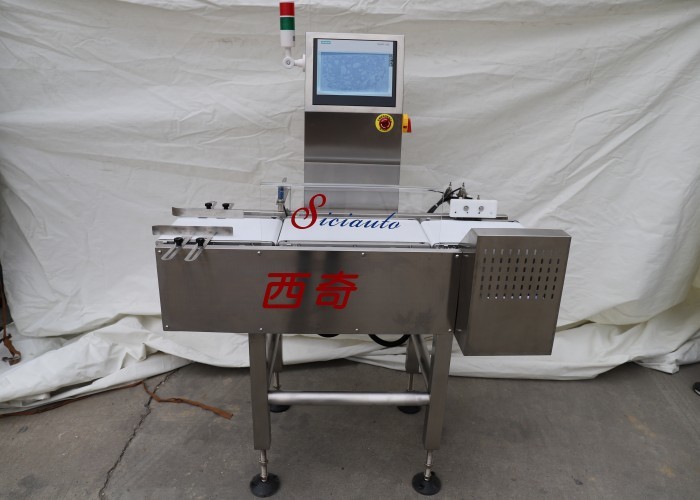

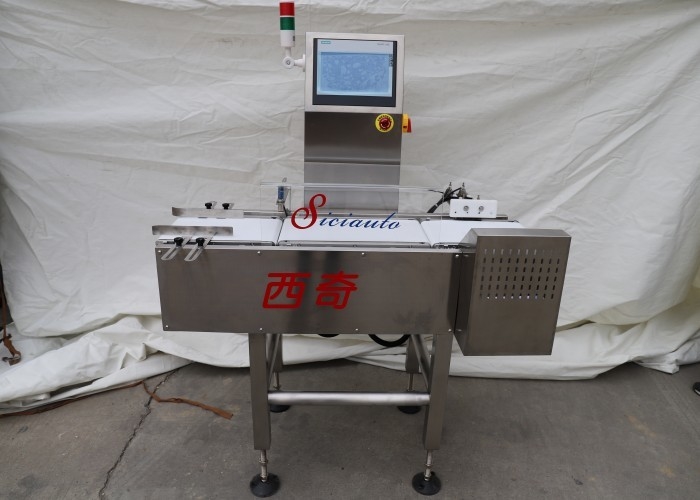

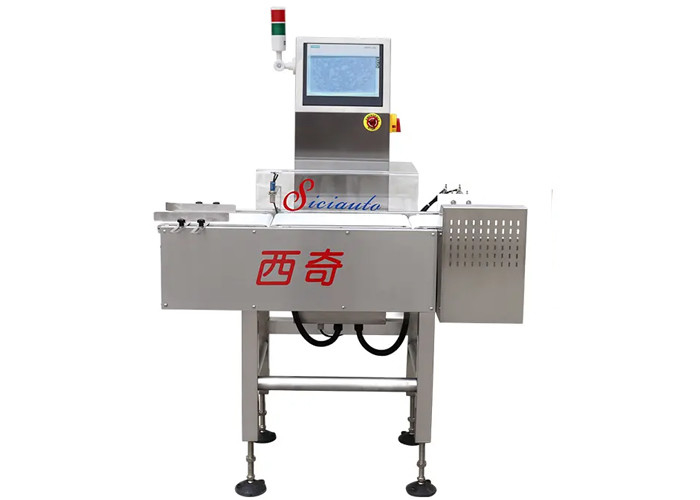

Automatic High Accuracy Checkweigher with reject System

Automatic High Accuracy Checkweigher with reject System for E-business 200pcs/min

Product Introduction of Checkweigher



A checkweigher is an automatic or manual machine for checking the weight of packaged commodities. It is normally found at the offgoing end of a production process and is used to ensure that the weight of a pack of the commodity is within specified limits. Any packs that are outside the tolerance are taken out of line automatically.



Technical Parameter



Model XQ-CZ100 XQ-CZ150 XQ-CZ220 XQ-CZ450
Weighing Scope 2-300g 5-500g 5-1500g 0.05-30kg



Available Product Size

L: 100mm

W: 100mm

H: 2-150mm

L: 200mm

W: 150mm

H: 3-200mm

       L: 300mm

W: 200mm

H: 3-200mm

       L: 400mm

W: 450mm

H: 5-400mm

Weighing Accuracy ±0.05g ±0.1g ±0.2-0.5g ±5-20g
Minimum Scale 0.01g 0.1g 0.1g 1g
Max. Speed 200pcs/min 150pcs/min 100pcs/min 40pcs/min
Removing Type blow away blow away/push plate push plate/turning plate push plate
Working Table Dimension 200*100mm 316*150mm 407*220mm 700*450mm



Optical Functions

alarm light, RS486

output port

alarm light,RS486 output port, removed storage box



alarm light

alarm light, RS485

output port

Machine Weight about 60kg about 60kg about 80kg about 120kg

Height from Belt to

Ground



750±50mm

Power Supply AC 110V/220V 50/60Hz
Power 100w



Checkweigher Features



XQ-CZ Automatic High Accuracy Checkweigher with reject system

- User-friendly operating system.

- Chinese-English interface.

- Weight of products can be compensated.

- Product qualification ratio can be showed in line graphs and bar charts.

- Two-tier client login user rights manage, password protect all the data.

- 100 kinds data can store with strong data statistics function.

- Multi-reject methods, with alarm and stop function supported.

200pcs/Min E Business High Accuracy Checkweigher 100w Inline Checkweigher 0

200pcs/Min E Business High Accuracy Checkweigher 100w Inline Checkweigher 1
