110v 220v High Accuracy Checkweigher Skin Care System For Skin Care Factory
Contact Person : SICI AUTO
Phone Number : 18921338139
WhatsApp : +8618921338139
| Minimum Order Quantity : | 1 set | Packaging Details : | Wooden Case |
|---|---|---|---|
| Delivery Time : | 30 work days | Payment Terms : | T/T |
| Supply Ability : | 50 set/ month |
| Place of Origin: | Wuxi | Brand Name: | SICI AUTO |
|---|---|---|---|
| Certification: | CE | Model Number: | XQ-CZ220 |
|
Detail Information |
|||
| Name: | High Accuracy Checkweigher For Tobacco | Accuracy: | ±0.2-0.5g |
|---|---|---|---|
| Speed: | 100pcs/min | Minimum Scale: | 0.1g |
| Available Product Size: | 300*220*3-200mm | Removing Type: | Push Plate |
| Voltage: | 110/220v | Power: | 100w |
| Data Output: | USB | Optional: | Printing Data In Real Time |
| Application: | Commodity, Stationery, Medicine | ||
| High Light: | 0.2g High Accuracy Checkweigher,0.5g High Accuracy Checkweigher,Tobacco checkweigher scale |
||
Product Description

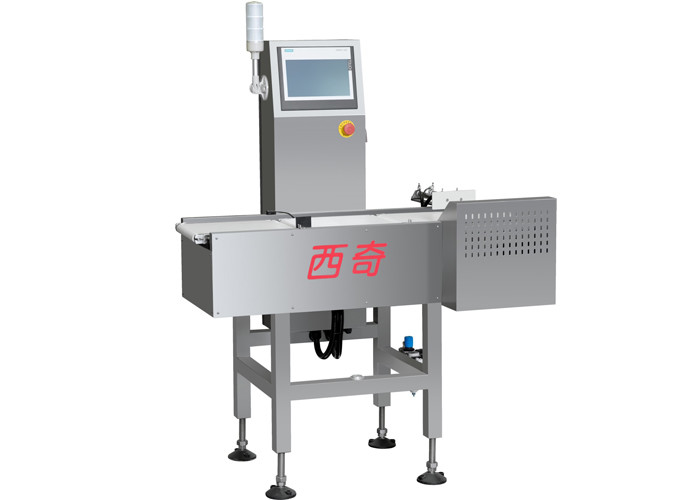

0.2g-0.5g Automatic High Accuracy Checkweigher for Tobacco Industry
Product Introduction of Checkweigher
The checkweigher developed by SICI AUTO adopts advanced weighing technology and simple design, which is economical and affordable, ensuring stable and reliable checkweighing accuracy and speed. It can detect overweight and underweight unqualified products in the production line in real time online.
Automatic checkweigher is widely used in food, agriculture, fishery, chemical, light industry, medicine, building materials, machinery, electronics, energy, textile, packaging, health care products, cosmetics and other industries.
Technical Parameter
| Model | XQ-CZ220 | |||||||||
| Weighing Scope | 5-1500g | |||||||||
| Weighing Accuracy | ±0.2-0.5g (depends on product) | |||||||||
| Minimum Scale | 0.1g | |||||||||
| Max. Speed | Max 100pcs/min | |||||||||
| Product Limit | L | 300mm | ||||||||
| W | 220mm | |||||||||
| H | 3-200mm | |||||||||
| Operating Mode | Touch screen | |||||||||
| Operation Interface | 7 inch touch screen | |||||||||
| Removing Type | push plate | |||||||||
| The Height from Ground to Belt | 750±50mm (can be customized) | |||||||||
| Machine Structure | Stainless steel (SUS304) | |||||||||
| Working Voltage | AC110V/220V 50-60HZ | |||||||||
| Power | About 100w | |||||||||
| Working Table Dimension | 407mmX220mm | |||||||||
| Machine Weight | About 80kg | |||||||||
| Optional | alarm light, RS485 output port, | |||||||||
| Remark | The properties and environment of the tested products are different, and the detection speed and accuracy are also different. The actual test is taken as the standard. | |||||||||
Checkweigher Features
XQ-CZ220 0.2g-0.5g Automatic High Accuracy Checkweigher for Tobacco Industry
- Large color LCD touch screen interface, simple operation and intuitive display.
- Support customized multi-language, the default is Chinese and English.
- Test data of 100 kinds of products can be set and stored to facilitate user switching.

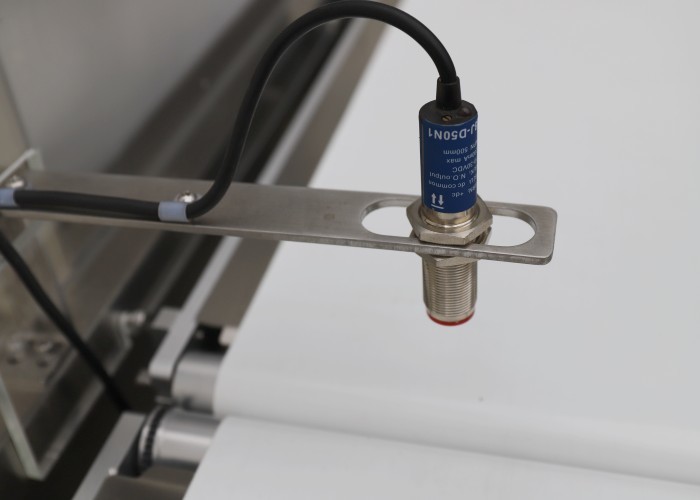

- Automatic photoelectric detection with empty bag, adjustable conveyor belt speed, automatic learning function.
- Password protection is set for parameter, only for management personnel.
- Automatic zero tracking system to ensure reliable detection data.
