110v 220v High Accuracy Checkweigher Skin Care System For Skin Care Factory
Contact Person : SICI AUTO
Phone Number : 18921338139
WhatsApp : +8618921338139
| Minimum Order Quantity : | 1 set | Packaging Details : | Wooden Case |
|---|---|---|---|
| Delivery Time : | 30 work days | Payment Terms : | T/T |
| Supply Ability : | 50 set/ month |
| Place of Origin: | Wuxi | Brand Name: | SICI AUTO |
|---|---|---|---|
| Certification: | CE | Model Number: | XQ-CZ100 |
|
Detail Information |
|||
| Name: | Small Candies High Accuracy Checkweigher | Accuracy: | ±0.05g |
|---|---|---|---|
| Speed: | 200pcs/min | Minimum Scale: | 0.01g |
| Available Product Size: | 100*100*2-150mm | Removing Type: | Blow Away |
| Voltage: | 110/220v | Power: | 100w |
| Data Output: | USB | Optional: | Printing Data In Real Time |
| Application: | Candy, Biscuit | ||
| High Light: | Blowing Away high accuracy check weigher,200pcs min high accuracy check weigher,candies in line check weighers |
||
Product Description

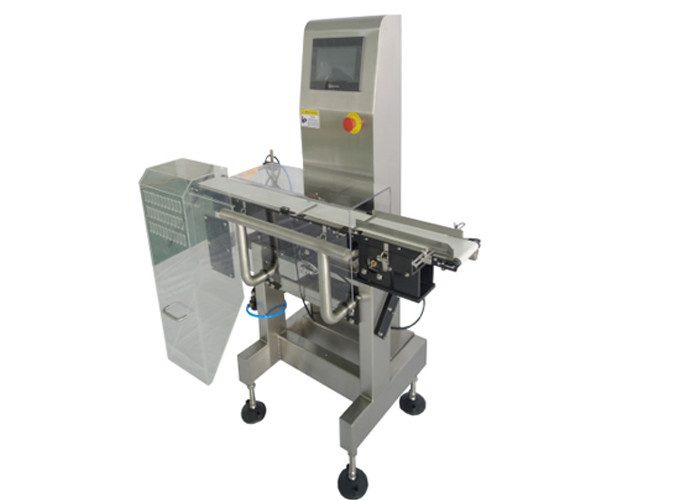

XQ-CZ100 Small Candies High Accuracy Checkweigher with Blowing Away System
Checkweigher Introduction
A checkweigher is an automatic machine for checking the weight of packaged products. The checkweigher is normally used to ensure that the weight of a pack of the product is within specified limits. Any packs that are outside the tolerance are taken out of line automatically. Checkweighers are widly used in cleanrooms, mints (rolls of coins), dry atmosphere environments, wet environments, produce barns, food processing, drug processing, cosmetics filling, etc.
Technical Parameter
| Model | XQ-CZ100 | |||||||||
| Weighing Scope | 2-300g | |||||||||
| Weighing Accuracy | ±0.05g (depends on product) | |||||||||
| Minimum Scale | 0.01g | |||||||||
| Max. Speed | Max 200pcs/min | |||||||||
| Product Limit | L | 100mm | ||||||||
| W | 100mm | |||||||||
| H | 2-150mm | |||||||||
| Operating Mode | Touch screen | |||||||||
| Operation Interface | 7 inch touch screen | |||||||||
| Removing Type | Blow away | |||||||||
| The Height from Ground to Belt | 750±50mm (can be customized) | |||||||||
| Machine Structure | Stainless steel (SUS304) | |||||||||
| Working Voltage | AC110V/220V 50-60HZ | |||||||||
| Power | About 100w | |||||||||
| Working Table Dimension | 200mmX100mm | |||||||||
| Machine Weight | About 60kg | |||||||||
| Optional | alarm light, RS485 output port, | |||||||||
| Remark | The properties and environment of the tested products are different, and the detection speed and accuracy are also different. The actual test is taken as the standard. | |||||||||
Checkweigher Features
Model: XQ-CZ100 Small Candies High Accuracy Checkweigher with Blowing Away System
- Large color LCD touch screen interface, simple operation and intuitive display.
- Support customized multi-language, the default is Chinese and English.
- Test data of 100 kinds of products can be set and stored to facilitate user switching.

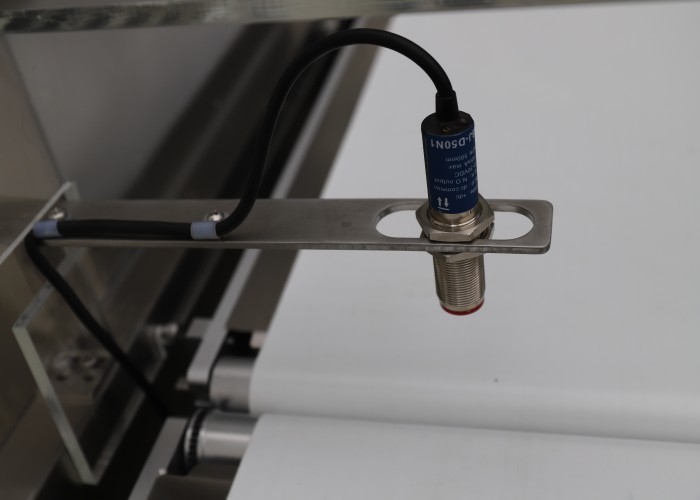

- Automatic photoelectric detection with empty bag, adjustable conveyor belt speed, automatic learning function.
Samples
