40pcs/Min Electromechanical Auto Check Weigher Big Carton Dynamic

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 50 set/ month
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-CZ450

Detail Information

Name: High Accuracy Checkweigher For Big Carton Accuracy: ±5-20g
Speed: 40pcs/min Minimum Scale: 1g
Available Product Size: 400*450*5-400mm Removing Type: Push Plate
Voltage: 110/220v Power: 100w
Data Output: USB Optional: Printing Data In Real Time
Application: Hardware, Cigarette, Commodity
High Light:

40pcs min auto check weigher

,

electromechanical auto check weigher

,

big carton dynamic checkweigher

Product Description

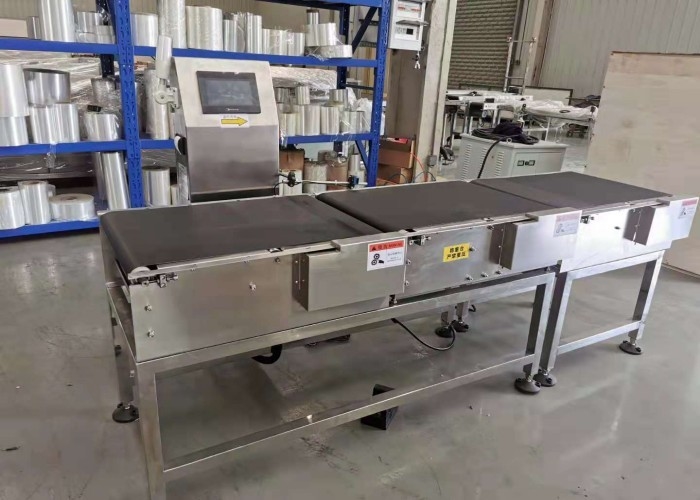

Automatic High Accuracy Checkweigher for Big Carton 40pcs/min



Checkweigher Introduction



Checkweigher is an electromechanical system that can control the weight of products on the production line without stopping, and automatically discard products whose weight exceeds the specified range. The calibration scale designed by SICI AUTO is an innovative solution to meet the production requirements of the industry.



Technical Parameter



Model XQ-CZ450
Weighing Scope 0.05-30kg
Weighing Accuracy ±5-20g (depends on product)
Minimum Scale 1g
Max. Speed Max 40pcs/min
Product Limit L 400mm
W 450mm
H 5-400mm
Operating Mode Touch screen
Operation Interface 7 inch touch screen
Removing Type Push plate
The Height from Ground to Belt 750±50mm (can be customized)
Machine Structure Stainless steel (SUS304)
Working Voltage AC110V/220V 50-60HZ
Power About 100w
Working Table Dimension 700mmX450mm
Machine Weight About 120kg
Optional alarm light, RS485 output port,
Remark The properties and environment of the tested products are different, and the detection speed and accuracy are also different. The actual test is taken as the standard.



Checkweigher Features



Model: XQ-CZ450 Automatic High Accuracy Checkweigher for Big Carton 40pcs/min

- User-friendly operating system.

- Chinese-English interface.

- Weight of products can be compensated.

- Product qualification ratio can be showed in line graphs and bar charts.

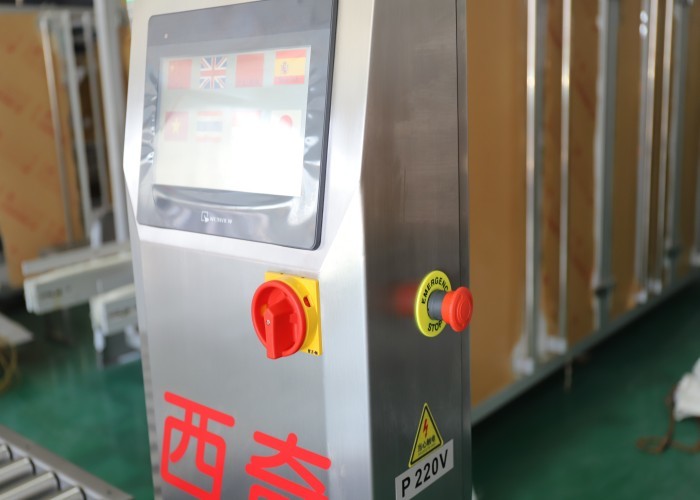

- Large color LCD touch screen interface, simple operation and intuitive display.

- Support customized multi-language, the default is Chinese and English.

- Test data of 100 kinds of products can be set and stored to facilitate user switching.

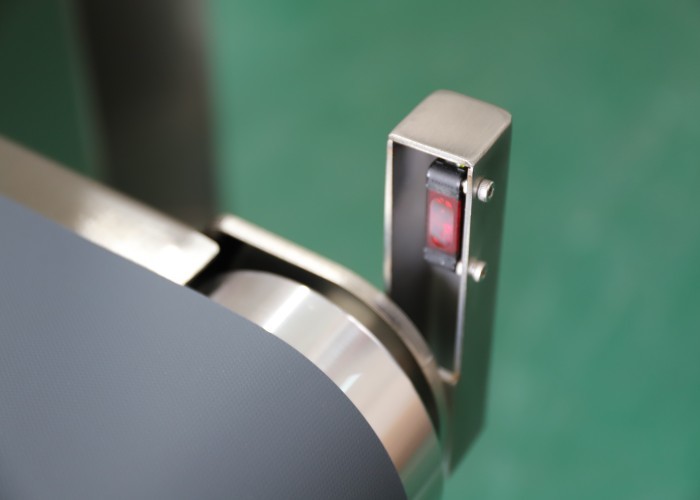

- Automatic photoelectric detection with empty bag, adjustable conveyor belt speed, automatic learning function.



Samples
