Flipper Reject Frozen Chicken Checkweigher Machine 1.5kw Industrial Checkweigher

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 50 set/ month
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-CZ450B

Detail Information

Name: Frozen Chicken High Accuracy Checkweigher Accuracy: ±1-3g
Speed: 120pcs/min Minimum Scale: 1g
Available Product Size: 400*300*5-400mm Removing Type: Flipper
Voltage: 220v 50Hz Power: 1.5kw
Data Output: USB Optional: Printing Data In Real Time, Alarm Light, RS485 Output Port
Application: Perfume, Medicine, Stationery
High Light:

Flipper Reject checkweigher machine

,

Frozen Chicken checkweigher machine

,

1.5kw industrial checkweigher

Product Description

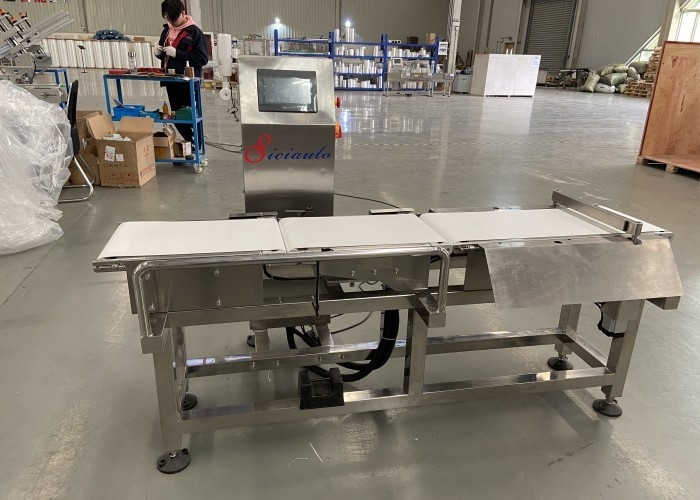

Frozen Chicken Automatic High Accuracy Checkweigher with Flipper Reject System



Product Introduction of Checkweigher



A checkweigher is an automatic or manual machine for checking the weight of packaged commodities. It is normally found at the offgoing end of a production process and is used to ensure that the weight of a pack of the commodity is within specified limits. Any packs that are outside the tolerance are taken out of line automatically.



It's used for automatic weight detection, upper and lower limit discrimination or weight classification and selection on various automatic assembly lines and logistics transmission systems, as well as for the detection of more or less parts after product packaging.



Technical Parameter



Model XQ-CZ450B
Weighing Scope 5g-3000g
Weighing Accuracy ±1g (depends on product and speed)
Max. Speed Max 120pcs/min
Product Limit L 400mm
W 300mm
H 5-400mm
Operating Mode Touch screen
Operation Interface 7 inch touch screen
Removing Type flipping rejector by motor driven
The Height from Ground to Belt 750±50mm (can be customized)
Machine Structure Stainless steel (SUS304)
Working Voltage 220V 50-60HZ
Power About 1.5KW
Working Table Dimension 700mmX300mm
Machine Weight About 120kg
Optional alarm light, RS485 output port,
Remark The properties and environment of the tested products are different, and the detection speed and accuracy are also different. The actual test is taken as the standard.



Checkweigher Features



XQ-CZ450B Frozen Chicken Automatic High Accuracy Checkweigher with Flipper Reject System

- User-friendly operating system.

- Chinese-English interface.

- Weight of products can be compensated.

- Product qualification ratio can be showed in line graphs and bar charts.

- Independent research and development of single-chip microcomputer system, unique filtering algorithm, to ensure the stability of the system.



Samples

Flipper Reject Frozen Chicken Checkweigher Machine 1.5kw Industrial Checkweigher 0
