40pcs/Min 100w Automatic Checkweigher 50hz In Line Checkweigher For Packing Line
Contact Person : SICI AUTO
Phone Number : 18921338139
WhatsApp : +8618921338139
Minimum Order Quantity : | 1 set | Packaging Details : | Wooden Case |
---|---|---|---|
Delivery Time : | 30 work days | Payment Terms : | T/T |
Supply Ability : | 50 set/ month |
Place of Origin: | Wuxi | Brand Name: | SICI AUTO |
---|---|---|---|
Certification: | CE | Model Number: | XQ-CZ220 |
Detail Information |
|||
Name: | Cleanser Tube High Accuracy Checkweigher | Accuracy: | ±0.2-0.5g |
---|---|---|---|
Speed: | 100pcs/min | Minimum Scale: | 0.1g |
Available Product Size: | 300*220*3-200mm | Removing Type: | Push Plate |
Voltage: | 110/220v 50Hz | Power: | 100w |
Data Output: | USB | Optional: | Alarm Light, RS485 Output Port |
Application: | Lotion, Cream, Cigarette, Stationery | ||
High Light: | 110v High Accuracy Checkweigher,220v High Accuracy Checkweigher,Skin Care checkweigher system |
Product Description

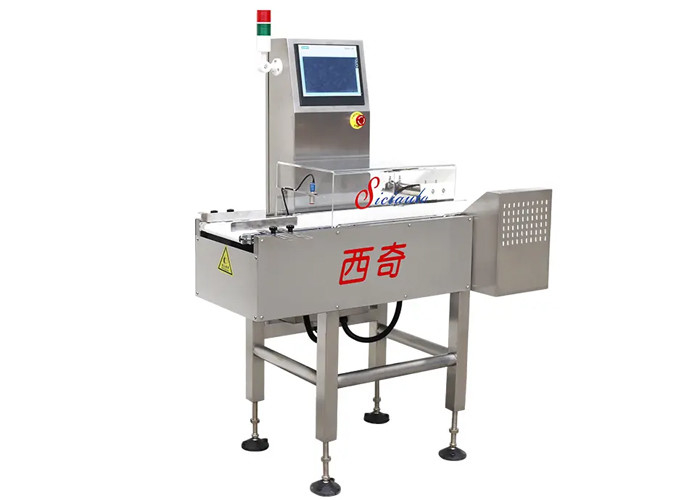

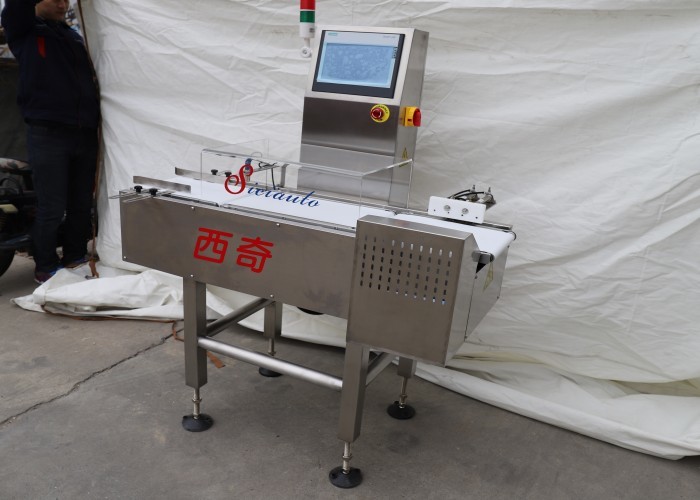

Cleanser Tube Checkweigher High Accuracy Checkweigher with Push plate for Skin Care Factory
Product Introduction of Checkweigher
A checkweigher is an automatic or manual machine for checking the weight of packaged commodities. It is normally found at the offgoing end of a production process and is used to ensure that the weight of a pack of the commodity is within specified limits. Any packs that are outside the tolerance are taken out of line automatically.
Checkweighers check the weights of a product while in motion with specified weight limitations. These products include industrial check weighers and high-performance standards for the pharmaceutical industry to control limits of metal contaminants and other dense foreign objects in bulk, piped food, packaged, and pharmaceuticals.
Technical Parameter
Model | XQ-CZ220 | |||||||||
Weighing Scope | 5-1500g | |||||||||
Weighing Accuracy | ±0.2-0.5g (depends on product) | |||||||||
Minimum Scale | 0.1g | |||||||||
Max. Speed | Max 100pcs/min | |||||||||
Product Limit | L | 300mm | ||||||||
W | 220mm | |||||||||
H | 3-200mm | |||||||||
Operating Mode | Touch screen | |||||||||
Operation Interface | 7 inch touch screen | |||||||||
Removing Type | push plate | |||||||||
The Height from Ground to Belt | 750±50mm (can be customized) | |||||||||
Machine Structure | Stainless steel (SUS304) | |||||||||
Working Voltage | AC110V/220V 50-60HZ | |||||||||
Power | About 100w | |||||||||
Working Table Dimension | 407mmX220mm | |||||||||
Machine Weight | About 80kg | |||||||||
Optional | alarm light, RS485 output port | |||||||||
Remark | The properties and environment of the tested products are different, and the detection speed and accuracy are also different. The actual test is taken as the standard. |
Checkweigher Features
XQ-CZ220 Cleanser Tube Checkweigher High Accuracy Checkweigher with Push plate for Skin Care Factory
