3-12rpm Pressurized Pallet Wrapping Machine 25 Load/H Automatic Skid Wrapper

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 60 set/ month
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-X300

Detail Information

Name: Pressurized Pallet Wrapping Machine Pressurized Weight: 30kg (adjustable)
Pre-stretch Ratio: 200% (1m Stretch To 3m) Voltage: 110/220V
Speed: 25 Pallet/h Max Loading Weight: 1500kg
Film Cutting Mode: Automatic Film Fix Mode: Automatic
Optional: Ramp, Weighing Application: Hardware, Tobacco
High Light:

Pressurized Pallet Wrapping Machine


12rpm Pallet Wrapping Machine


25 load/h automatic skid wrapper

Product Description

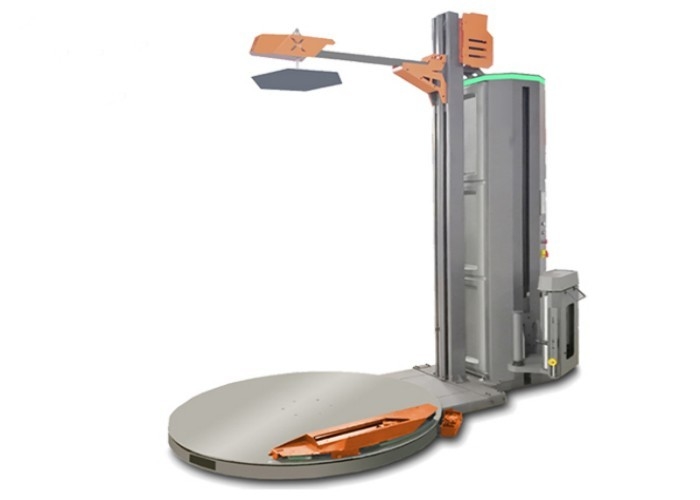

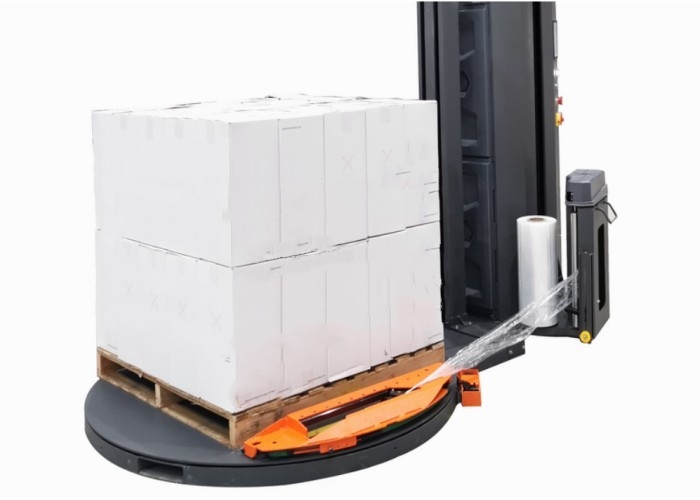

25 load/h Fully Automatic Pressurized XQ-X300 Pallet Wrapping Machine


Pallet Wrapping Machine Introduction


Pallet wrapping machine can be used for the volume and weight of the larger parcel wrapped goods and products, the goods will not scattered and collapse phenomenon, the goods can have dust, moistureproof, prevent damage effect, is widely used in food, logistics, printing, paper making, chemical industry and related industries, such as compact package a wrap film products, beautiful appearance.


Technical Parameter


Load weight Maximum 1500KG Stop at original Included
Pressurized stroke 500-2200mm Automatic alarm Included
Pressurized weight 30kg (adjustable) Positioning stop Included
Turntable speed 3-12 RPM/min(can be adjusted) Speed Adjustable Included
Packing height Maximum 2350mm Pressurized mode Electric
Turntable size 1650mm(1800mm /optional) Measure height Automatic (black/blue color optional)
Pre-stretch rate 200%(1m stretch to 3m) Wrapping force Adjustable
Up&down speed 1.5 ~5.5 m/mins Product Memory Simple and Multilayer Mode
Wrapping speed 25 load/h (181.2*1.8m two layers) Automatic cut film Have(pallet grip function or Auto cut film fucntion Alternatives)
Film Width 500mm(750mm optional) Fix film on pallet automatic
Film diameter 250mm PLC SIEMENS
Film paper Core 76 mm (50 mm optional) Inverter SIEMENS
Film weight Maximum 15KG Touch screen SIEMENS
Machine power 1.9KW Sensor brand SICK (Germany Brand)
Voltage 220v-240v 50/60Hz safety device film carriage bottom safety sensor
Machine weight 950KG Certificate CE
Machine size 2762.5*1650*3195mm(L*W*H) Optional device ramp, weighing


Product Introduction


Model: XQ-X300 25 load/h Fully Automatic Pressurized XQ-X300 Pallet Wrapping Machine


1. The electric pressure system is adopted to prevent the scattering and displacement of the goods in the process of winding. The pressure stroke is 500mm-2000mm. Compared with the traditional pneumatic compression, the range is doubled and the range is wider.

2. After starting, the film can be automatically attached; After finishing packing, the film can be cut automatically. The whole process to realize automatic, improve efficiency, more convenient operation

3. Avoid the traditional winding machine due to different forces at each point: carton corner concave, product damage, so as to ensure that any shape of the product can be easily packaged

4. When the equipment needs to be adjusted during operation, an alarm will be automatically issued to remind the staff to deal with it in time.
