25-30 Pallet/H Semi Automatic Pallet Wrapping Machine 10rpm Pre Stretch
Contact Person : SICI AUTO
Phone Number : 18921338139
WhatsApp : +8618921338139
Detail Information |
|||
Name: | On-line Pallet Wrapping Machine | Packing Mode: | Automatic Wrapping |
---|---|---|---|
Pre-stretch Ratio: | 250% | Voltage: | 220V/380V 50/60Hz |
Speed: | 30-40 Pallet/h | Max Loading Weight: | 2000kg |
Film Cutting Mode: | Automatic | Film Fix Mode: | Automatic |
Optional: | Weighing | Application: | Juice, Cooking Oil, Cosmetics |
High Light: | 30 pallet min automatic pallet wrapper machine,40 pallet min automatic pallet wrapper machine,2000kg plastic pallet wrapper |
Product Description

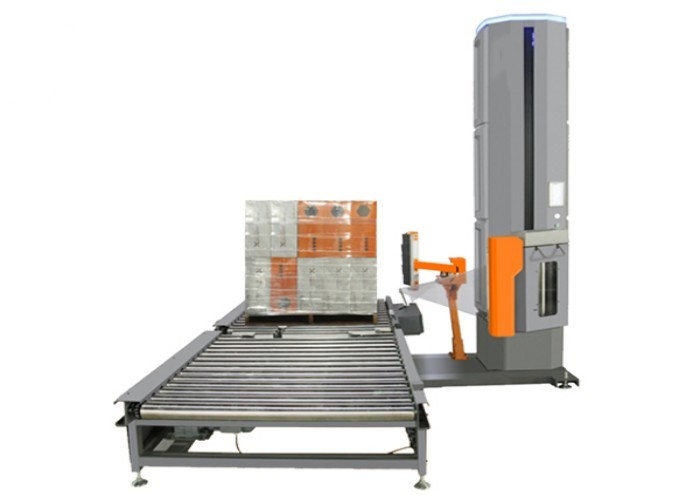

XQ-S300 On-line Pallet Wrapping Machine for Production Line 30-40 pallet/min
Pallet Wrapping Machine Introduction
Pallet Wrapping Machines are used to tension and stretch plastic film around a pallet load of goods. With a rotating table, the pallet is first placed on a rotating platform. The pallet rotates and the film is wrapped around the load.
Technical Parameter
Item | Specification |
Model | XQ-S300 |
Speed | 30-40 pallet/min |
Loading diagonal dimension | 1680mm |
Packing height | 2300mm |
Rotate speed | 0-16RPM (adjustable) |
Circle diameter | 2200mm |
Power | 1.5kw |
Upload film | automatic, heating |
Max loading | 2000kg |
Film dimension | 500mm |
Pre-stretch ratio | 250% |
Turntable dimension | 1800mm |
Stretch film diameter | 250mm |
Film transport system | power roller |
Optional | weighing |
Machine dimension | 3047*1799*3183mm |
Machine weight | 1200kg |
Voltage | 220/380V 50/60Hz |
Product Introduction
Model: XQ-S300 On-line Pallet Wrapping Machine for Production Line 30-40 pallet/min
1. Avoid the traditional winding machine due to different forces at each point: carton corner concave, product damage, so as to ensure that any shape of the product can be easily packaged.
2. Automatic rope making technology can roll up a coil of film rope and attach it to the tray, which can hold the goods. This ensures that the goods do not slip off the pallets in transit.
3. The new design of hot - type film cutting function. With the newly designed upper cutting film system, the tray is sealed perfectly at the end after the tray packaging is completed.
4. The new film breaking system completely solves the problem of the tail winding film falling off after the traditional winding machine breaks the film, so that the wound film breaking film covering system is integrated, and the tail winding film is perfectly combined with the tray.

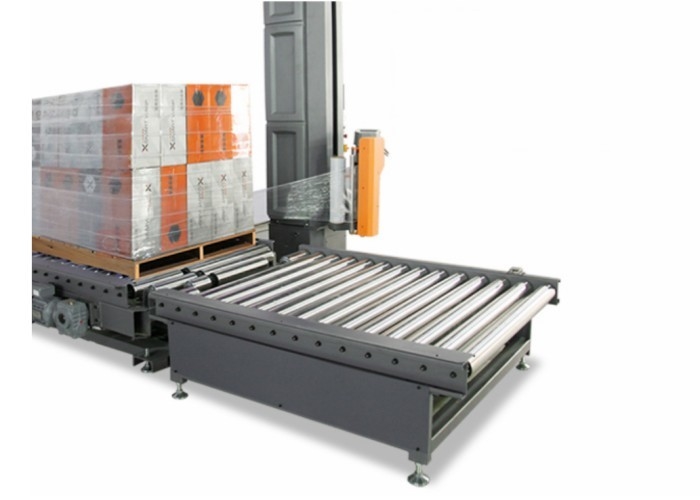

5. The on-line pallet wrapping machine adopts 89mm stainless steel conveying roller, the roller spacing is small, so as to ensure the smooth conveying tray.Stainless steel material can avoid rust, corrosion and other problems. The roller with the front and rear conveyor lines adopts the chain drive, which avoids the stalling problem caused by the power interruption in the connecting process of the front and rear conveyor lines of the traditional unpowered roller.
