45-90 Pallet/H Automatic Pallet Wrapping Machine High Speed Stretch Wrapping Machine

Product Description

Vertical High Speed 45-90Pallet/h Pallet Wrapping Machine for Home Appliance

Pallet Wrapping Machine Introduction

Vertical stretch wrapping machines are often referred to as pallet wrappers. Key benefits to using a pallet wrapping machine include reduced material waste, more secure pallet loads and significantly improved worker productivity. Several film carriage options are available such as pre-stretch and manual break.

Technical Parameter

Product Introduction

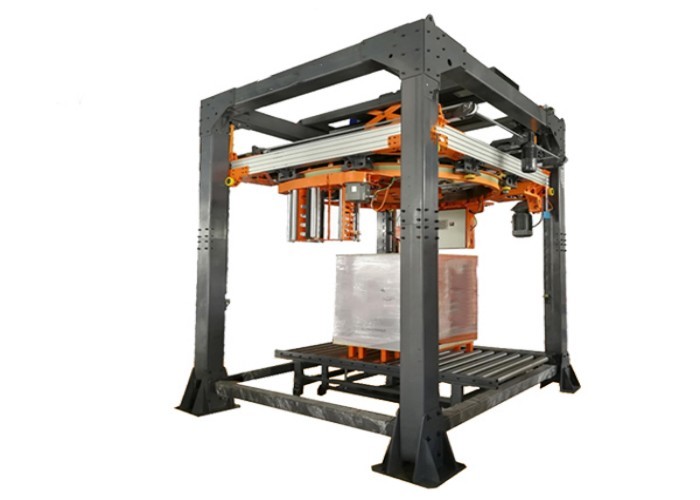

Model: XQ-X1300 Vertical High Speed 45-90Pallet/h Pallet Wrapping Machine for Home Appliance

1. Ring packaging, in the packaging process, the tray to avoid falling, ring movement, tray on the conveyor belt, packaging more stable.

2. Siemens touch screen, Siemens frequency converter, Siemens PLC, SEW motor, Siemens servo motor, Sick sensor, Fisto cylinder, Haber drive belt, double sliding line controller

3. The motor adopts 6cm soft material to drive the top pressure function to avoid hard pressing the tray

4. Equipped with timely transmission belt, accurate positioning, to avoid the risk of high-speed deviation and belt slip.

5. Siemens servo motor control film output, film does not break, fast working speed.

6. The coupling and internal balance device are adopted to ensure smooth up and down movement. The internal balance device makes the drive system have longer mechanical life.

Details
