25-30 Pallet/H Semi Automatic Pallet Wrapping Machine 10rpm Pre Stretch
Contact Person : SICI AUTO
Phone Number : 18921338139
WhatsApp : +8618921338139
Minimum Order Quantity : | 1 set | Packaging Details : | Wooden Case |
---|---|---|---|
Delivery Time : | 30 work days | Payment Terms : | T/T |
Supply Ability : | 60 set/ month |
Place of Origin: | Wuxi | Brand Name: | SICI AUTO |
---|---|---|---|
Certification: | CE | Model Number: | XQ-X0Z |
Detail Information |
|||
Name: | Prevent Stretch Pallet Wrapping Machine | Packing Mode: | Automatic Wrapping |
---|---|---|---|
Power: | 1kw | Voltage: | 220V 50Hz |
Speed: | 25-30 Pallet/h | Max Loading Weight: | 1500/2000/2500kg |
Film Cutting Mode: | Manual | Film Fix Mode: | Automatic |
Optional: | Remote Control | Application: | Wooden Case, Carton |
High Light: | 1500kg stretch pallet wrapping machine,2000kg stretch pallet wrapping machine,30 pallet/h automatic stretch wrapper |
Product Description

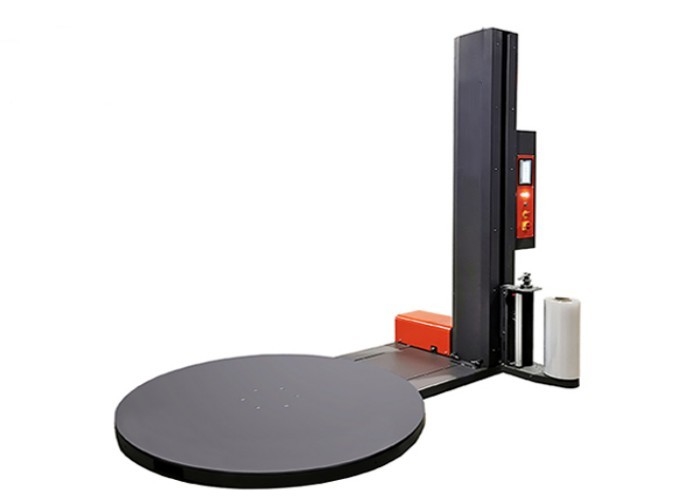

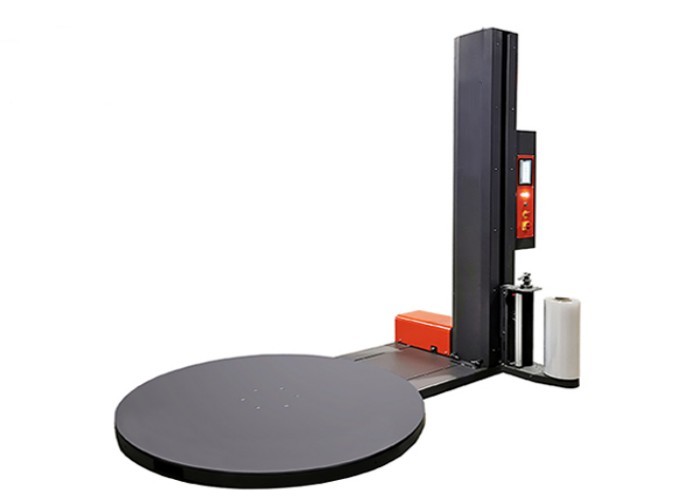

XQ-X0Z Prevent Stretch Pallet Wrapping Machine 25-30 pallet/h for Carton
Pallet Wrapping Machine Introduction
Pallet wrapping machines improve the productivity, decrease the consumption of consumables, improve the appearance of your goods, save on labour costs, and reduce the risk of injury. They also come in many configurations that can be modified to suit the individual needs of your business.
Technical Parameter
Loading weight | 1500/2000/2500KG | Stop at original | Included | |||||
Turntable speed | 3-10 RPM/min | Automatic alarm | Included | |||||
Packing height | 2000/2400/2800mm | Slow stop slow start | Included | |||||
Column height | 2400/2800/3200mm | Turntable lock | Included | |||||
Up&down speed | 1.5 ~5.5 m/mins | Tablet height | 86.7mm | |||||
Wrapping speed | 25-30 pallet/h | Automatic cut film | manual | |||||
Film Width | 500mm(750mm optional) | Fix film on pallet | manual | |||||
Film diameter | 250mm | PLC | X-line | |||||
Film paper Core | 76 mm (50 mm optional) | Inverter | JSK/X-line | |||||
Film weight | Maximum 15KG | Approach switch | Sick | |||||
Machine power | 1.5KW | Button switch | Schneider | |||||
Voltage | 220-240v 50Hz | safety device | film carriage bottom safety sensor | |||||
Machine weight | 620KG | Certificate | CE | |||||
Machine size | 2710*1650*2720mm(L*W*H) | Optional device | remote control |
Product Introduction
Model: XQ-X0Z Prevent Stretch Pallet Wrapping Machine 25-30 pallet/h for Carton
