20-30 Pallet/H Fully Automatic Pallet Wrapping Machine 1500kg Pallet Stretch Machine

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 60 set/ month
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-X1

Detail Information

Name: Pallet Wrapping Machine With Ramp Optional Packing Mode: Automatic Wrapping
Pre-stretch Ratio: 200% (1m Stretch To 3m) Voltage: 220-240V 50Hz
Speed: 20-30 Pallet/h Max Loading Weight: 1500kg
Film Cutting Mode: Automatic Film Fix Mode: Automatic
Optional: Ramp, Weighing Application: Milk Powder, Toys
High Light:

20 pallet/h fully automatic pallet wrapping machine

,

30 pallet/h fully automatic pallet wrapping machine

,

1500kg pallet stretch machine

Product Description

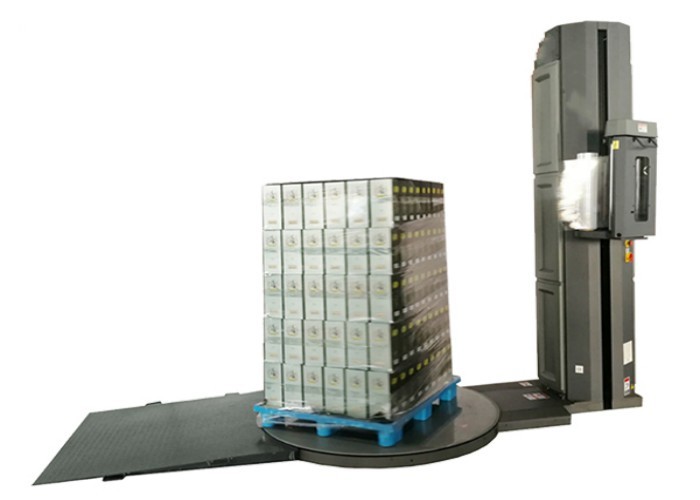

Fully Automatic 20-30 pallet/h Standard Pallet Wrapping Machine with Ramp Optional



Pallet Wrapping Machine Introduction



Stretch wrapping loads keeps them from moving and shifting during transportation which is a major source of damage. There are certainly other ways for loads to be damaged during shipment, but stretch wrapping provides a measure of protection that increases the odds of “as made” condition arrival.



Technical Parameter



Load weight Maximum 1500KG stop at original Included
Load diagonal dimension  1753mm Pallet jack detective sensor Included
Pallet size 1650mm turntable bake motor Included
Turntable speed 3-12 RPM/min Speed Adjustable Included
Packing height Maximum 2350mm Pallet grip system optional
Turntable size 1650mm(1800mm /optional) Measure height Automatic (black/blue color optional)
Pre-stretch rate 200%(1m stretch to 3m) Wrapping force Adjustable
Up&down speed 1.5 ~5.5 m/mins Product Memory Simple and Multilayer Mode
Wrapping speed 20-30 pallet/h Automatic cut film Have(pallet grip function or Auto cut film fucntion Alternatives)
Film Width 500mm(750mm optional) Fix film on pallet automatic
Film diameter 250mm PLC SIEMENS
Film paper Core 76 mm (50 mm optional) Inverter SIEMENS
Film weight Maximum 15KG Touch screen SIEMENS
Machine power 1.5KW Sensor brand SICK (Germany Brand)
Voltage 220-240v 50Hz safety device film carriage bottom safety sensor
Machine weight 750KG Certificate CE
Machine size 2763*1650*2747mm(L*W*H) Optional device ramp, weighing



Product Introduction



Model: XQ-X1 Fully Automatic 20-30 pallet/h Standard Pallet Wrapping Machine with Ramp Optional



  • Avoid the traditional winding machine due to different forces at each point: carton corner concave, product damage, so as to ensure that any shape of the product can be easily packaged.
  • After tray packaging, X1 intelligent pallet wrapping machine will automatically cut the film, without any manual use of tools to cut the film.
  • Automatic spring anti-drop device, the safety device under the film frame can protect the operator's head.
  • When the equipment needs to be adjusted during operation, an alarm will be automatically issued to remind the staff to deal with it in time.

Details

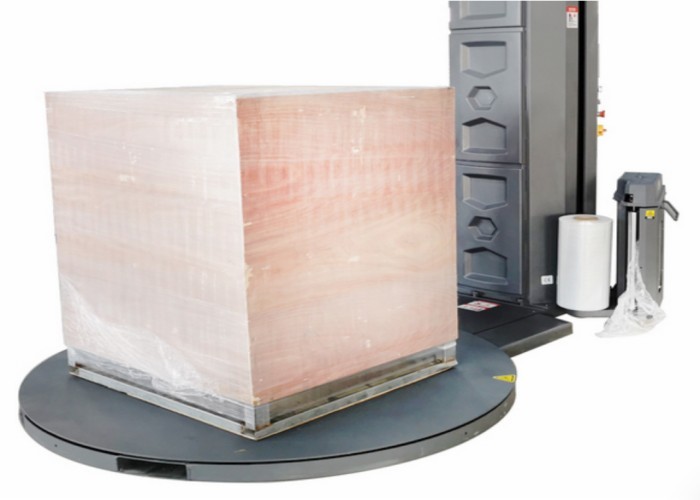

20-30 Pallet/H Fully Automatic Pallet Wrapping Machine 1500kg Pallet Stretch Machine 0
