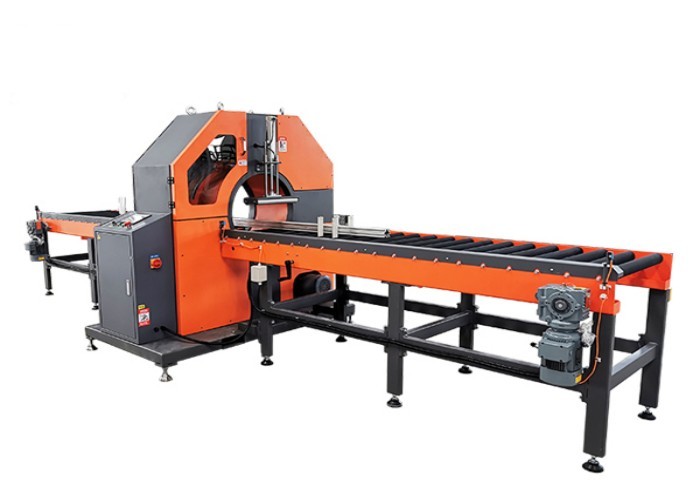

30rpm Pneumatic Horizontal Pallet Wrapper 1500kg Stretch Machine

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 60 set/ month
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-S600

Detail Information

Name: Horizontal Pallet Wrapping Machine Packing Mode: Automatic Wrapping
Pre-stretch Ratio: 200% Voltage: 110/220V
Speed: 30-40 Pallet/h Max Loading Weight: 1500kg
Film Cutting Mode: Automatic Film Fix Mode: Automatic
Optional: Ramp, Weighing Application: Juice, Cooking Oil
High Light:

30rpm horizontal pallet wrapper


Pneumatic horizontal pallet wrapper


1500kg pallet stretch wrapping machine

Product Description

XQ-X200 Fully Automatic Pneumatic Clamping Film Pallet Wrapping Machine

XQ-S600 Horizontal Pallet Wrapping Machine Pallet Wrapper 0-30RPM


Pallet Wrapping Machine Introduction


The automatic stretch wrap machine must hold the leading edge (tail) of stretch film to allow the start of the stretch wrapping cycle without the need of an operator to attach the stretch film to the load. The pallet wrapper must wrap the product based on the pallet wrapping parameters that the operator has set on the stretch wrapper control panel.


Stretch wrapping machines pull the stretch film around the product and seals the edges. It is used when the product needs to be held together tightly for the purpose of transportation.


Technical Parameter


Item Specificaion Special Requirements Notes
Packing dimension 0.5*0.5m(W*H) 800mm(diameter)
Circle Speed 0-30RPM
Circle Diameter 800mm
Max Loading 500kg
Output Height 800mm
Power 1.5kw
Loading/cutting Film Automatic
Film Material LLDPE
Film Width 250mm Input System Width 700mm
Input Feeding System 7m roller conveyor Max load 50kg/m
Output Feeding System 7m roller conveyor
Guide Rail Yes
Control Mode PLC
Safe Door Yes
Machine Weight 600kg
Machine Dimension 14950*2460*2550mm
Voltage 380/220/110v 50/60Hz 1P/3P


Product Introduction


Model: XQ-S600 Horizontal Pallet Wrapping Machine Pallet Wrapper 0-30RPM


1. Using rotary bearing ring system, low noise, small vibration, no maintenance

2. The S600 is equipped with two film holders, which increases the packing speed by 50%, and adopts a fully automatic film cutting system.

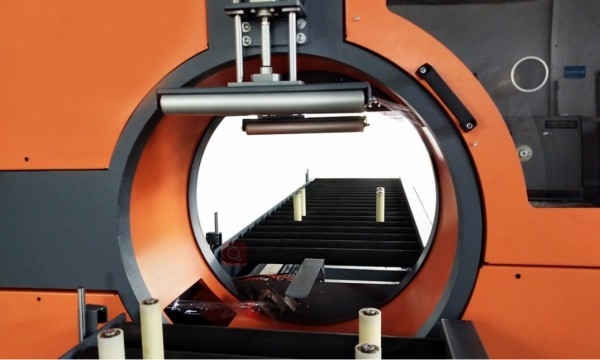

3. The Airtac cylinder block of S600 winding machine uses double rollers to hold the top of the product to ensure the stability of the product when entering the machine.

4. S600 ADOPTS SUS conveyor, EACH conveyor is equipped with emergency stop device, feed guide device can be adjusted according to different product size.




30rpm Pneumatic Horizontal Pallet Wrapper 1500kg Stretch Machine 0


30rpm Pneumatic Horizontal Pallet Wrapper 1500kg Stretch Machine 1
