25-30 Pallet/H Semi Automatic Pallet Wrapping Machine 10rpm Pre Stretch

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 60 set/ month
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-X0P

Detail Information

Name: Pre-stretch Pallet Wrapping Machine Packing Mode: Automatic Wrapping
Power: 1kw Voltage: 220V 50Hz
Speed: 25-30 Pallet/h Max Loading Weight: 1500/2000/2500kg
Film Cutting Mode: Manual Film Fix Mode: Manual
Optional: Remote Control Application: Wooden Case, Carton, Container
High Light:

25 pallet/h semi automatic pallet wrapping machine

,

30 pallet/h semi automatic pallet wrapping machine

,

10rpm pre stretch wrapping machine

Product Description

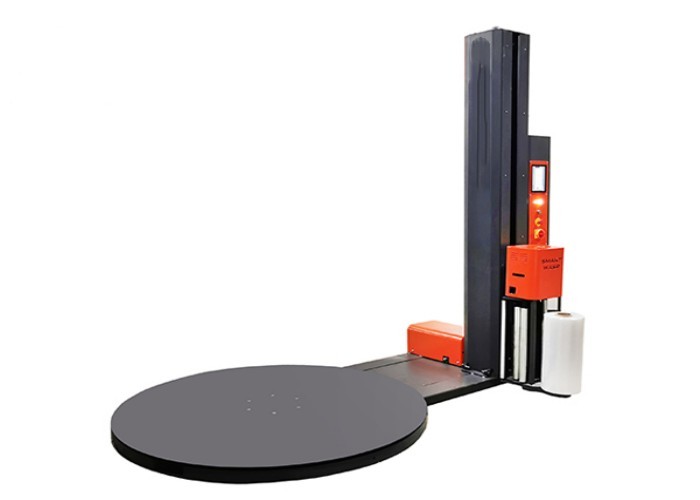

XQ-X0P Semi-automatic Pre-stretch Pallet Wrapping Machine 25-30 pallet/h



Pallet Wrapping Machine Introduction



Pallet wrapping machines improve the productivity, decrease the consumption of consumables, improve the appearance of your goods, save on labour costs, and reduce the risk of injury. They also come in many configurations that can be modified to suit the individual needs of your business.



It can be used for the volume and weight of the larger parcel wrapped goods and products, the goods will not scattered and collapse phenomenon, the goods can have dust, moistureproof, prevent damage effect, is widely used in food, logistics, printing, paper making, chemical industry and related industries, such as compact package a wrap film products, beautiful appearance.



Technical Parameter



Loading weight 1500/2000/2500KG Stop at original Included
Turntable speed 3-10 RPM/min Automatic alarm  Included
Packing height 2000/2400/2800mm Slow stop slow start Included
Column height 2400/2800/3200mm Turntable lock Included
Up&down speed 1.5 ~5.5 m/mins Tablet height 86.7mm
Pre-stretch ratio 100%/200%/300%
Wrapping speed 25-30 pallet/h  Automatic cut film manual
Film Width 500mm(750mm optional) Fix film on pallet manual
Film diameter 250mm PLC X-line
Film paper Core 76 mm (50 mm optional) Inverter JSK/X-line
Turntable size 1500/1650/1800/2000/2200/2400mm Approach switch Sick
Machine power 1.4KW Button switch Schneider
Voltage 220-240v 50Hz safety device film carriage bottom safety sensor
Machine weight 620KG Certificate CE
Machine size 2335*1500*2400mm(L*W*H) Optional device remote control



Product Introduction



Model: XQ-X0P Semi-automatic Pre-stretch Pallet Wrapping Machine 25-30 pallet/h

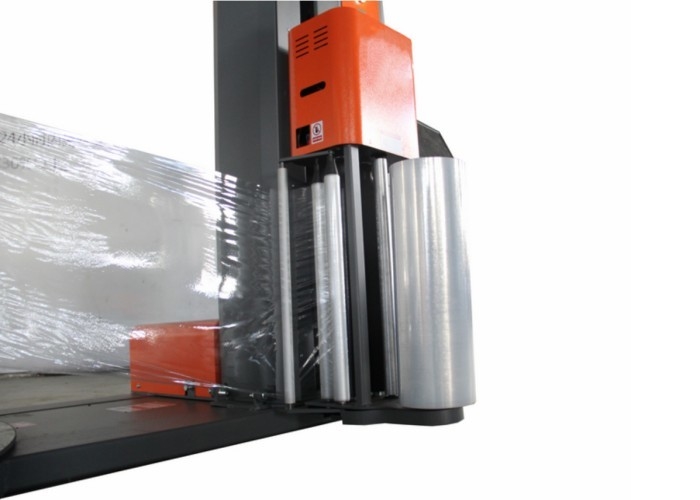

1. Up to 300% pre-stretch ratio, can give full play to the characteristics of the film, greatly saving the use of packaging film.

2. Anti-fall system, no film broken film alarm, safety through film system, pressure and injury prevention device at the bottom.

3. Built-in remote maintenance system, troubleshooting guidance function, all the pallet wrapping machine unified operating system, so that the use of more convenient, easier maintenance



Details



25-30 Pallet/H Semi Automatic Pallet Wrapping Machine 10rpm Pre Stretch 0
