Pneumatic Fully Automatic Stretch Wrapper 30-40 Pallet/H Clamping Film Wrapper Machine

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 60 set/ month
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-X200

Detail Information

Name: Pneumatic Clamping Film Pallet Wrapping Machine Packing Mode: Automatic Wrapping
Pre-stretch Ratio: 200% Voltage: 110/220V
Speed: 30-40 Pallet/h Max Loading Weight: 1500kg
Film Cutting Mode: Automatic Film Fix Mode: Automatic
Optional: Ramp, Weighing Application: Juice, Cooking Oil
High Light:

Pneumatic fully automatic stretch wrapper


30 pallet/h fully automatic stretch wrapper


clamping film wrapper machine

Product Description

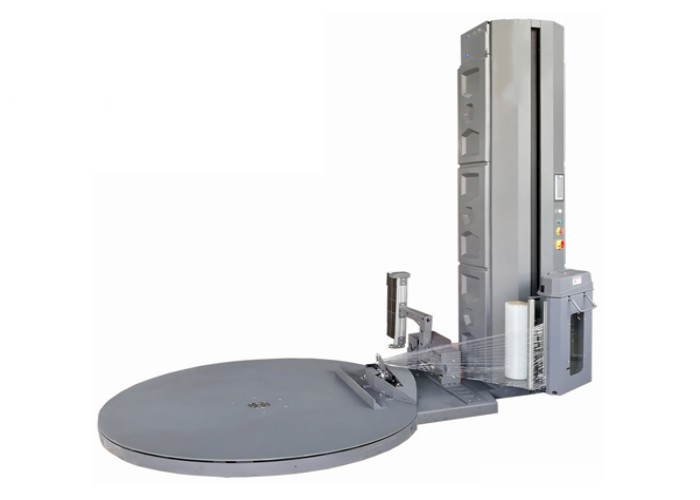

XQ-X200 Fully Automatic Pneumatic Clamping Film Pallet Wrapping Machine


Pallet Wrapping Machine Introduction


A Pallet Wrapping Machine is a device used to wrap the content of a pallet in foil, to prepare and secure it for transport. This is an example of goods on a pallet wrapped with foil for protection.


Pallet wrapping machine is an equipment used for automatically wrapping the pallet goods, using PLC program control, easy to operate. It features height detection by photo sensor. For goods weight less than 250kg, there is a protect plate in the machine which will be placed on the top of goods to protect the goods.


Technical Parameter


Load weight Maximum 1500KG stop at original Included
Load diagonal dimension  1753mm Pallet jack detective sensor Included
Pallet size 1650mm turntable bake motor Included
Turntable speed 3-12 RPM/min(can be adjusted) Speed Adjustable Included
Packing height Maximum 2350mm Pallet grip system Included
Turntable size 1650mm(1800mm /optional) Measure height Automatic (black/blue color optional)
Pre-stretch rate 300%(1m stretch to 3m) Wrapping force Adjustable
Up&down speed 1.5 ~5.5 m/mins Product Memory Simple and Multilayer Mode
Wrapping speed 20 - 25 load/h Automatic cut film Have(pallet grip function or Auto cut film fucntion Alternatives)
Film Width 500mm(750mm optional) Fix film on pallet automatic
Film diameter 250mm PLC SIEMENS
Film paper Core 76 mm (50 mm optional) Inverter SIEMENS
Film weight Maximum 15KG Touch screen SIEMENS
Machine power 1.5KW Sensor brand SICK (Germany Brand)
Voltage 110/220v 50Hz safety device film carriage bottom safety sensor
Machine weight 750KG Certificate CE
Machine size 2710*1650*2740mm(L*W*H) Optional device ramp, weighing


Product Introduction


Model: XQ-X200 Fully Automatic Pneumatic Clamping Film Pallet Wrapping Machine


1. Avoid the traditional winding machine due to different forces at each point: carton corner concave, product damage, so as to ensure that any shape of the product can be easily packaged.

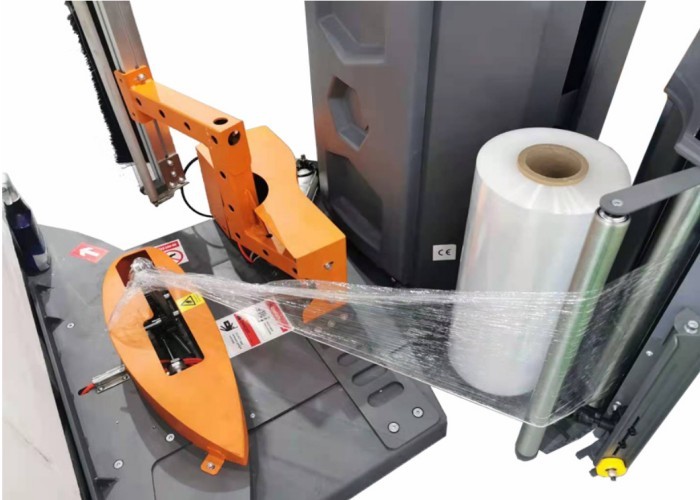

2. Automatic rope making technology can roll up a coil of film rope and attach it to the tray, which can hold the goods. This ensures that the goods do not slip off the pallets in transit.

3. X200 automatic intelligent winding machine adopts the newly designed upper film cutting system. After the tray is packed, the tail of the winding film will be completely sealed on the tray.

4. When the equipment needs to be adjusted during operation, an alarm will be automatically issued to remind the staff to deal with it in time.
