Medicine Flow Wrap Packing Machine 40-70 Micro Blister Packaging

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 50 set/ month
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-CT350X

Detail Information

Name: Blister Board Pillow Type Packing Machine Speed: 40-200 Bags/min
Pouch Size: (65-330) * (50-180) * (3-55) Mm Film Thickness: 40-70 Micro
Film Width: ≤350mm Voltage: 220V Single Phase
Power: 2.6kw Optional: Ink-jet Printer, Automatic Feeding Device
Available Film: OPP/CPP/PE Application: Rubber Gloves, Surgical Mask
High Light:

medicine flow wrap packing machine

,

40 micro flow wrap packing machine

,

70 micro blister packaging machine

Product Description

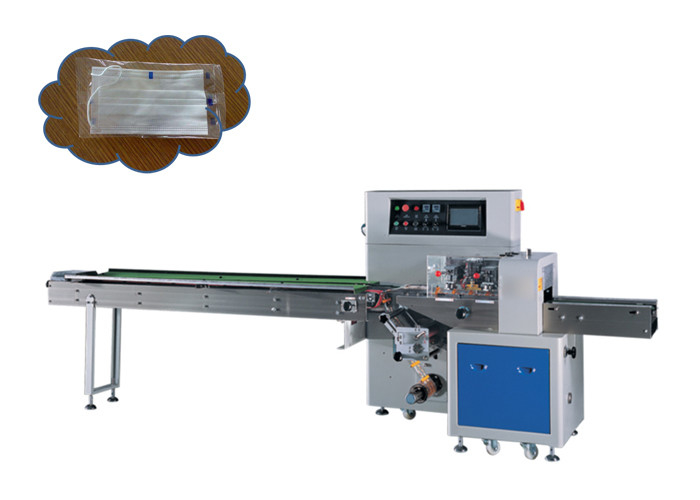

Automatic Blister Board Flow Wrap Packing Machine Pillow Type Packing Machine for Medical Industry



Pillow Type Packing Machine Introduction



Flow wrap machine is very fast in carrying out its function as it wraps each package in about 2 seconds. It is, therefore, able to complete the task in 75 percent or less as compared to the use of manual labor. Overwrap films need to seal to themselves and the other side of the film. There are zillons of products that are flow-wrapped,like biscuit, candy bar, soap, chocolate,etc. Products for flow wrapping do not need to have a flat bottom, flat sides or a minimum height to be wrapped. So the flow wrap machine is with wide application.



Technical Parameter



Model XQ-CT350X
Width of film ≤350mm
Thickness of film 40-70um
Dimension of film roll OUTER DIAMETERΦ ≤300mm, INNER DIAMETER≤ Φ75mm
Pouch size (65-330)*(50-180)*(3-55) mm(L*W*H)
Speed 40-200 bags/min
Power 220V,50HZ, 2.6KW
Outer dimensions 3770 * 720 *1450mm(L*W*H)
Gross weight 450kg
Optional device printer, gas charging device, feeder, tidier



Pillow Type Packing Machine Features



Model: XQ-CT350X Automatic Blister Board Flow Wrap Packing Machine Pillow Type Packing Machine for Medical Industry



A) Application

  • Food: instant noodles, biscuits, chocolates, candies, ice-cream, vegetables and etc;
  • Chemistry: adhesive tapes, soaps, medicines, cartons, trays and etc;
  • Hotel commodity: facial tissues, knives and folks, shoe brushes, disposable toothpastes and toothbrushes.
  • Medical industry: rubber gloves, surgical mask, blister board, tablet board
  • Stationery: correction tape, ruler, eraser

B) Features:



1. The control unit is composed of servo motor, servo driver and large size color touch screen, with high control precision and intelligent control system

2. Automatic feeding, automatic feeding, up and down mesh, cylinder heating manipulator traction, reliable performance, convenient operation, high level of automation, the machine adopts PLC automatic control, frequency conversion stepless speed regulation, can be equipped with cursor tracking version sealing configuration.
3. The surface is sprayed with plastic, soft color, hard texture, elegant grade, and wear resistance. Crash-resistant, suitable for long term use under harsh, harsh conditions
4. Servo control is adopted to improve the control accuracy and the cost performance of the product;
5. Optional equipment: coding machine, automatic hole punching machine and other accessories;
6. A variety of sealing forms: net grain, straight grain, vertical grain, pattern, etc.
7. A variety of cutting forms: straight, corrugated, connected shape, etc.;
8. Locate and stop (to prevent hot film)
9. Folding device can be added according to user needs.

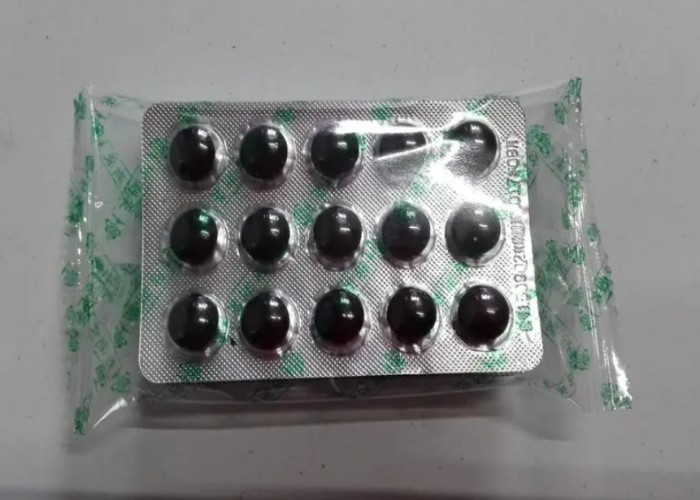

Samples



Medicine Flow Wrap Packing Machine 40-70 Micro Blister Packaging 0
