Dried Noodles Pillow Bag Packaging Machine 25-180 Bags/Min Blister Packing For Food Industry

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 50 set/ month
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-SZ180

Detail Information

Name: Fine Dried Noodles Pillow Type Packing Machine Speed: 25-180 Bags/min
Pouch Size: (130-350) * (50-200) * (3-70) Mm Film Thickness: 40-70 Micro
Film Width: ≤400mm Voltage: 220V 50Hz Single Phase
Power: 5.5kw Optional: Air Charging System, Ink-jet Printer
Available Film: OPP/CPP/PE Application: Vegetables, Biscuits, Cake, Puffed Food
High Light:

Dried Noodles pillow bag packaging machine


25 bags min pillow bag packaging machine


180 bags min blister packing machine

Product Description

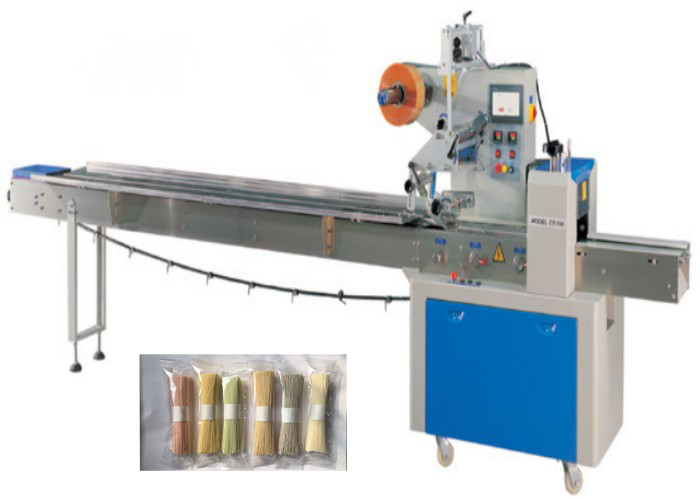

Fine Dried Noodles Pillow Type Packing Machine for Food Industry


Pillow Type Packing Machine Introduction


Flow wrap machines are a type of equipment that ensures high-speed rapping to a wide range of products in large quantities. The flow wrap machine tends to seal products in either envelope or pillow form of a foil or plastic film. This makes it possible to increase the shelf life of the products and offer them protection from any form of damage.


Technical Parameter


Item Remark
Packaging film OPP/CPP/PE etc.; must used in roll, outer diameter≤300mm, inner diameter is 75mm, the surface of the film must be unknit, no wave on the edge of the film, the color mark must evidently different to the color of the film.
Model SZ180
Bag size (130-350)*(50-200)*(3-70) mm (L*W*H)
Speed 25-180 bag/min
Film thickness 40-70 micro
Max film width 400MM
Max outer diameter 300MM
Voltage 220V, 50HZ
Power 5.5KW
Machine size 4000*950*1600 mm(L*W*H)


Pillow Type Packing Machine Features


Model: XQ-SZ180 Fine Dried Noodles Pillow Type Packing Machine for Food Industry


A) Range of Packing: Applicable for packing various solid regular objects.

  • Food: instant noodles, biscuits, chocolates, candies, ice-cream, vegetables and etc;
  • Chemistry: adhesive tapes, soaps, medicines, cartons, trays and etc;
  • Hotel commodity: facial tissues, knives and folks, shoe brushes, disposable toothpastes and toothbrushes.

B) Features:

① The key parts of machine are adopted of stainless steel, in accordance with food QS and medicine GMP health requirements.

② Dual variable frequency control, packing goods faster, convenient with superior quality.

③ The control unit is composed of servo motor, servo driver and large size color touch screen, with high control precision and intelligent control system.

④ Temperature is controlled by PID intelligence independently and steadily which is more suitable to various packaging material.

⑤ Color touch-screen display, machine can be turned off by position, fault is self-diagnosed, fault is display clearly.

⑥ Servo control is adopted to improve the control accuracy and the cost performance of the product;

⑦    Optional equipment: coding machine, automatic hole punching machine and other accessories;


Machine Principle


Dried Noodles Pillow Bag Packaging Machine 25-180 Bags/Min Blister Packing For Food Industry 0
