OPP CE Pillow Type Packing Machine , Switch Pillow Wrapping Machine

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 50 set/ month
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-CT350X

Detail Information

Name: Pillow Type Packing Machine For Switch Speed: 40-200pcs/min
Pouch Size: (65-330) * (50-180) * (3-55) Mm Film Thickness: 40-70 Micro
Film Width: ≤350mm Voltage: 220V 50Hz Single Phase
Power: 2.6kw Optional: Air Charging System, Ink-jet Printer
Available Film: OPP/CPP/PE Application: Hardware, Hotel Supplies
High Light:

OPP Pillow Type Packing Machine


CE Pillow Type Packing Machine


switch pillow wrapping machine

Product Description

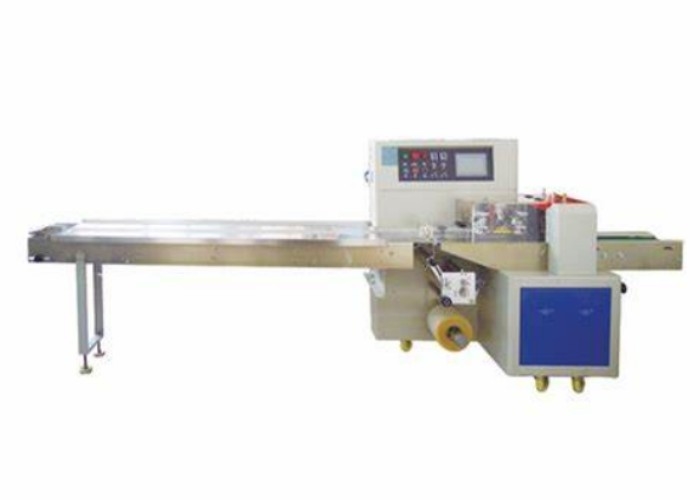

Bottom Feeding Film Automatic Pillow Type Packing Machine for Switch


Pillow Type Packing Machine Introduction


Flow wrap packaging machines offer a high speed, automated alternative to traditional bagging practices. Flow Wrap equipment is a perfect packaging solution for products packaging from speeds up to 70 packs per minute. Flow wrapping equipment is easy to change over from one packaging size to another.


Flow wrap machine is very fast in carrying out its function as it wraps each package in about 2 seconds. It is, therefore, able to complete the task in 75 percent or less as compared to the use of manual labor.


Technical Parameter


Model XQ-CT350X
Width of film ≤350mm
Thickness of film 40-70um
Dimension of film roll OUTER DIAMETERΦ ≤300mm ,INNER DIAMETER≤ Φ75mm
Pouch size (65-330)*(50-180)*(3-55) mm(L*W*H)
Speed 40-200 bags/min
Power 220V,50HZ, 2.6KW
Outer dimensions 3770 * 720 *1450mm(L*W*H)
Gross weight 450kg
Optional device printer, gas charging device, feeder, tidier


Pillow Type Packing Machine Features


Model: XQ-CT350X Bottom Feeding Film Automatic Pillow Type Packing Machine for Switch


A) Range of Packing: Applicable for packing various solid regular objects.

  • Food: instant noodles, biscuits, chocolates, candies, ice-cream, vegetables and etc;
  • Chemistry: adhesive tapes, soaps, medicines, cartons, trays and etc;
  • Hotel commodity: facial tissues, knives and folks, shoe brushes, disposable toothpastes and toothbrushes.
  • Tobacco: shisha
  • Medical industry: rubber gloves, surgical mask, blister board, tablet board
  • Toy: Plasticine

B) Features:

1. The key parts of the machine adopt stainless steel structure, in line with food QS and GMP health standards.

2. Double frequency conversion control, the bag length is set and cut, saving time and film.

3. High sensitivity electric eye automatic tracking, no manual adjustment after setting, sealing and cutting size and position are accurate, sealing firm and beautiful.

4. Automatic production counting, quantitative production, accurate packaging output.

5. Simple mechanical design and transmission system, more reliable work, more convenient maintenance.

6. It can be equipped with nitrogen or mixed gas and production date coding system according to user's product packaging requirements.

7. A variety of cutting forms: straight, corrugated, connected shape, etc.;
8. Locate and stop (to prevent hot film)
9. Folding device can be added according to user needs.


Machine Principle


OPP CE Pillow Type Packing Machine , Switch Pillow Wrapping Machine 0
