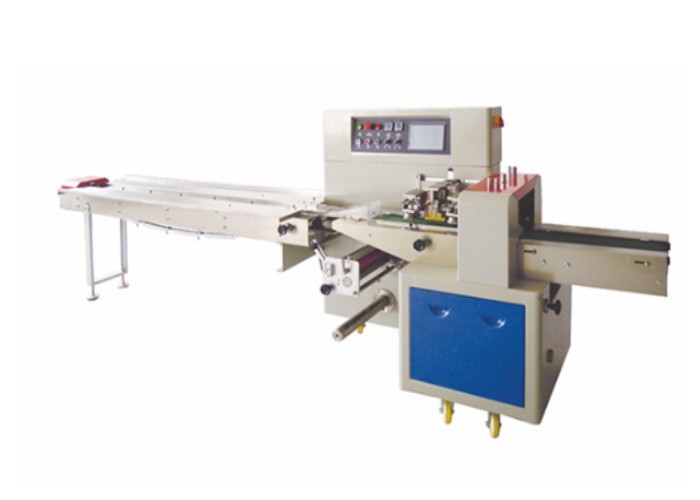

Chocolate 2.6kw Pillow Type Packing Machine Puffed Food Pouch

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 50 set/ month
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-CT350X

Detail Information

Name: Pillow Type Packing Machine Feeding Film From Bottom Speed: 40-200pcs/min
Pouch Size: (65-330) * (50-180) * (3-55) Mm Film Thickness: 40-70 Micro
Film Width: ≤350mm Voltage: 220V 50Hz Single Phase
Power: 2.6kw Optional: Air Charging System, Ink-jet Printer
Available Film: OPP/CPP/PE Application: Chocolate, Candies, Puffed Food
High Light:

chocolate Pillow Type Packing Machine


2.6kw Pillow Type Packing Machine


puffed food pouch packing machine

Product Description

Automatic Pillow Type Packing Machine Feeding Film from Bottom


Pillow Type Packing Machine Introduction


Flow wrap packaging machines offer a high speed, automated alternative to traditional bagging practices. Flow Wrap equipment is a perfect packaging solution for products packaging from speeds up to 70 packs per minute. Flow wrapping equipment is easy to change over from one packaging size to another.


Technical Parameter


Model XQ-CT350X
Width of film ≤350mm
Thickness of film 40-70um
Dimension of film roll 外径OUTER DIAMETERΦ ≤300mm ,内径INNER DIAMETER≤ Φ75mm
Pouch size (65-330)*(50-180)*(3-55) mm(L*W*H)
Speed 40-200包/分(bags/min)
Power 220V,50HZ, 2.6KW
Outer dimensions 3770 * 720 *1450mm(L*W*H)
Gross weight 450kg
Optional device printer, gas charging device, feeder, tidier


Pillow Type Packing Machine Features


Model: XQ-CT350X Automatic Pillow Type Packing Machine Feeding Film from Bottom


A) Range of Packing: Applicable for packing various solid regular objects.

  • Food: instant noodles, biscuits, chocolates, candies, ice-cream, vegetables and etc;
  • Chemistry: adhesive tapes, soaps, medicines, cartons, trays and etc;
  • Hotel commodity: facial tissues, knives and folks, shoe brushes, disposable toothpastes and toothbrushes.
  • Tobacco: shisha
  • Medical industry: rubber gloves, surgical mask, blister board, tablet board

B) Features:

1. The key parts of the machine adopt stainless steel structure, in line with food QS and GMP health standards.

2. Double frequency conversion control, the bag length is set and cut, saving time and film.

3. High sensitivity electric eye automatic tracking, no manual adjustment after setting, sealing and cutting size and position are accurate, sealing firm and beautiful.

4 temperature independent PID intelligent control, temperature control is stable, better suitable for all kinds of packaging materials.

5. Touch screen display, positioning stop, fault automatic diagnosis function, display at a glance.

6. Automatic production counting, quantitative production, accurate packaging output.

7. Simple mechanical design and transmission system, more reliable work, more convenient maintenance.

8. It can be equipped with nitrogen or mixed gas and production date coding system according to user's product packaging requirements.

9. A variety of cutting forms: straight, corrugated, connected shape, etc.;
10. Locate and stop (to prevent hot film)
11. Folding device can be added according to user needs.


Machine Principle


Chocolate 2.6kw Pillow Type Packing Machine Puffed Food Pouch 0
