Rubber Gloves 50hz Pillow Type Packing Machine Medical Flow Wrap Packaging

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 50 set/ month
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-SZ180

Detail Information

Name: Rubber Gloves Pillow Type Packing Machine Speed: 25-180 Bags/min
Pouch Size: (130-350) * (50-200) * (3-70) Mm Film Thickness: 40-70 Micro
Film Width: ≤400mm Voltage: 220V 50Hz Single Phase
Power: 5.5kw Optional: Hole Punching Device, Ink-jet Printer
Available Film: OPP/CPP/PE Application: Capsule, Surgical Mask
High Light:

rubber gloves Pillow Type Packing Machine

,

50hz Pillow Type Packing Machine

,

medical flow wrap packaging machine

Product Description

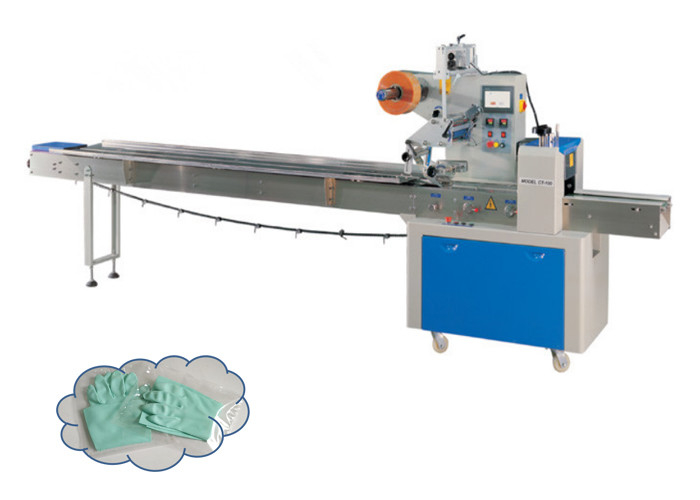

Rubber Gloves Flow Wrap Packing Machine Pillow Type Packing Machine for Medical Industry



Pillow Type Packing Machine Introduction



The SICI AUTO horizontal flow wrap packing machines are engineered to fit most every budget, space constraint, production need and package type. Flow wrapping is a horizontal packaging process in which product enters the machinery and is wrapped in clear or printed film. It has a quite wide range of applications and it is suitable for various food and non-food products, such as chocolate, bread, biscuit, face mask, fruits, vegetables, etc.



Technical Parameter



Item Remark
Packaging film OPP/CPP/PE etc.; must used in roll, outer diameter≤300mm, inner diameter is 75mm, the surface of the film must be unknit, no wave on the edge of the film, the color mark must evidently different to the color of the film.
Model SZ180
Bag size (130-350)*(50-200)*(3-70) mm (L*W*H)
Speed 25-180 bag/min
Film thickness 40-70 micro
Max film width 400MM
Max outer diameter 300MM
Voltage 220V, 50HZ
Power 5.5KW
Machine size 4000*950*1600 mm(L*W*H)



Pillow Type Packing Machine Features



Model: XQ-SZ180 Rubber Gloves Flow Wrap Packing Machine Pillow Type Packing Machine for Medical Industry



A) Range of Packing: Applicable for packing various solid regular objects.

  • Food: instant noodles, biscuits, chocolates, candies, ice-cream, vegetables and etc;
  • Chemistry: adhesive tapes, soaps, medicines, cartons, trays and etc;
  • Hotel commodity: facial tissues, knives and folks, shoe brushes, disposable toothpastes and toothbrushes.

B) Features:

① The key parts of machine are adopted of stainless steel, in accordance with food QS and medicine GMP health requirements.

② Large energy, high strength, compact structure, stable operation, easy maintenance, long service life.

③ High sensitive electronic eye tracing system, after setting, the machine is no need to adjust by hand, the cutting position is accuracy, the seal is firm and beauty.

④ Temperature is controlled by PID intelligence independently and steadily which is more suitable to various packaging material.

⑤ Color touch-screen display, machine can be turned off by position, fault is self-diagnosed, fault is display clearly.

⑥ Servo control is adopted to improve the control accuracy and the cost performance of the product;



Machine Principle



Rubber Gloves 50hz Pillow Type Packing Machine Medical Flow Wrap Packaging 0
