40-200 Bags/Min Pillow Type Packing Machine 50hz Pouch Filling
Contact Person : SICI AUTO
Phone Number : 18921338139
WhatsApp : +8618921338139
Detail Information |
|||
Name: | Plasticine Pillow Type Packing Machine | Speed: | 40-200 Bags/min |
---|---|---|---|
Pouch Size: | (65-330) * (50-180) * (3-55) Mm | Film Thickness: | 40-70 Micro |
Film Width: | ≤350mm | Voltage: | 220V 50Hz Single Phase |
Power: | 2.6kw | Optional: | Air Charging System, Automatic Cutting Device |
Available Film: | OPP/CPP/PE | Application: | Switch, Hardware |
High Light: | Plasticine pillow pack packaging machine,toy pillow pack packaging machine,200 bags min flow wrap machine |
Product Description

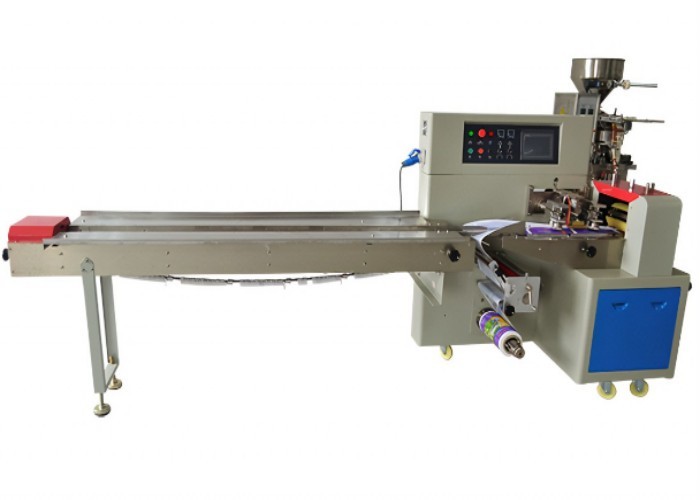

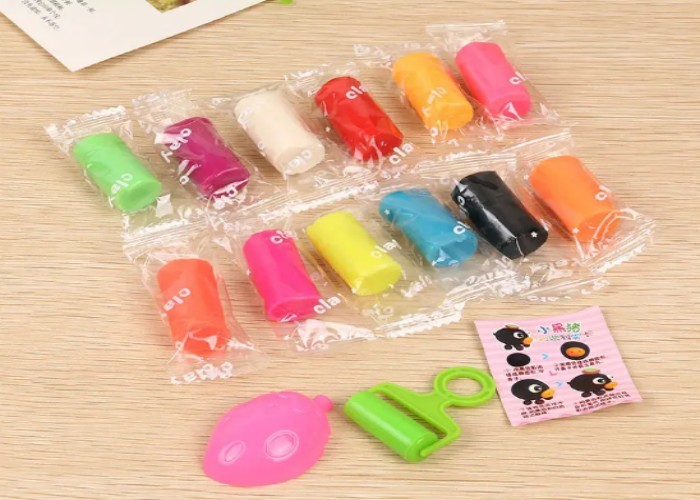

Plasticine Automatic Flow Wrap Packing Machine Pillow Type Packing Machine for Toy
Pillow Type Packing Machine Introduction
Flow wrap packaging machines offer a high speed, automated alternative to traditional bagging practices. Flow Wrap equipment is a perfect packaging solution for products packaging from speeds up to 70 packs per minute. Flow wrapping equipment is easy to change over from one packaging size to another. Pillow TYPE PACKING machine is suitable FOR BISCUIT, RICE cake, snow cake, egg yolk pie, chocolate, bread, instant noodles, moon cake, food, medicine, daily necessities, hardware, industrial parts, paper box or tray and other types of regular object packaging.
Technical Parameter
Model | XQ-CT350X |
Width of film | ≤350mm |
Thickness of film | 40-70um |
Dimension of film roll | OUTER DIAMETERΦ ≤300mm, INNER DIAMETER≤ Φ75mm |
Pouch size | (65-330)*(50-180)*(3-55) mm(L*W*H) |
Speed | 40-200 bags/min |
Power | 220V,50HZ, 2.6KW |
Outer dimensions | 3770 * 720 *1450mm(L*W*H) |
Gross weight | 450kg |
Optional device | printer, gas charging device, feeder, tidier |
Pillow Type Packing Machine Features
Model: XQ-CT350X Plasticine Automatic Flow Wrap Packing Machine Pillow Type Packing Machine for Toy
A) Range of Packing: Applicable for packing various solid regular objects.
B) Features:
1. The key parts of the machine adopt stainless steel structure, in line with food QS and GMP health standards.
2. Double frequency conversion control, the bag length is set and cut, saving time and film.
3. High sensitivity electric eye automatic tracking, no manual adjustment after setting, sealing and cutting size and position are accurate, sealing firm and beautiful.
4 temperature independent PID intelligent control, temperature control is stable, better suitable for all kinds of packaging materials.
5. Touch screen display, positioning stop, fault automatic diagnosis function, display at a glance.
6. Automatic production counting, quantitative production, accurate packaging output.
7. Simple mechanical design and transmission system, more reliable work, more convenient maintenance.
8. It can be equipped with nitrogen or mixed gas and production date coding system according to user's product packaging requirements.
9. A variety of cutting forms: straight, corrugated, connected shape, etc.;
10. Locate and stop (to prevent hot film)
11. Folding device can be added according to user needs.
Machine Principle
