Surgical Mask 50hz Pillow Pouch Packaging Machine , 180 Bags/Min Automatic Pillow Packing Machine

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 50 set/ month
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-SZ180

Detail Information

Name: Surgical Mask Pillow Type Packing Machine Speed: 25-180 Bags/min
Pouch Size: (130-350) * (50-200) * (3-70) Mm Film Thickness: 40-70 Micro
Film Width: ≤400mm Voltage: 220V 50Hz
Power: 5.5kw Optional: Air-charging Device, Ink-jet Printer
Available Film: OPP/CPP/PE Application: Capsule, Surgical Mask
High Light:

Surgical Mask pillow pouch packaging machine

,

50hz pillow pouch packaging machine

,

180 bags min automatic pillow packing machine

Product Description

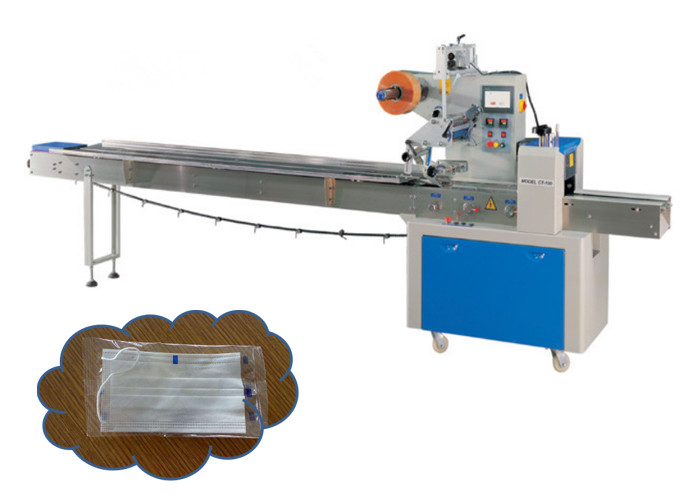

Surgical Mask Flow Wrapping Machine Pillow Type Packing Machine for Medical Industry



Pillow Type Packing Machine Introduction



The SICI AUTO horizontal flow wrap packing machines are engineered to fit most every budget, space constraint, production need and package type. Flow wrapping is a horizontal packaging process in which product enters the machinery and is wrapped in clear or printed film.



The process starts with a cylindrical roll of film. The flow wrapping machine will transfer the film from the roll and through to the forming collar (sometimes referred to as tube or plow). At the same time, a conveyor has lined up individual products for wrapping.



Technical Parameter



Item Remark
Packaging film OPP/CPP/PE etc.; must used in roll, outer diameter≤300mm, inner diameter is 75mm, the surface of the film must be unknit, no wave on the edge of the film, the color mark must evidently different to the color of the film.
Model SZ180
Bag size (130-350)*(50-200)*(3-70) mm (L*W*H)
Speed 25-180 bag/min
Film thickness 40-70 micro
Max film width 400MM
Max outer diameter 300MM
Voltage 220V, 50HZ
Power 5.5KW
Machine size 4000*950*1600 mm(L*W*H)



Pillow Type Packing Machine Features



Model: XQ-SZ180 Surgical Mask Flow Wrapping Machine Pillow Type Packing Machine for Medical Industry



A) Range of Packing: Applicable for packing various solid regular objects.

  • Food: instant noodles, biscuits, chocolates, candies, ice-cream, vegetables and etc;
  • Chemistry: adhesive tapes, soaps, medicines, cartons, trays and etc;
  • Hotel commodity: facial tissues, knives and folks, shoe brushes, disposable toothpastes and toothbrushes.
  • Medical industry: rubber gloves, surgical mask, tablet board, blister board and etc;

B) Features:

① The key parts of machine are adopted of stainless steel, in accordance with food QS and medicine GMP health requirements.

② Large energy, high strength, compact structure, stable operation, easy maintenance, long service life.

③ High sensitive electronic eye tracing system, after setting, the machine is no need to adjust by hand, the cutting position is accuracy, the seal is firm and beauty.

④ Temperature is controlled by PID intelligence independently and steadily which is more suitable to various packaging material.

⑤ Color touch-screen display, machine can be turned off by position, fault is self-diagnosed, fault is display clearly.

⑥ Counting automatically, packaging production’s counting is accuracy.

⑦ Machine’s design and the convey system is simple; the work is more reliable which is more convenience to maintain.



Machine Principle



Surgical Mask 50hz Pillow Pouch Packaging Machine , 180 Bags/Min Automatic Pillow Packing Machine 0
