40-200 Bags/Min Pillow Type Packing Machine 50hz Pouch Filling
Contact Person : SICI AUTO
Phone Number : 18921338139
WhatsApp : +8618921338139
Detail Information |
|||
Name: | Automatic Vegetables Pillow Type Packing Machine | Speed: | 25-180 Bags/min |
---|---|---|---|
Pouch Size: | (130-350) * (50-200) * (3-70) Mm | Film Thickness: | 40-70 Micro |
Film Width: | ≤400mm | Voltage: | 220V 50Hz Single Phase |
Power: | 5.5kw | Optional: | Air Charging System, Hole Punching Device |
Available Film: | OPP/CPP/PE | Application: | Capsule, Rubber Gloves, Surgical Mask |
Highlight: | Vegetables Pillow Type Packing Machine,220v Pillow Type Packing Machine,50hz pillow pouch machine |
Product Description

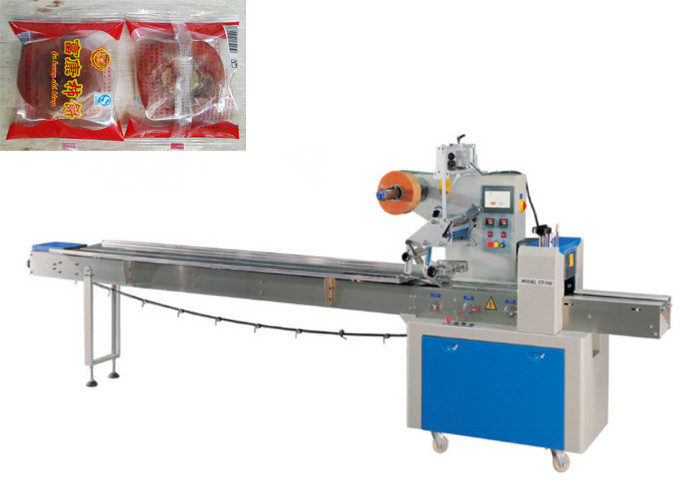

Automatic Vegetables Pillow Pouch Packing Machine Pillow Type Packing Machine
Pillow Type Packing Machine Introduction
The SICI AUTO horizontal flow pack machines are engineered to fit most every budget, space constraint, production need and package type. Flow wrapping is a horizontal packaging process in which product enters the machinery and is wrapped in clear or printed film.
Technical Parameter
Item | Remark | ||
Packaging film | OPP/CPP/PE etc.; must used in roll, outer diameter≤300mm, inner diameter is 75mm, the surface of the film must be unknit, no wave on the edge of the film, the color mark must evidently different to the color of the film. | ||
Model | SZ180 | ||
Bag size | (130-350)*(50-200)*(3-70) mm (L*W*H) | ||
Speed | 25-180 bag/min | ||
Film thickness | 40-70 micro | ||
Max film width | 400MM | ||
Max outer diameter | 300MM | ||
Voltage | 220V, 50HZ | ||
Power | 5.5KW | ||
Machine size | 4000*950*1600 mm(L*W*H) |
Pillow Type Packing Machine Features
Model: XQ-SZ180 Automatic Vegetables Pillow Pouch Packing Machine Pillow Type Packing Machine
A) Range of Packing: Applicable for packing various solid regular objects.
B) Features:
① The key parts of machine are adopted of stainless steel, in accordance with food QS and medicine GMP health requirements.
② Dual variable frequency control, packing goods faster, convenient with superior quality.
③ High sensitive electronic eye tracing system, after setting, the machine is no need to adjust by hand, the cutting position is accuracy, the seal is firm and beauty.
④ Temperature is controlled by PID intelligence independently and steadily which is more suitable to various packaging material.
⑤ Color touch-screen display, machine can be turned off by position, fault is self-diagnosed, fault is display clearly.
⑥ Servo control is adopted to improve the control accuracy and the cost performance of the product;
Machine Principle
