Capsule Blister Automatic Overwrapping Machine Servo Feeding

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 30 set/month
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-SW300

Detail Information

Name: Capsule/blister Box Semi-Automatic Overwrapping Machine Speed: 15-20pcs/min
Available Box Dimension: (55-320) Mm × (40-230) Mm × (20-110) Mm Sealing Type: Dot End Seal/flat Seal
Film Feeding Mode: Servo Feeding Power: 3kw
Voltage: 220v/380v Application: Lotion, Pressed Powder, Coffee
High Light:

capsule Automatic Overwrapping Machine


Blister Automatic Overwrapping Machine


servo feeding over wrapper

Product Description

Capsule/Blister Box Semi-Automatic Overwrapping Machine Medicine & Health


Overwrapping Machine Introduction


Overwrapping machine is used for test paper, cosmetics, medicines, food, health care products, audio-visual products, stationery, daily necessities and other three-dimensional plastic packaging of the outer cover transparent film (the packaging effect is the same as that of cigarettes).


Semi-Automatic cellophane overwrapping machine is suitable for wide packing sizes range, to overwrap products with BOPP film. It is wildly used in cosmetics, medicine, healthcare, perfume food, soap etc.


Technical Parameter


Model XQ-SW300
Packing Size (55-320) mm × (40-230) mm × (20-110) mm
Production Capacity 15-20 packs / min
Feeding Mode by hand
Total Power 3kw
Working Voltage 220V
Compressed Air 0.4-0.8Mpa
Machine Weight 180kg
Machine Dimensions 2000 (mm) × 800 (mm) × 1100 (mm)



Machine Principle

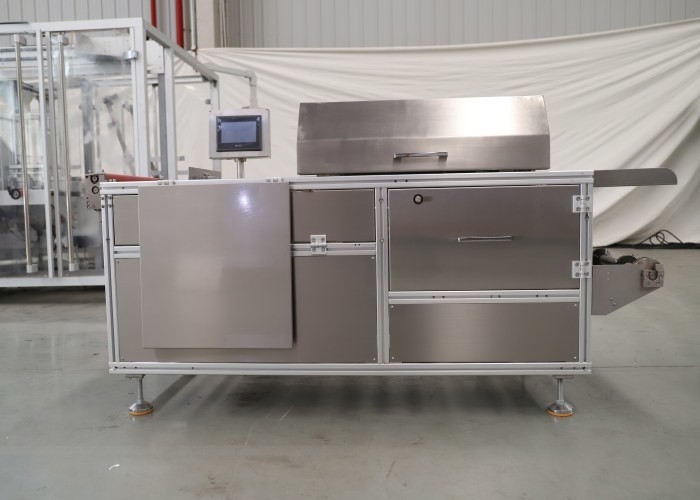

Capsule Blister Automatic Overwrapping Machine Servo Feeding 0


Overwrapping Machine Features


Model:XQ-SW300 Capsule/Blister Box Semi-Automatic Overwrapping Machine Medicine & Health


1. The film packaging is moisture-proof, dust-proof, oil-proof and anti-counterfeiting.
2. The specific heat shrink packaging machine greatly improves the packaging yield and decorative effect, enhances the market competitiveness of the packaged products, can greatly increase the sales volume, and increase the added value of the products.
3. More than 80% energy saving than the heat shrink packaging machine. You can purchase a semi-automatic transparent film packaging machine for the electricity saved in the next year.
4. The price is low, only less than one-third of the fully automatic transparent film packaging machine.
5. Stable operation, high reliability, almost no maintenance.
6. Adaptable, one machine can complete the packaging of dozens of specifications boxes. The mold price is low, the replacement is simple and convenient.
7. The whole machine is compact in structure, small in space, light in weight, and the packaging space is almost unlimited.
8. It can automatically cut the film with a cable and a hot point device.


Packing Material Requirements


Packaging material

BOPP shrink film in roll; ID¢76mm; thickness: 0.025 mm

Width: according to box size

heat-seal temperature: 100℃-150℃



A: width: 1.2-3mm

B: breaking strength: 10N-15N

C: thermal shrink film: ≤2.5℅

D: diameter: 35mm

E: heat-seal temperature: 100℃-150℃

Packing products The shape must be square, the paste is firm, and there must be no flanging, wrong side, misplacement, softness, etc.

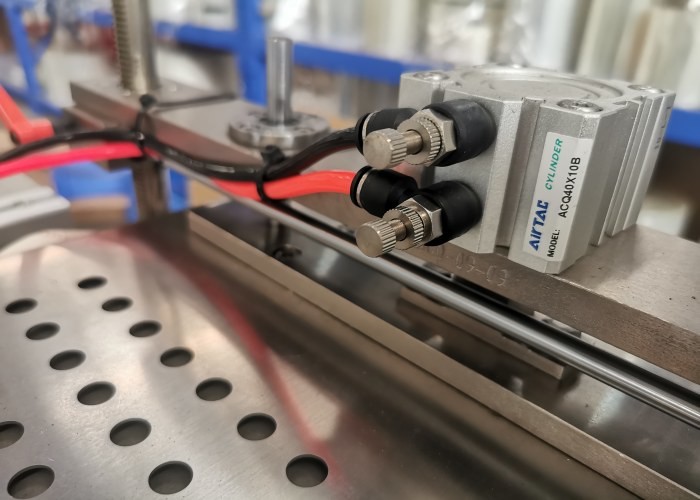

Capsule Blister Automatic Overwrapping Machine Servo Feeding 1
