Perfume Cellophane Manual Overwrapping Machine Semi Automatic Overwrapper

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 30 set/month
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-SW300

Detail Information

Name: Perfume Box Semi-Automatic Overwrapping Machine Speed: 15-20pcs/min
Available Box Dimension: (55-320) Mm × (40-230) Mm × (20-110) Mm Sealing Type: Flat Seal/spot Seal
Film Feeding Mode: Servo Feeding Power: 3kw
Voltage: 220v/380v Application: Commodity, Candies
High Light:

Perfume manual overwrapping machine

,

cellophane manual overwrapping machine

,

Semi Automatic overwrapper

Product Description

Perfume Box Semi-Automatic Overwrapping Machine Wrapping by Hand



Overwrapping Machine Introduction



The cellophane wrapping machine is a widely-used automatic Bopp film overwrapping machine for cartons, boxes, and cases. Cellophane wrappings are fashionable, dust-proof, value-improved for your products. Semi-Automatic cellophane overwrapping machine is suitable for wide packing sizes range, to overwrap products with BOPP film. It is wildly used in cosmetics, medicine, healthcare, perfume food, soap etc.



Technical Parameter



Model XQ-SW300
Packing Size (55-320) mm × (40-230) mm × (20-110) mm
Production Capacity 15-20 packs / min
Total Power 3kw
Working Voltage 220V
Compressed Air 0.4-0.8Mpa
Machine Weight 180kg
Machine Dimensions 2000 (mm) × 800 (mm) × 1100 (mm)





Machine Principle



Perfume Cellophane Manual Overwrapping Machine Semi Automatic Overwrapper 0



Overwrapping Machine Features



Model:XQ-SW300 Perfume Box Semi-Automatic Overwrapping Machine Wrapping by Hand



1. It can automatically cut the film with a cable and a hot point device.

2. Adaptable, one machine can complete the packaging of dozens of specifications boxes. The mold price is low, the replacement is simple and convenient.

3. More than 80% energy saving than the heat shrink packaging machine. You can purchase a semi-automatic transparent film packaging machine for the electricity saved in the next year.



Packing Material Requirements



Packaging material

BOPP shrink film in roll; ID¢76mm; thickness: 0.025 mm

Width: according to box size

heat-seal temperature: 100℃-150℃

Drawstring

Self-adhesive

A: width: 1.2-3mm

B: breaking strength: 10N-15N

C: thermal shrink film: ≤2.5℅

D: diameter: 35mm

E: heat-seal temperature: 100℃-150℃

Packing products The shape must be square, the paste is firm, and there must be no flanging, wrong side, misplacement, softness, etc.



Samples

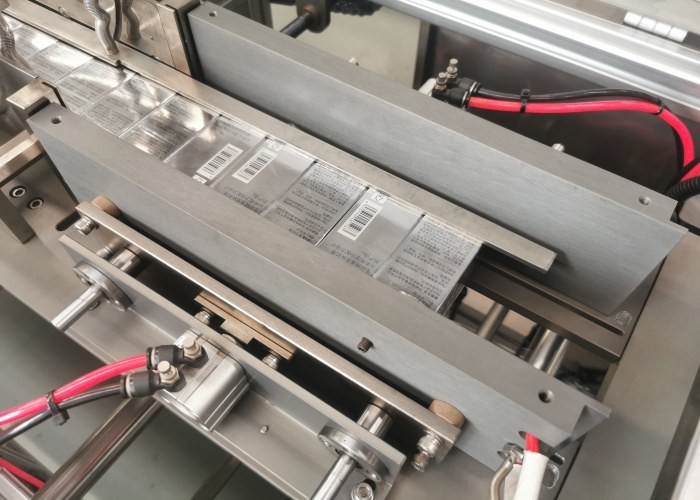

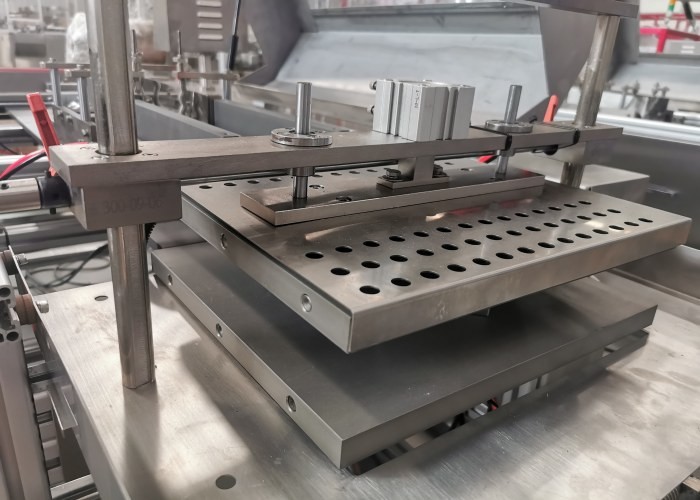

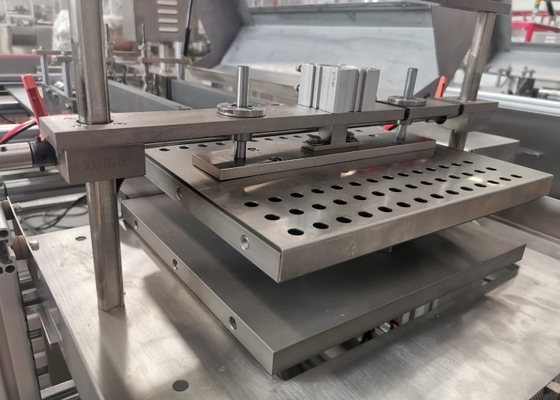

Perfume Cellophane Manual Overwrapping Machine Semi Automatic Overwrapper 1Perfume Cellophane Manual Overwrapping Machine Semi Automatic Overwrapper 2
