80-130pcs/min High Speed Toothpaste Automatic Overwrapping Machine with CAM Feeding Film
Contact Person : SICI AUTO
Phone Number : 18921338139
WhatsApp : +8618921338139
Detail Information |
|||
Name: | Condom Box Automatic Overwrapping Machine | Feeding Mode: | Automatic |
---|---|---|---|
Speed: | 80-130pcs/min | Available Box Dimension: | (50-220) Mm × (25-110) Mm × (15-60) Mm |
Sealing Type: | Flat Sealing | Film Feeding Mode: | Cam Feeding |
Power: | 5kw | Voltage: | 220v/380v |
Optional: | Ironing Machine, Anti-static Bar, Open Door Sensor | Application: | Playing Cards, Sticky Note, Lotion |
High Light: | Condom Automatic Overwrapping Machine,cellophane Automatic Overwrapping Machine,Tear Tape overwrap equipment |
Product Description

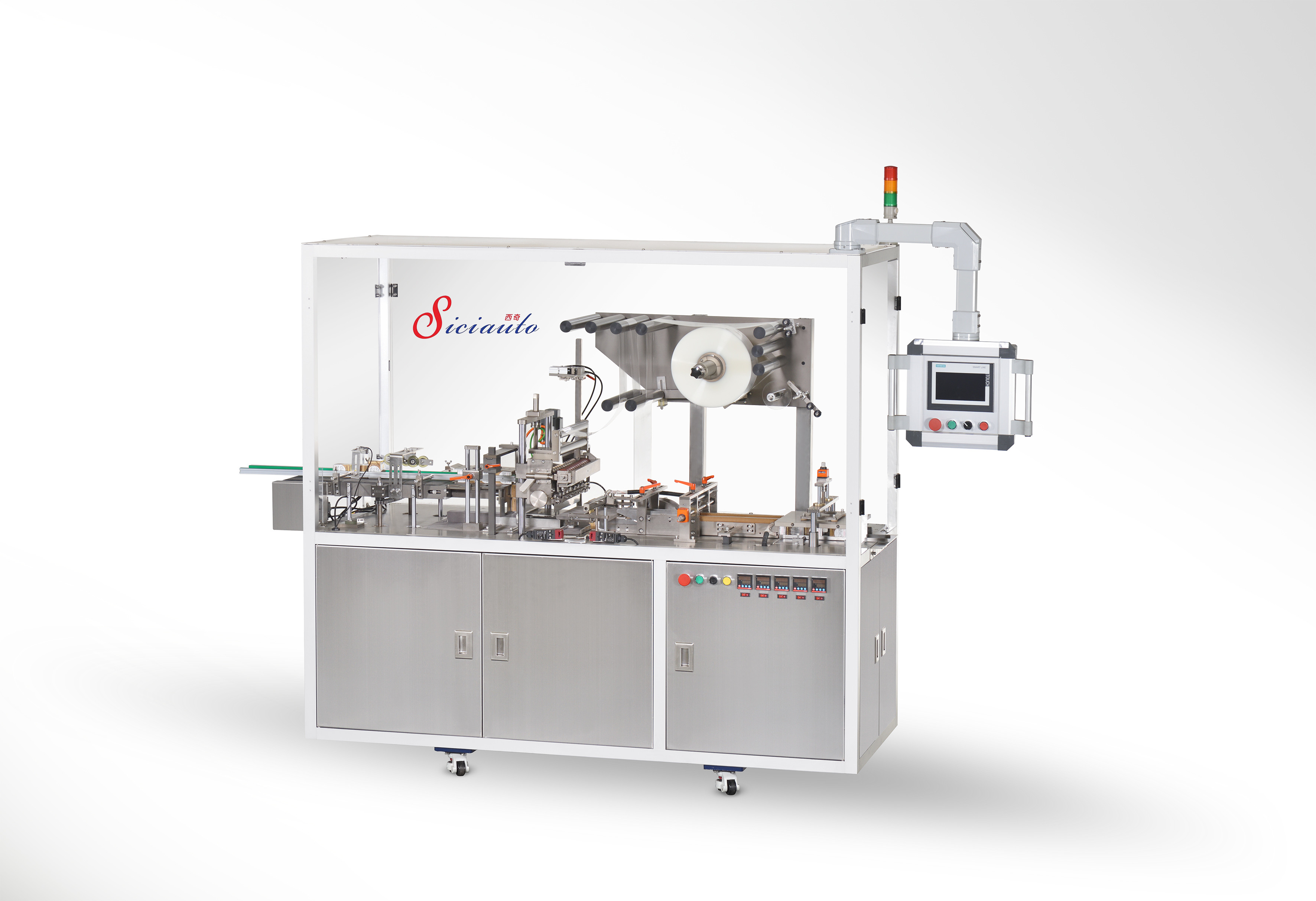

XQ-SW320 Condom Box with Tear Tape Automatic Cellophane Overwrapping Machine
Overwrapping Machine Introduction
The machine is used for test paper, cosmetics, medicines, food, health care products, audio-visual products, stationery, daily necessities and other three-dimensional plastic packaging of the outer cover transparent film (the packaging effect is the same as that of cigarettes). It's widely used for cosmetics, skin care, medicine, commodity, stationery, food industires and so on.
Technical Parameter
Model | XQ-SW320 |
Packing Size | (50-220) mm × (25-110) mm × (15-60) mm |
Production Capacity | 80-130 packs / min |
Total Power | 5kw |
Working Voltage | 220V |
Air Consumption | 5-8L/min |
Air Compressure | 0.4-Mpa |
Machine Weight | 500kg |
Machine Dimension | 2050*850*1600mm |
Optional | ironing machine, anti-static bar, open door sensor |
Machine Principle
Overwrapping Machine Features
Model:XQ-SW320 Condom Box with Tear Tape Automatic Cellophane Overwrapping Machine
1 | The equipment can adopt PLC control, touch screen man-machine interface operation platform. |
2 | Fault diagnosis prompt, complete safety protection. |
3 | The equipment automatically sends and cuts the film, the automatic wrapping, the automatic sealing, the automatic pulling belt, the speed, the length is adjustable continuously, may pack the different specification product. |
4 | The cylinder and CAM are combined to drive; The electric cabinet and equipment are equipped with lighting. |
5 | The technical indicators of the whole machine meet the requirements of GMP certification and industry standards. |
6 | Anti-counterfeiting easy to pull wire. |
7 |
The CAM material is made of high-quality ductile iron and then quenched (the surface hardness is 50-55). The panel and shell are made of 1.5mm thick 304 stainless steel and transported to 304 stainless steel with aluminum alloy. The outer surface is treated with matte. |
