Condom Cellophane Automatic Overwrapping Machine Tear Tape Equipment
Contact Person : SICI AUTO
Phone Number : 18921338139
WhatsApp : +8618921338139
| Minimum Order Quantity : | 1 set | Packaging Details : | Wooden Case |
|---|---|---|---|
| Delivery Time : | 30 work days | Payment Terms : | T/T |
| Supply Ability : | 30 set/month |
| Place of Origin: | Wuxi | Brand Name: | SICI AUTO |
|---|---|---|---|
| Certification: | CE | Model Number: | XQ-SW300 |
|
Detail Information |
|||
| Name: | Semi-automatic Overwrapping Machine | Feeding Mode: | By Hand |
|---|---|---|---|
| Speed: | 15-20pcs/min | Available Box Dimension: | (55-320) Mm × (40-230) Mm × (20-110) Mm |
| Sealing Type: | Flat Seal/dot End Seal | Film Feeding Mode: | Servo Feeding |
| Power: | 3kw | Voltage: | 220v/380v |
| Optional: | Heating Plate | Application: | Gift, Perfume, Tea |
| High Light: | semi automatic cellophane overwrapping machine,15 pcs min cellophane overwrapping machine,20 pcs min overwrap machine |
||
Product Description

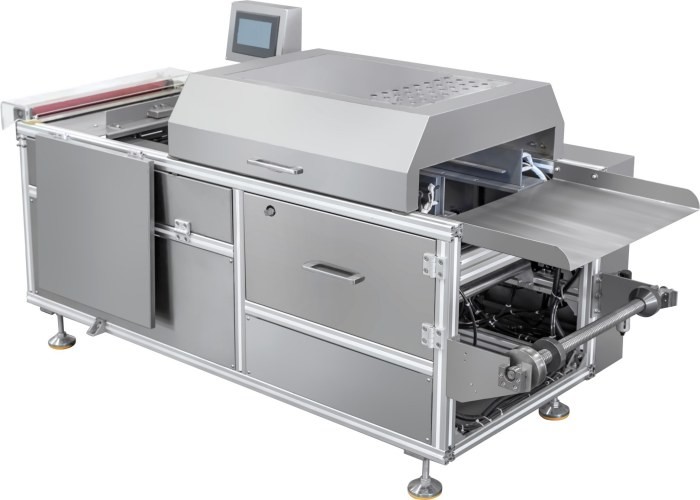

Semi-automatic Cellophane Overwrapping Machine 15-20pcs/min Feeding by Hand
Overwrapping Machine Introduction
The cellophane wrapping machine is a widely-used automatic Bopp film overwrapping machine for cartons, boxes, and cases. Cellophane wrappings are fashionable, dust-proof, value-improved for your products. Semi-automatic overwrapping machine is cost-effective suitable for smaller plant to provide production.
Technical Parameter
| Model | XQ-SW300 | |||||||||
| Packing Size | (55-320) mm × (40-230) mm × (20-110) mm | |||||||||
| Production Capacity | 15-20 packs / min | |||||||||
| Total Power | 3kw | |||||||||
| Working Voltage | 220V | |||||||||
| Compressed Air | 0.4-0.8Mpa | |||||||||
| Machine Weight | 180kg | |||||||||
| Machine Dimensions | 2000 (mm) × 800 (mm) × 1100 (mm) | |||||||||
Machine Principle
Overwrapping Machine Features
Model:XQ-SW300 Semi-automatic Cellophane Overwrapping Machine 15-20pcs/min Feeding by Hand
1. The film packaging is moisture-proof, dust-proof, oil-proof and anti-counterfeiting.
2. The price is low, only less than one-third of the fully automatic transparent film packaging machine.
3. The whole machine is compact in structure, small in space, light in weight, and the packaging space is almost unlimited.
Packing Material Requirements
| Packaging material |
BOPP shrink film in roll; ID¢76mm; thickness: 0.025 mm Width: according to box size heat-seal temperature: 100℃-150℃ |
| Drawstring |
Self-adhesive A: width: 1.2-3mm B: breaking strength: 10N-15N C: thermal shrink film: ≤2.5℅ D: diameter: 35mm E: heat-seal temperature: 100℃-150℃ |
| Packing products | The shape must be square, the paste is firm, and there must be no flanging, wrong side, misplacement, softness, etc. |
Samples
