Condom Cellophane Automatic Overwrapping Machine Tear Tape Equipment
Contact Person : SICI AUTO
Phone Number : 18921338139
WhatsApp : +8618921338139
| Minimum Order Quantity : | 1 set | Packaging Details : | Wooden Case |
|---|---|---|---|
| Delivery Time : | 30 work days | Payment Terms : | T/T |
| Supply Ability : | 30 set/month |
| Place of Origin: | Wuxi | Brand Name: | SICI AUTO |
|---|---|---|---|
| Certification: | CE | Model Number: | XQ-SW320 |
|
Detail Information |
|||
| Name: | Toothpaste Automatic Overwrapping Machine | Wrapping Mode: | Single Wrap |
|---|---|---|---|
| Speed: | 80-130 Pcs/min | Available Box Dimension: | (50-220) Mm × (25-110) Mm × (15-60) Mm |
| Sealing Type: | Flat Sealing | Film Feeding Mode: | Cam Feeding |
| Power: | 5kw | Voltage: | 220v/380v |
| Optional: | Cursor Location, Ironing Machine | Application: | Mascara, Lotion |
| High Light: | toothpaste Automatic Overwrapping Machine,CAM film Automatic Overwrapping Machine,130 pcs min cellophane machine |
||
Product Description

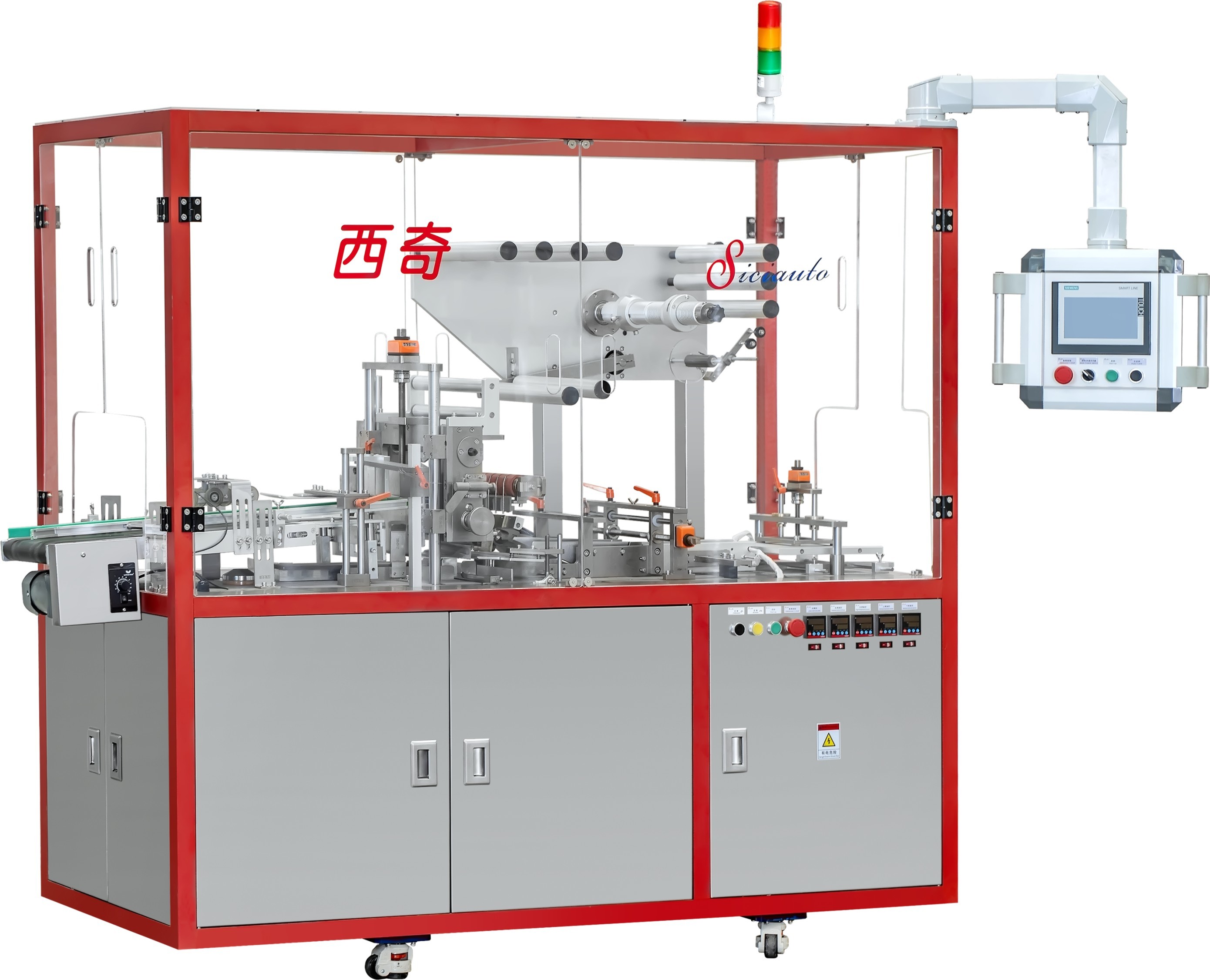

80-130pcs/min High Speed Toothpaste Automatic Overwrapping Machine with CAM Feeding Film
Product Introduction of Overwrapping Machine
An overwrapping machine takes a length of heat sealable film from a roll and folds it around a product. Overwrapping machine not only improves the appearance of the product, but also protects against theft and dust. The features of versatility and flexibility makes over wrapping being widely applied in a wide range of industries.
Technical Parameter
| Model | XQ-SW320 |
| Packing Size | (50-220) mm × (25-110) mm × (15-60) mm |
| Production Capacity | 80-130 packs / min |
| Total Power | 5kw |
| Working Voltage | 220V |
| Air Consumption | 5-8L/min |
| Air Compressure | 0.4-Mpa |
| Machine Weight | 500kg |
Machine Principle
Overwrapping Machine Features
Model:XQ-SW320 80-130pcs/min High Speed Toothpaste Automatic Overwrapping Machine with CAM Feeding Film
1. The equipment can adopt PLC control, touch screen man-machine interface operation platform.
2. Fault diagnosis prompt, complete safety protection.
3. The equipment automatically sends and cuts the film, the automatic wrapping, the automatic sealing, the automatic pulling belt, the speed, the length is adjustable continuously, may pack the different specification product.
4. The cylinder and CAM are combined to drive; The electric cabinet and equipment are equipped with lighting.
Packing Material Requirements
| Packaging material |
BOPP shrink film in roll; ID¢76mm; thickness: 0.025 mm Width: according to box size heat-seal temperature: 100℃-150℃ |
| Drawstring |
Self-adhesive A: width: 1.2-3mm B: breaking strength: 10N-15N C: thermal shrink film: ≤2.5℅ D: diameter: 35mm E: heat-seal temperature: 100℃-150℃ |
| Packing products | The shape must be square, the paste is firm, and there must be no flanging, wrong side, misplacement, softness, etc. |
Samples
