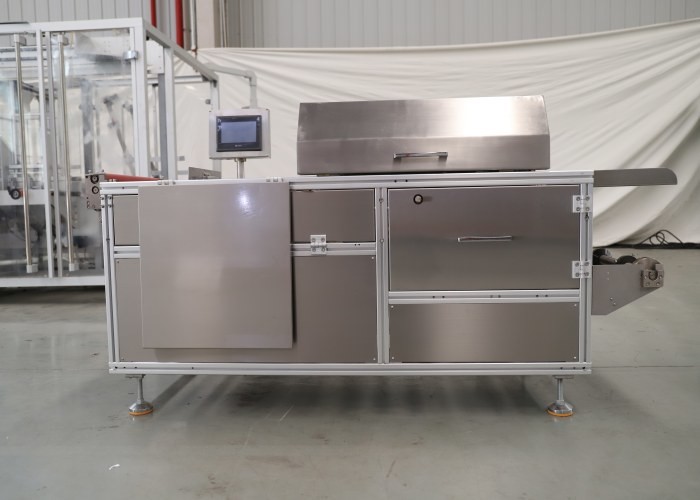

Semi Automatic Servo Feeding Overwrapper Machine Flat Seal Tray

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 30 set/month
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-SW300

Detail Information

Name: Gift Box Semi-automatic Overwrapping Machine Feeding Mode: By Hand
Speed: 15-20pcs/min Available Box Dimension: (55-320) Mm × (40-230) Mm × (20-110) Mm
Sealing Type: Flat Seal Film Feeding Mode: Servo Feeding
Power: 3kw Voltage: 220v/380v
Optional: Heating Plate Application: Perfume, Tea, Toys
High Light:

Semi automatic overwrapper machine


Servo Feeding overwrapper machine


flat seal tray overwrapper

Product Description

Semi-automatic Gift Box Overwrapping Machine with Servo Feeding


Overwrapping Machine Introduction


The cellophane wrapping machine is a widely-used automatic Bopp film overwrapping machine for cartons, boxes, and cases. Cellophane wrappings are fashionable, dust-proof, value-improved for your products. Semi-automatic overwrapping machine is cost-effective suitable for smaller plant to provide production.


Technical Parameter


Model XQ-SW300
Packing Size (55-320) mm × (40-230) mm × (20-110) mm
Production Capacity 15-20 packs / min
Total Power 3kw
Working Voltage 220V
Compressed Air 0.4-0.8Mpa
Machine Weight 180kg
Machine Dimensions 2000 (mm) × 800 (mm) × 1100 (mm)



Machine Principle


Semi Automatic Servo Feeding Overwrapper Machine Flat Seal Tray 0


Overwrapping Machine Features


Model:XQ-SW300 Semi-automatic Gift Box Overwrapping Machine with Servo Feeding


1. The specific heat shrink packaging machine greatly improves the packaging yield and decorative effect, enhances the market competitiveness of the packaged products, can greatly increase the sales volume, and increase the added value of the products.

2. Stable operation, high reliability, almost no maintenance.

3. More than 80% energy saving than the heat shrink packaging machine. You can purchase a semi-automatic transparent film packaging machine for the electricity saved in the next year.


Packing Material Requirements


Packaging material

BOPP shrink film in roll; ID¢76mm; thickness: 0.025 mm

Width: according to box size

heat-seal temperature: 100℃-150℃



A: width: 1.2-3mm

B: breaking strength: 10N-15N

C: thermal shrink film: ≤2.5℅

D: diameter: 35mm

E: heat-seal temperature: 100℃-150℃

Packing products The shape must be square, the paste is firm, and there must be no flanging, wrong side, misplacement, softness, etc.

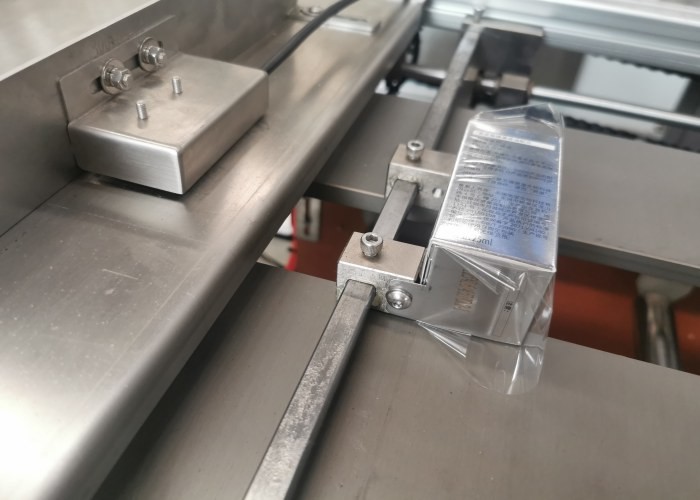

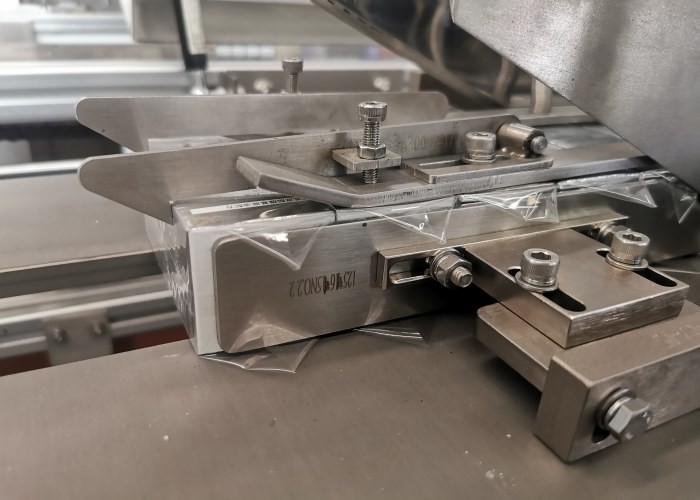

Semi Automatic Servo Feeding Overwrapper Machine Flat Seal Tray 1Semi Automatic Servo Feeding Overwrapper Machine Flat Seal Tray 2
