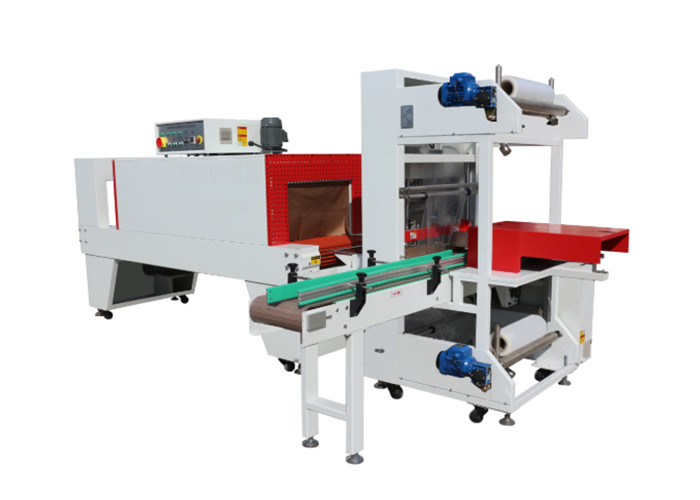

L PE Automatic Heat Shrink Wrap Machine 20 Pcs/Min Heat Tunnel For Shrink Bands

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30-45 work days Payment Terms : T/T
Supply Ability : 100 set/ month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-6030A+XQ-SF-6040E

Detail Information

Name: Sleeve Type Shrink Wrapping Machine Automatic Grade: Automatic
Available Product: Bottles,Cans Speed: 1-20 Pcs/min
Product Feeding Direction: L Direction Product Feeding Method: Auto
Shrink Wap Effect: Sleeve Type Shrink Film: PE
Function: For Multi Bottles, Bundle Wrap Application: Daily Chemical: Laundry Detergent, Hand Sanitizer, Motor Oil, Disinfectant, Shampoo, Glue, Detergent, Spray Can, Hair Cream, Insecticide
High Light:

L automatic heat shrink wrap machine


PE automatic heat shrink wrap machine


20 pcs min heat tunnel for shrink bands

Product Description

Automatic Sleeve Type Shrink Wrapping Machine by L feeding direction

  • Product description

It is a fully automatic PE film shrink packaging machine, automatic whole material, suitable for automatic shrink packaging of combined products without bottom support, such as: mineral water, beverages, daily chemical detergents and other combined shrink packaging It is applicable to single sleeve wrap or bundling sleeve wrap of products in requried format by auto feeding, to connect with front production line .


  • Working Principle

L PE Automatic Heat Shrink Wrap Machine 20 Pcs/Min Heat Tunnel For Shrink Bands 0


  • Technical Parameter
Model XQ-6030A XQ-SF-6040E
Max packing size 300×500×300mm 1500×500×300mm
Packing speed 0-15m/min 0-20m/min
Sealing knife size 670mm /
Tunnel size / 1800×600×400mm
Working Temperature 0-300℃ 0-300℃
Working table height 750±50mm
Power 1.5kw 18kw
Voltage AC220V 1/3PH 50/60Hz
Air source 6-8kg/cm2 /
Shrink film PE
Machine weight 410kg 565kg
Machine size 1852×1378×1813mm 2800×950×1813mm


  • Product Features


L PE Automatic Heat Shrink Wrap Machine 20 Pcs/Min Heat Tunnel For Shrink Bands 1


1. Using control components, the performance is stable and durable, the sealing knife is specially designed, the sealing is firm, does not crack, and does not stick to the knife.
2. Automatic feeding, arranging, pushing, film feeding, sealing and cutting, stepless mechanical speed regulation, and adjusting the speed of the feeding conveyor belt.
3. 2 rows, 3 rows, 4 rows, etc. can be packaged without bottom support according to the requirements. When changing the packaging method, it can be done through the switch on the control panel.
4. The operation is convenient and simple. It can be completed in 2-3 minutes when changing different specifications. The automatic feeding device can be designed according to different bottle types.
5. The direction of the feeding conveyor belt can be designed as left feeding or right feeding according to customer needs; suitable for PE, POF shrink film.


  • Product Samples

L PE Automatic Heat Shrink Wrap Machine 20 Pcs/Min Heat Tunnel For Shrink Bands 2
