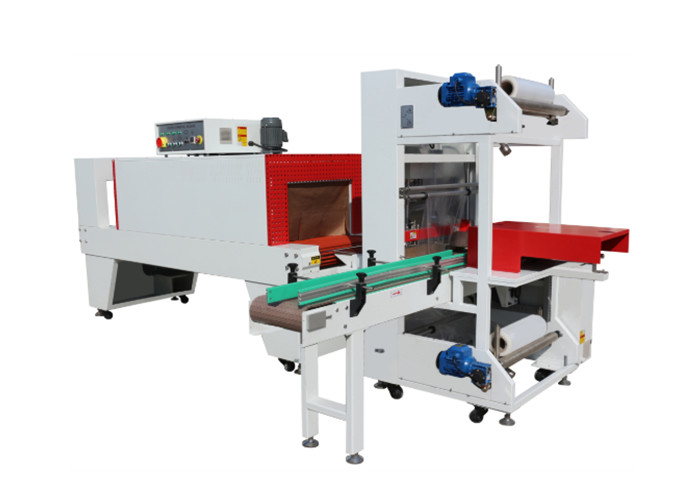

Bottle Can Tray Shrink Wrapping Machine Sleeve Type Automatic

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30-45 work days Payment Terms : T/T
Supply Ability : 100 set/ month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-6030A+XQ-SF-6040E

Detail Information

Name: Sleeve Type Shrink Wrapping Machine Automatic Grade: Automatic
Available Product: Catons,boxes, Pouches, Bottles, Cans, Tubes Etc. Speed: 1-20 Pcs/min
Product Feeding: L Direction Cutter Driven Method: Auto
Shrink Wap Effect: Sleeve Type Shrink Film: PE
Function: For Shrink Wrap For Multi Bottles, Bundle Wrap Application: Food, Beverage, Daily Commodity, Electronics,...etc.
High Light:

bottle tray shrink wrapping machine


can tray shrink wrapping machine


sleeve automatic shrink machine

Product Description

Automatic sleeve type shrink wrapping machine for Bottles /Cans in Tray

  • Product description

Automatic sleeve type shrink wrapping machine is composed of a sealing-cutting machine and a heat shrinkable packaging tunnel machine. It uses a variety of imported and domestic heat shrinkable films such as PE as the packaging material. After the product is sealed and cut, it directly enters the heat shrinkable packaging machine to complete the packaging. Improve work efficiency and reduce power consumption. The main electrical components of the cuff shrinking machine adopt imported components, and the action execution part adopts pneumatic components, so the operation becomes extremely simple, the performance is very stable, the failure rate is extremely low, and the service life is longer. It can work continuously for a long time and can meet the needs of mass production. It is suitable for bottomless (or bottomed) heat shrinkable packaging of various bottled products such as cans, mineral water, beer, glass bottles, beverages, etc. At the same time, it is used in conjunction with a constant temperature PE shrinking furnace to achieve the same packaging effect.


It is suitable for packing one or more rows of products such as cartons and external wall insulation boards. At the same time, it can be packaged with a single item. After packaging, the products are neatly arranged, fastened and beautiful.

  • Working Principle


Bottle Can Tray Shrink Wrapping Machine Sleeve Type Automatic 0


  • Technical Parameter
Model XQ-6030A XQ-SF-6040E
Max packing size 300×500×300mm 1500×500×300mm
Packing speed 0-15m/min 0-20m/min
Sealing knife size 670mm /
Tunnel size / 1800×600×400mm
Working Temperature 0-300℃ 0-300℃
Working table height 750±50mm
Power 1.5kw 18kw
Voltage AC220V 1/3PH 50/60Hz
Air source 6-8kg/cm2 /
Shrink film PE
Machine weight 410kg 565kg
Machine size 1852×1378×1813mm 2800×950×1813mm


  • Product Features

1: Just press the button, the packaging machine will automatically complete the process of conveying, wrapping, sealing, conveying and shrinking.
2: It is conveyed by stainless steel mesh chain, which has better bearing capacity and longer service life.
3: The adjustable film ejector is combined with the inductive switch to control the length of the film, so that the film is thinner and the loss is less.
4: The high-power turbine fan of the furnace body is more sufficient for the circulating air volume.
5: The super-large fan cooling system outside the furnace makes the packaging shape better.
6: Lengthen the heat shrinkable furnace, the speed can be faster and the shrinkage effect is better.
7: The heating tube is heated by a quartz heating tube, which is faster to dissipate heat, save electricity and have a longer life.
8: Keep handling the sealing and cutting knife, so that the temperature control is more accurate and the sealing is firmer


  • Product Samples

Bottle Can Tray Shrink Wrapping Machine Sleeve Type Automatic 1
