1-20 Pcs/Min Automatic Shrink Wrapping Machine PE Heat Shrink Tunnel

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30-45 work days Payment Terms : T/T
Supply Ability : 100 set/ month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-GH-6030AZS+XQ-SF-6040E

Detail Information

Name: Sleeve Type Shrink Wrapping Machine Automatic Grade: Automatic
Available Product: Cartons Case, Large Product Speed: 1-20 Pcs/min
Feeding Direction: Straight Cutter Driven Method: Auto
Shrink Wap Effect: Sleeve Type Shrink Film: PE
Function: For Shrink Wrap For Multi Bottles, Bundle Wrap Application: Big Product Like Carton Case...etc.
High Light:

1 pcs min automatic shrink wrapping machine

,

20 pcs min automatic shrink wrapping machine

,

PE heat shrink tunnel

Product Description

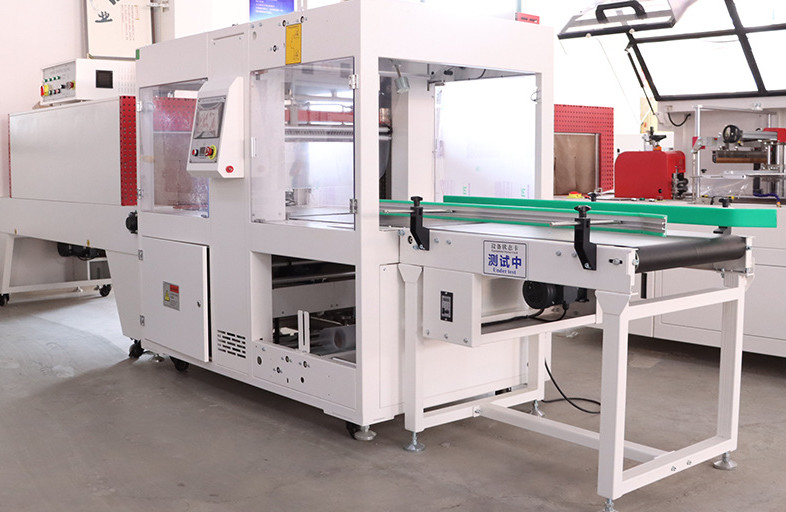

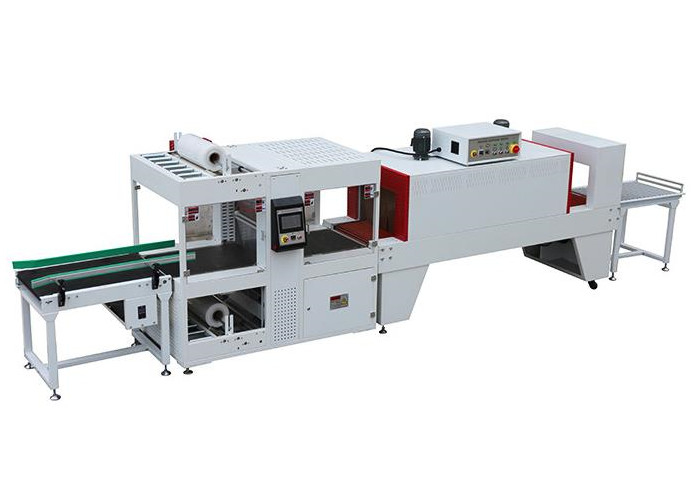

Fully Automatic Sleeve Shrink Wrapping Machine for Large product

  • Product description

This automatic film shrink packaging machine is mainly used for heat shrink packaging of beer, beverages, cosmetics, cement bricks, outer boxes of household appliances, condiments and other products. The cuff type heat shrink packaging machine is a special kind of heat shrink packaging machine. The cuff packaging machine can be decomposed into two sets of products, namely the sealing and cutting machine and the heat shrinking machine.
The packaging machine adopts heat shrinkable film, which is first sealed and cut into a cylindrical shape by the sealing and cutting machine, and then wraps the product. Then He Suiping enters the heat shrinking machine and is heated to make the shrinkable film tightly wrap the product. The left and right ends are in the shape of round cuffs. Easy to carry and store

  • Working Principle

1-20 Pcs/Min Automatic Shrink Wrapping Machine PE Heat Shrink Tunnel 0



  • Technical Parameter
Model XQ-GH-6030AZS XQ-SF-6040E
Max packing size L(unlimited)*500*300mm W500xH350mm
Packing speed 0-25m/min 0-25m/min
Sealing knife size 670mm /
Tunnel size / 1800×600×400mm
Working Temperature 0-300℃ 0-300℃
Working table height 820+50mm
Power 2kw 18kw
Voltage AC220V 1/3PH 50/60Hz
Air source 6-8kg/cm2 /
Shrink film PE
Machine weight 410kg 565kg
Machine size 1850x1200*1770mm 2800×950×1813mm




  • Product Features

①The sealing and cutting knife holder is driven by a four-column vertical system, which can overcome the problems of wrinkles and the sealing line not in the middle of the product caused by the traditional L-type sealing machine;
②The sealing height can be adjusted to ensure that the sealing line is in the middle position;
③Choose the suitable packaging height, which can reduce the travel time of the sealing knife, thereby increasing the production speed and reducing the production cost;
④Using horizontal and vertical two sets of photoelectricity, easy to switch, for thin or small products, the packaging can be easily completed;
⑤Automatic program control, simple and convenient operation, with safety protection and alarm functions;
⑥It is especially suitable for tall and large products.



  • Product Samples

1-20 Pcs/Min Automatic Shrink Wrapping Machine PE Heat Shrink Tunnel 11-20 Pcs/Min Automatic Shrink Wrapping Machine PE Heat Shrink Tunnel 2
