Full Closed POF Hot Shrink Wrapping Machine Carton Heat Tunnel Conveyor

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30-45 work days Payment Terms : T/T
Supply Ability : 100 set/ month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-SW405A+XQ-4525

Detail Information

Name: Full-closed Shrink Wrapping Machine Automatic Grade: Automatic
Available Product: Catons, Cases, Boxesetc. Speed: 1-30 Pcs/min
Cut-seal Way: Straight Cut Cutter Driven Method: Auto, By Pneumatic
Shrink Wap Effect: Full-closed Shrink Film: POF
Function: For Single Wrap Application: Food, Daily Chemical, Pharma, Stationery, Digital Electronics Gift Box Etc.
High Light:

Full closed hot shrink wrapping machine

,

POF hot shrink wrapping machine

,

carton heat tunnel conveyor

Product Description

Full-closed Shrink Wrap Shrink Wrapping Machine for Carton Case

  • Product description

Full-closed Shrink Wrap Shrink Wrapping Machine for Carton Case is a machine that automatically shrinks and packs products online through photoelectric detection.
The high-speed edge sealing machine can be used for fully automatic online shrink packaging of products. It adopts photoelectricity to automatically detect products. It can choose two modes of automatic feeding or manual feeding. It adopts half-folded film and can seal the other three sides. The constant temperature heating sealing and cutting system can be used to seal and cut various industrial standard heat-sealing films such as PE, PVC, POF, etc. The sealing is firm and beautiful, especially suitable for POF sealing and cutting. When the product size is changed, it is only necessary to make a simple adjustment through the handwheel, without replacing any parts, reducing the product replacement time and making it easier to operate. The speed-adjustable front-end feeding system and the back-end storage working platform make the whole machine truly realize high-speed and unmanned automatic operation.



  • Working Principle

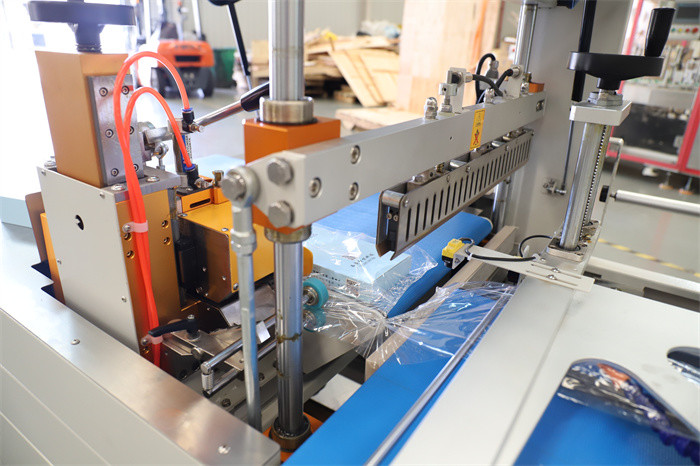

Full Closed POF Hot Shrink Wrapping Machine Carton Heat Tunnel Conveyor 0



  • Technical Parameter
Model XQ-SW-405A XQ-4525
Power 1.8kw 16kw
Power Supply AC 380V 3PH 50Hz AC 380V 3PH 50Hz
Max. Packing Sizes L×W×H

L(unlimited),

W+H<=450mm,H<=150mm

W400xH200mm
Tunnel Size L×W×H / 1500×500×300mm
Sealing Blade Length 490mm /
Packing Speed 15m/min. 0-20m/min
External Air Source 6-8kg/cm2 /
Shrink Film POF POF
Machine Size L×W×H 1615×960×1550mm 1860×985×1315mm
Wooden Box Size L×W×H 1800×1050×1700mm 1910×1035×1465mm
G./N. Weight 560/520kgs 493/453kgs



  • Product Features
· Longitudinal sealing (side sealing) can be continuously sealed and cut with constant temperature knife;
· The horizontal sealing adopts the form of constant temperature knife, and the lifting type sealing and cutting;
· When the product size changes within the allowable range of the equipment, it can be easily adjusted through the equipment itself without changing any molds or fixtures;
The length of the product can be automatically detected by two sets of electric eyes in the horizontal or vertical direction, the length of the product is not limited, and products of different lengths can be produced at the same time
· Adopt PLC and touch screen, easy to operate and easy to learn, and use 5 groups of frequency converters to accurately control the transmission.
· The plexiglass safety door not only guarantees safety but also monitors the production situation.
  • Product Samples

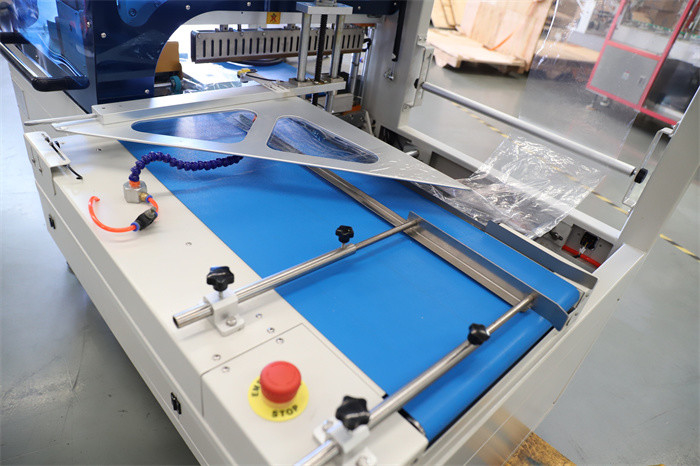

Full Closed POF Hot Shrink Wrapping Machine Carton Heat Tunnel Conveyor 1

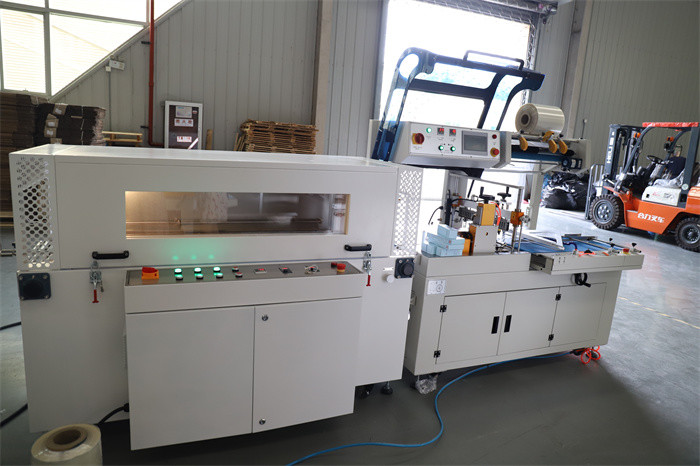

Full Closed POF Hot Shrink Wrapping Machine Carton Heat Tunnel Conveyor 2
