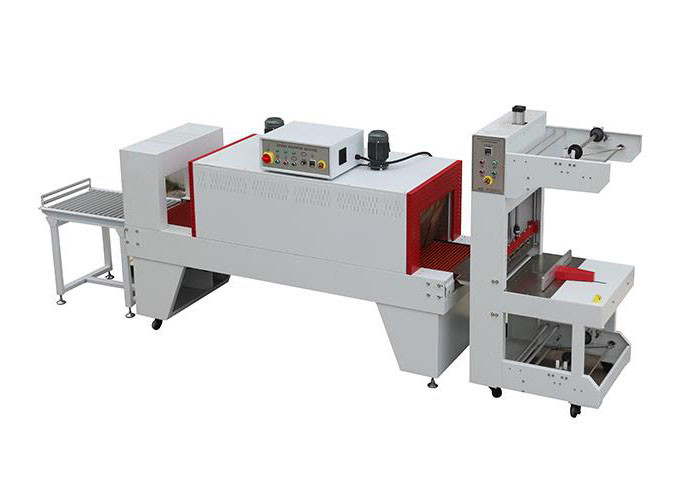

Sleeve PE Semi Automatic Pallet Wrapping Machine 10 Pcs/Min Bottle Heat Shrink Tunnel

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 100 set/ month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-6030+SF-6040E

Detail Information

Name: Semi Auto Sleeve Shrink Wrapping Machine Automatic Grade: Semi Auto
Available Product: Catons, Bottles, Cans, Etc. Speed: 1-10 Pcs/min
Cut-seal Way: Straight Cut Product Feeding: Manual
Shrink Wap Effect: Sleeve Type Shrink Film: PE
Function: For Single Wrap Or Bundle Wrap Application: Small Batch Production Of Beverage Industry: Beverages, Mineral Water, Fruit Juice Drinks, Beer Cans
High Light:

sleeve semi automatic pallet wrapping machine


PE semi automatic pallet wrapping machine


10 pcs min bottle heat shrink tunnel

Product Description

Semi Auto Sleeve Shrink Wrapping Machine for Bottles by Factory Price

  • Product description

Semi Auto Sleeve Type Shrink Wrapping Machine adopts manual feeding, which can perform shrink wrapping of a single item or a combination of multiple items. It is suitable for bottomless or bottomed heat shrinkable packaging of various plastic bottles and glass bottles such as liquor, pure water, cola, cans, mineral water, beer, glass bottles, beverages, etc.; Items achieve perfect packaging effect; the machine adopts advanced German technology, and its main accessories are all well-known foreign brands; the performance of the whole machine is stable and the service life is long. This machine is widely used in beverages, food, electronics, toys, hardware products, cosmetics, medicines, books, electronics and other products. Product loss and low cost.


  • Technical Parameter
Model XQ-6030+SF-6040E
Sealing knife size 670mm
Working Temperature 0-300
Total Power 20kw
Working table height 820±50mm
Packing speed 6-10 bunches/min
Suitable film PE
Shrinking film thickness 0.04-0.16mm
Loading weight 35kg
Shrinking rate 35% for horizontal, 50% for vertical
Voltage 380V 50Hz
Air source 6-8kg/cm²
Machine Weight (kg) 800kg
Max packing size 500*300*350mm


Sleeve PE Semi Automatic Pallet Wrapping Machine 10 Pcs/Min Bottle Heat Shrink Tunnel 0

  • Product Features

1. The specially designed sealing knife makes the solid sealing line without cracking and anti-sticking;
2. The use of imported electrical components reduces the failure during use;
3. The hidden motor device greatly increases the convenience of operation. The pressing device at the back end ensures that it will not move when packing light items;
4. The front fixing frame is adjustable and can pack products of different shapes;
5. The use of dual-transport fan motors makes the hot air in the furnace spread more evenly, and the effect is beautiful after shrinking;
6. The use of solid steel rods is transported by imported silicone tubes and chains, and the silicone is durable;
7. The transmission adopts the frequency converter to control the transmission speed, and the stepless speed regulation;
8. It is an economical machine. easy to use. Just press the button, the machine automatically seals, and then the product goes into the shrink wrapping machine. This machine mainly adopts PE shrink film;
9. Widely used in beverages, daily chemicals, building materials, food cartons or trays, etc. Paperless can also be used for single or multiple combined sealing and shrinking packaging of household appliances, auto parts, furniture, floors, etc.

  • Product Samples

Sleeve PE Semi Automatic Pallet Wrapping Machine 10 Pcs/Min Bottle Heat Shrink Tunnel 1
