1-20 Pcs/Min Carton Shrink Wrapping Machine Mineral Water Heat Seal Shrink Tunnel

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30-45 work days Payment Terms : T/T
Supply Ability : 100 set/ month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-6030A+XQ-SF-6040E

Detail Information

Name: Sleeve Type Shrink Wrapping Machine Automatic Grade: Automatic
Available Product: Bottles,Cans Speed: 1-20 Pcs/min
Product Feeding: L Direction Cutter Driven Method: Auto
Shrink Wap Effect: Sleeve Type Shrink Film: PE
Function: For Shrink Wrap For Multi Bottles, Bundle Wrap Application: Food, Beverage, Bottled Beer, Liquor, Mineral Water Bottle, Dairy,...etc.
High Light:

1 pcs min carton shrink wrapping machine

,

20 pcs min carton shrink wrapping machine

,

mineral water heat seal shrink tunnel

Product Description

Drinks / Mineral Water Bottles Shrink Wrapping Machine

  • Product description

Drinks / Mineral Water Bottles Shrink Wrapping Machine is used for 350ml-2L bottled mineral water to be shrink packaged with PE film, with two openings at two  sides of the shrink packed product. We call it a sleeve-type shrink wrapping, which is convenient for consumers to carry.



It is suitable for the shrink wrapping of beverages, beer, mineral water, cans, glass bottles, etc. without bottom support. Operation of automated packaging equipment. 6 bottles, 9 bottles, 12 bottles, 15 bottles, 18 bottles, 20 bottles, 24 bottles and other packaging forms can be achieved.





  • Working Principle

The bottled beverage enters the front section of the conveying, and there is a full bottle signal installed on it. When the bottles are full, the left and right butt joints of the photoelectric elements are interrupted. At this time, it means that the conveying is full, and the PLC immediately sends a signal, and the bottle pressing device is under the action of the cylinder. Move, press the bottle to prevent it from moving forward, and at the same time, the bottle blocking lever is released, and the bottle between the bottle blocking lever and the bottle pressing plate is released, that is, the bottled beverage that needs to be packaged, which can be adjusted here. When it reaches the bottle pushing device, there is a photoelectric detection signal. When the signal is received, it means that the bottle is in place. At this time, the packaging rod located at the bottle pushing rod moves immediately, arranges the left and right sides of the package to align them, and pushes the bottle cylinder at the same time. Action, push the package in the direction of the heat shrinking furnace, automatically wrap the pe film, seal the knife up and down, bond the pe film together to form the edge, and complete the basic packaging action. While the bottled beverage will be pushed in, the first package will be pushed to the heat shrink furnace for high temperature shrinkage to form cuffs, and then immediately enter the air cooling section to shape the package, which will be output by the unpowered roller, and the finished product can be manually transported.

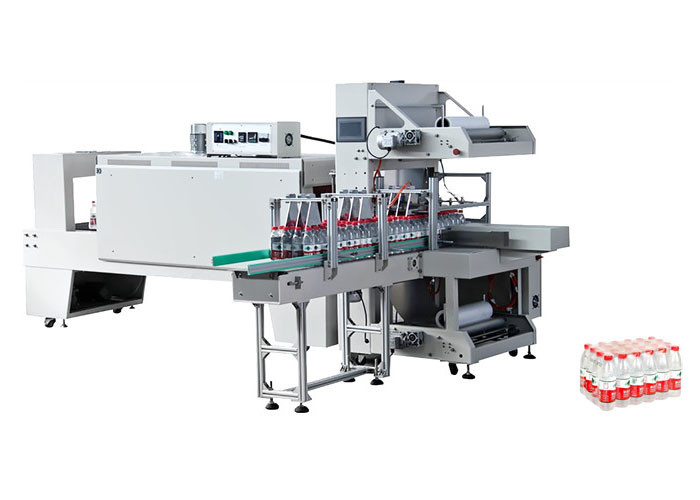

1-20 Pcs/Min Carton Shrink Wrapping Machine Mineral Water Heat Seal Shrink Tunnel 0



  • Technical Parameter
Model XQ-6030A XQ-SF-6040E
Max packing size 300×500×300mm 1500×500×300mm
Packing speed 0-15m/min 0-20m/min
Sealing knife size 670mm /
Tunnel size / 1800×600×400mm
Working Temperature 0-300℃ 0-300℃
Working table height 750±50mm
Power 1.5kw 18kw
Voltage AC220V 1/3PH 50/60Hz
Air source 6-8kg/cm2 /
Shrink film PE
Machine weight 410kg 565kg
Machine size 1852×1378×1813mm 2800×950×1813mm




  • Product Features

It has its own independent PLC control system. The electric box and the film packaging machine are also independent. The bottled water factory and beverage factory are very humid, so the electric box needs to be sealed and moisture-proof, and the internal ventilation system is used to prevent the electrical appliances from getting wet. A short circuit occurs, causing unnecessary equipment failure and loss, including operator safety.





The adjustment after the packaging form is changed is also very convenient, just adjust the height of the bottle pressing device and the distance between the packaging bottle blocking rods. The length of the buffer conveyor belt of the film wrapping machine itself is limited. It is recommended to configure a set of multi-row chain conveyors at the front end, which can ensure the stability of the entire line, and can also be used as a bottle buffer when replacing the PE film. The multi-strand chain and the buffer conveying that comes with the film wrapping machine are docked on the side, so that the bottle feeding is more stable and the phenomenon of bottle reversal will not occur.



The small chain plate type conveyor belt is used, whether it is a soft or a harder bottle, the conveying will be relatively stable and the turning radius is small. Walking on the line, there will be no bottle pouring phenomenon. Especially from the conveying to the packaging head, all the pneumatic components are operated jointly, mainly controlled by PLC and frequency converter, and operated through the man-machine interface. The temperature of the hot cutting sealing knife and the high temperature shrinking furnace can be controlled independently, and the temperature can be adjusted to adapt to the thickness of the packaging film and achieve the ideal packaging effect.



  • Product Samples

1-20 Pcs/Min Carton Shrink Wrapping Machine Mineral Water Heat Seal Shrink Tunnel 1
