PE Straight Carton Automatic Sleeve Wrapping Machine 20 Pcs/Min Shrink Wrap Tunnel

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30-45 work days Payment Terms : T/T
Supply Ability : 100 set/ month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-GH-6030AZS+XQ-SF-6040E

Detail Information

Name: Sleeve Type Shrink Wrapping Machine Automatic Grade: Automatic
Available Product: Cartons Case, Large Product Speed: 1-20 Pcs/min
Feeding Direction: Straight Cutter Driven Method: Auto
Shrink Wap Effect: Sleeve Type Shrink Film: PE
Function: For Shrink Wrap For Multi Bottles, Bundle Wrap Application: Big Product Like Carton Case...etc.
High Light:

PE carton automatic sleeve wrapping machine

,

Straight carton automatic sleeve wrapping machine

,

20 pcs min shrink wrap tunnel

Product Description

Carton Cases Sleeve Type Shrink Wrapping Machine

  • Product description

XQ-GH-6030AZS+XQ-SF-6040E automatic high-speed straight-feed cuff packaging machine adopts linear design, compact structure and small footprint. It is very convenient for some products with limited space and no need to adjust the forward direction during packaging. Restricted by the length of the package; it can work independently, or it can be connected to the production line for automatic feeding, film wrapping, sealing and cutting, shrinking, cooling, and shaping to achieve unmanned assembly operations.



It is suitable for package packaging with or without tray support such as beverages, daily chemicals, building materials, and food.

  • Working Principle

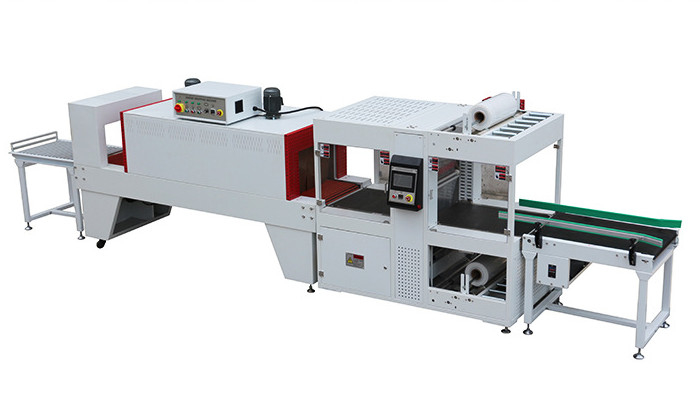

PE Straight Carton Automatic Sleeve Wrapping Machine 20 Pcs/Min Shrink Wrap Tunnel 0



  • Technical Parameter
Model XQ-GH-6030AZS XQ-SF-6040E
Max packing size L(unlimited)*500*300mm W500xH350mm
Packing speed 0-25m/min 0-25m/min
Sealing knife size 670mm /
Tunnel size / 1800×600×400mm
Working Temperature 0-300℃ 0-300℃
Working table height 820+50mm
Power 2kw 18kw
Voltage AC220V 1/3PH 50/60Hz
Air source 6-8kg/cm2 /
Shrink film PE
Machine weight 410kg 565kg
Machine size 1850x1200*1770mm 2800×950×1813mm




  • Product Features
  1. The machine is made by introducing foreign advanced technology and craftsmanship, and the equipment performance is stable and reliable;
  2. Adopt Yonghong PLC programmable controller to realize the integration of machine, electricity and gas:
  3. Compared with ordinary side-feeding machines, this machine has the advantages of speed and connection; and the cutter is driven by servo, which greatly improves the production efficiency; using a specially designed sealing knife, the sealing line is firm, does not crack, and is not easy to stick to the knife;
  4. Imported photoelectricity is used for accurate positioning, and two sets of horizontal detection photoelectricity are designed for the product;
  5. The original imported conveyor belt is durable, and the transmission speed is controlled by the frequency converter, which can be infinitely variable;
  6. The humanized design of the control box is convenient for the operator to operate;
  7. When sealing and cutting, the rear end is equipped with a pressing device, and there will be no displacement for lightly packaged items;



  • Product Samples

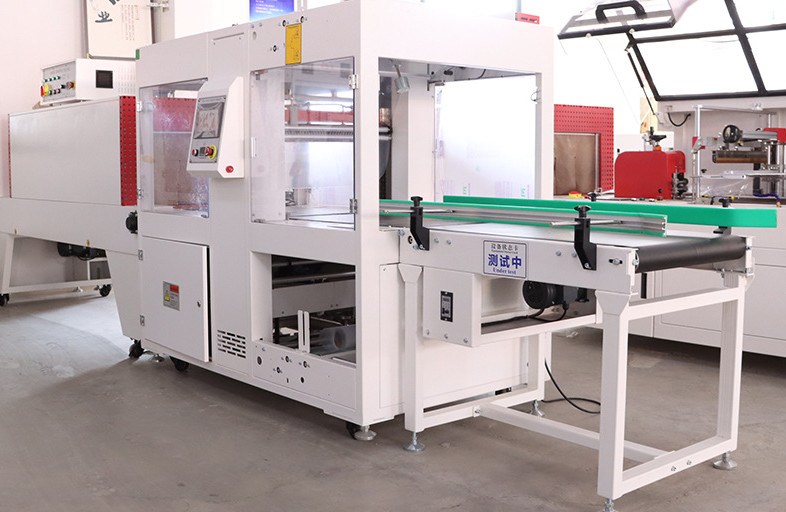

PE Straight Carton Automatic Sleeve Wrapping Machine 20 Pcs/Min Shrink Wrap Tunnel 1
