Condom Cellophane Automatic Overwrapping Machine Tear Tape Equipment
Contact Person : SICI AUTO
Phone Number : 18921338139
WhatsApp : +8618921338139
| Minimum Order Quantity : | 1 set | Packaging Details : | Wooden Case |
|---|---|---|---|
| Delivery Time : | 30 work days | Payment Terms : | T/T |
| Supply Ability : | 30 set/month |
| Place of Origin: | Wuxi | Brand Name: | SICI AUTO |
|---|---|---|---|
| Certification: | CE | Model Number: | XQ-SW350 |
|
Detail Information |
|||
| Name: | Coffee/Tea Automatic Overwrapping Machine | Wrapping Mode: | Single Wrap |
|---|---|---|---|
| Speed: | 20-55pcs/min | Available Box Dimension: | L50-300mm, W35-200mm, H20-100mm |
| Sealing Type: | Flat Sealing | Film Feeding Mode: | Cam Feeding/servo Feeding |
| Power: | 4kw | Voltage: | 220v 50Hz |
| Optional: | Cursor Location, Ironing Machine, Open Door Sensor | Application: | Face Mask, Biscuits, Candies, Perfume |
| High Light: | coffee Automatic Overwrapping Machine,tea Automatic Overwrapping Machine,single wrap cellophane sealing machine |
||
Product Description
Coffee/Tea Box Automatic Overwrapping Machine for Food with Ironing Machine
Product Introduction of Overwrapping Machine
Overwrapping machine not only improves the appearance of the product, but also protects against theft and dust. The features of versatility and flexibility makes over wrapping being widely applied in a wide range of industries. SICI AUTO has launched a series of high efficient over-wrapping equipments to meet market needs.
SICI AUTO developed XQ-SW350 has the features of large range packaging specifications, widely applies to medicine, food, health care products, stationery, commodity and video products industry. Automatic single packaging of varies box products, or assembly packaging of multi box.
Technical Parameter
Model: XQ-SW350
| Product capacity | 20-55 packs/min |
| Packing size | (50-300) *(35-200)* (20-100)mm |
| Power supply | 220V 50HZ |
| Power | 4KW |
| Main motor power | 0.75kw |
| Main motor working pressure | 0.4Mpa |
| Dimension | 2200 X 950 X 1800mm |
| Conveyor size | 1500 X 300 X 900mm |
| Weight | 750 kg |
Machine Principle
Overwrapping Machine Features

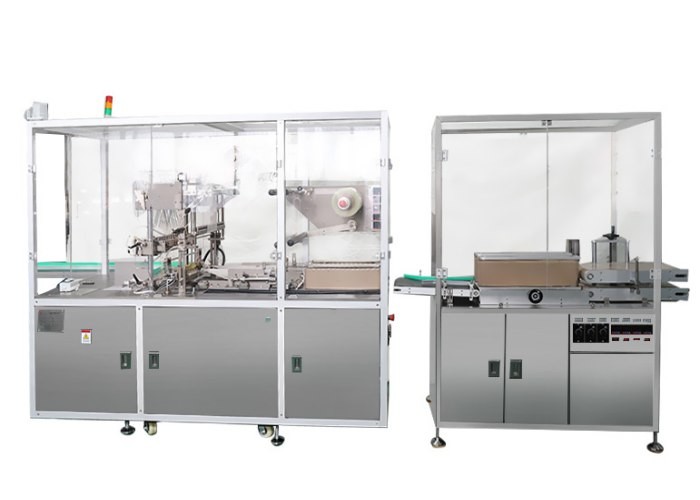

Model:XQ-SW350 Medicine Box Bundle Wrap Automatic Overwrapping Machine with Ironing Machine
| 1. Stainless steel 304 machine body and organic glass cover. |
| 2. Flexible size ranges and quick change over mould. |
| 3. GMP standard alumina working plate, flatting and smoothing. |
| 4. Tear tape, ink printer, box turning over and stacking are optional. |
| 5. Easy to change the moulds for different sizes! (within 15 miniutes) |
| 6. One machine equipped with falst sealing and spot sealing at the same time |
| 7. CAM structure is more stable and more faster |
Packing Material Requirements
| Packaging material |
BOPP shrink film in roll; ID¢76mm; thickness: 0.025 mm Width: according to box size heat-seal temperature: 100℃-150℃ |
| Drawstring |
Self-adhesive A: width: 1.2-3mm B: breaking strength: 10N-15N C: thermal shrink film: ≤2.5℅ D: diameter: 35mm E: heat-seal temperature: 100℃-150℃ |
| Packing products | The shape must be square, the paste is firm, and there must be no flanging, wrong side, misplacement, softness, etc. |
