Servo POF Shrink Wrapping Machine For Cartons 60 Pcs/Min Automatic Sleeve Sealer
Servo POF Shrink Wrapping Machine For Cartons 60 Pcs/Min Automatic Sleeve Sealer Servo POF Shrink Wrapping Machine For Cartons 60 Pcs/Min Automatic Sleeve Sealer Servo POF Shrink Wrapping Machine For Cartons 60 Pcs/Min Automatic Sleeve Sealer
Contact Now

Servo POF Shrink Wrapping Machine For Cartons 60 Pcs/Min Automatic Sleeve Sealer

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30-45 work days Payment Terms : T/T
Supply Ability : 100 set/ month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-BC-450T+XQ-BC-530S

Detail Information
Name: Side Sealer Shrink Wrapping Machine Automatic Grade: Automatic
Available Product: Catons, Pouches, Bottles, Cans, Tubes, Bags Etc. Speed: 1-60 Pcs/min
Cut-seal Way: Straight Cut Cutter Driven Method: Auto, Servo
Shrink Wap Effect: Full-closed Shrink Film: POF
Function: For Single Wrap Or Bundle Wrap Application: Food, Daily Chemical, Pharma, Stationery, Digital Electronics Etc.
High Light:

servo shrink wrapping machine for cartons

,

POF shrink wrapping machine for cartons

,

60 pcs/min automatic sleeve sealer

Product Description

High Speed Servo Side Sealer Shrink Wrapping Machine

  • ​Product description

High Speed Servo Side Sealer Shrink Wrapping Machine is an automatic shrink packaging machine that leads the industry in technological innovation. It can automatically complete the steps of feeding, wrapping, sealing and cutting, and shrinking. The speed is 0-60 pieces per minute. The packaging effect is not wrinkle after shrinking, the degree of automation is high, the work efficiency is high, and the product is truly dustproof, moisture-proof and anti-disassembly.
It is widely used in mass production packaging lines, including printing, color boxes, greeting cards, photo albums, photo frames, medicine, electronics, daily chemicals, cosmetics, auto parts, hardware, food and other industries.

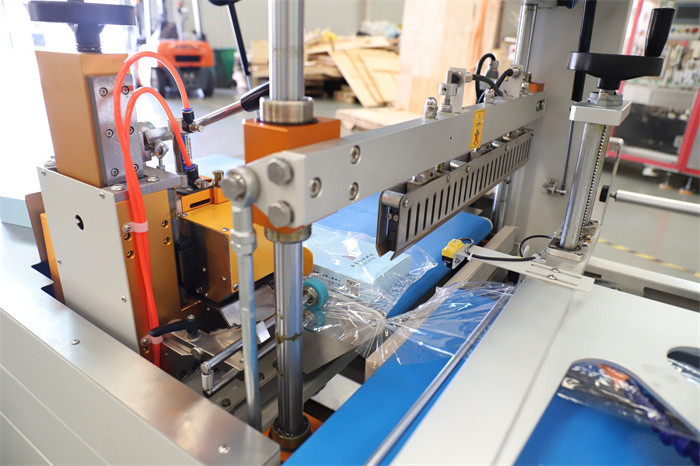

Servo POF Shrink Wrapping Machine For Cartons 60 Pcs/Min Automatic Sleeve Sealer 0

  • Working Principle

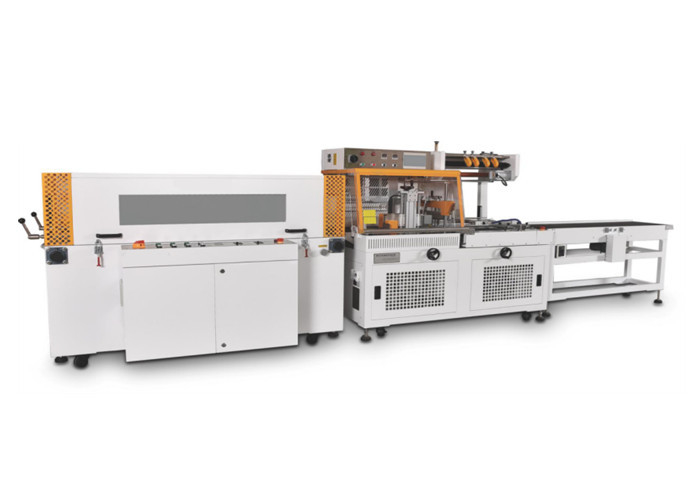

Servo POF Shrink Wrapping Machine For Cartons 60 Pcs/Min Automatic Sleeve Sealer 1



  • Technical Parameter
Model XQ-BC-450T XQ-BC-530S
Max. Packing Sizes L×W×H W+H≤430 L=unlimited(H≤180mm) L1200×W450×H250mm
Packing Capacity 0-60 PCS/MIN 20-60 PCS/MIN
Sealing Size 650X500mm /
Power 5.5kw 15kw
Power Supply 380V 50/60Hz
380V 50HZ
External Air Source 5.5KG/cm2 /
Tunnel Size L×W×H / L1800×W500×H300mm
Max. heat Shrink temperature / 250℃
Shrink Film PE
Machine Size L×W×H L1860×W1580×H1650 L2300×W1100×H1300mm
N. Weight 750kg 460kg



  • Product Features
1. The vertical movement of the double-column of the cutter, the servo drive + worm reduction system makes the sealing more stable;
2. Servo + planetary deceleration system, clear preparation for operation, and arbitrary adjustment within the range.
3. One-button height setting, the packaging height can be adjusted arbitrarily within the applicable range, reducing the sealing knife stroke but achieving faster sealing and cutting efficiency;
4. The vertical + horizontal detection system is used to facilitate the switching of different products.
5. The automatic program is high, the large wind shrinking machine adopts frequency conversion speed control, post-conveying and close-joining function, automatically completes the steps of feeding, bag making, filming, sealing and cutting, heat shrinking, etc., the automatic program control is high, the operation is simple and convenient, and it has safety protection and Alarm function;
6. Unlimited length, strong versatility, fast speed, especially suitable for large and small products



  • Product Samples

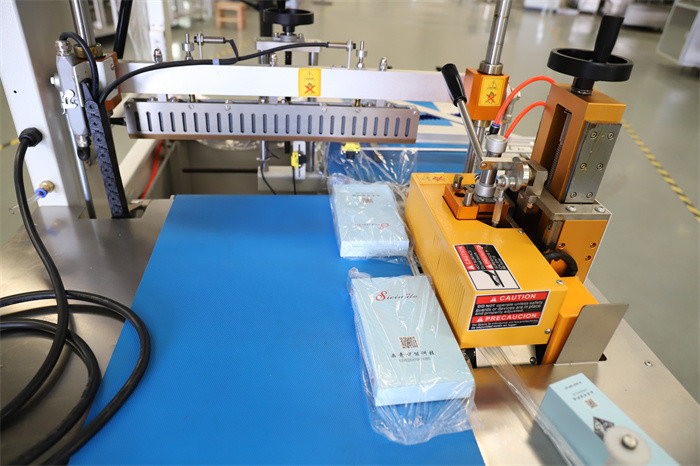

Servo POF Shrink Wrapping Machine For Cartons 60 Pcs/Min Automatic Sleeve Sealer 2

Servo POF Shrink Wrapping Machine For Cartons 60 Pcs/Min Automatic Sleeve Sealer 3
