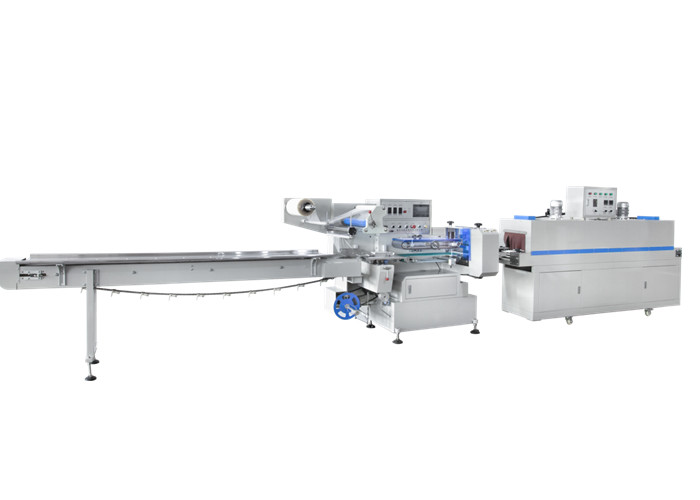

30-150 Pcs/Min High Speed Shrink Wrapping Machine Flow Cut Tunnel

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30-45 work days Payment Terms : T/T
Supply Ability : 100 set/ month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-ZWG-590

Detail Information

Name: Flow Cut Shrink Wrapping Machine Automatic Grade: Automatic
Available Product: Catons, Pouches, Bottles, Cans, Tubes, Bags Etc. Speed: 30-150 Pcs/min
Cut-seal Way: Flow Cut Cutter Driven Method: Auto, Servo
Shrink Wap Effect: Full-closed Shrink Film: POF
Function: For Single Productg Shrink Wrap Application: Food, Daily Chemical, Pharma, Stationery, Digital Electronics Gift Box Etc.
High Light:

30 pcs min high speed shrink wrapping machine


150 pcs min high speed shrink wrapping machine


flow cut sleeve shrink tunnel

Product Description

High Speed Flow Cut Shrink Wrapping Machine /Speed 30-150 PCS/MIN

  • Product description

It is used for high-speed shrink wrapping of full-sealing by flow cut for Food, medicine, beverages, bowl noodles, milk tea, mosquito coils, wallpaper, exercise books, filters, electrical switches, plastic wrap, garbage bags, various stationery, industrial parts and daily cosmetics, etc.



  • Technical Parameter
Max Flim size ≤590mm
Model 120 150 180 210
Packing size L L:60mm-320mm L:100mm-450mm L:150mm-530mm L:180mm-600mm
W w:10mm-200mm w:10mm-200mm w:10mm-200mm w:10mm-200mm
H H:5mm-35mm H:35mm-70mm H:75mm-100mm H:80mm-130mm
Packing speed 30-150 pcs/min 30-150 pcs/min 30-135 pcs/min 30-100 pcs/min
Flim type POF
Power consumption Flow-cut machine:4.5KW;Shrink tunnel:15.5KW
Power supply Flow-cut machine:220V,50HZ/60HZ; Shrink tunnel:380V,50HZ/60HZ
Flow-cut machine 5000x1170x1500mm
Shrink tunnel 2600x600x1700mm
Weight Flow-cut machine:1000KG Shrink tunnel:600KG

  • Product Features

■Color touch screen control system, driven by three servo motors, the whole machine is easy to operate, high stability, high packaging efficiency, low failure rate; bag length, speed and temperature can be adjusted independently, easy to operate and accurate.

■Anti-cutting safety clutch device will not damage the package.

■High-sensitivity photoelectric eye color mark tracking, mathematical input of sealing and cutting position, so that the sealing and cutting position is more accurate.

■Temperature independent PID control, better suitable for various coating materials.

■Positioning stop function, no sticking to the knife, no waste of film.

■The transmission system is simple, the work is more reliable, and the maintenance is more convenient.

■Switch to the automatic reversal of the product, and it is convenient to operate directly after restarting.

■Increase the waste recycling device to make the packaging more beautiful, saving about 20%-30% of materials compared with the traditional half-folding film packaging machine.

■It can be equipped with a coding machine or an inkjet printer, without the need for manual labor.

■With motor brake control, the equipment is responsive.

■Efficient dual temperature zone of heat shrinkable furnace, efficient hot air circulation, automatic temperature control, to ensure shrinkage quality.


  • Product Samples

30-150 Pcs/Min High Speed Shrink Wrapping Machine Flow Cut Tunnel 0
