Condom Cellophane Automatic Overwrapping Machine Tear Tape Equipment
Contact Person : SICI AUTO
Phone Number : 18921338139
WhatsApp : +8618921338139
| Minimum Order Quantity : | 1 set | Packaging Details : | Wooden Case |
|---|---|---|---|
| Delivery Time : | 30 work days | Payment Terms : | T/T |
| Supply Ability : | 30 set/ month |
| Place of Origin: | Wuxi | Brand Name: | SICI AUTO |
|---|---|---|---|
| Certification: | CE | Model Number: | XQ-SW350 |
|
Detail Information |
|||
| Name: | Chocolate Automatic Overwrapping Machine | Wrapping Mode: | Bundle Wrap |
|---|---|---|---|
| Speed: | 20-30pcs/min | Available Box Dimension: | L50-300mm, W35-200mm, H20-100mm |
| Sealing Type: | Flat Sealing | Film Feeding Mode: | Servo Feeding/cam Feeding |
| Power: | 4kw | Voltage: | 220v |
| Optional: | Ironing Machine | Application: | Tea, Gift, Toys |
| High Light: | Chocolate cellophane wrapping machine,automatic cellophane wrapping machine,220v overwrapping machine |
||
Product Description
Chocolate Automatic Overwrapping Machine with Tear Tape for Food
Product Introduction of Overwrapping Machine

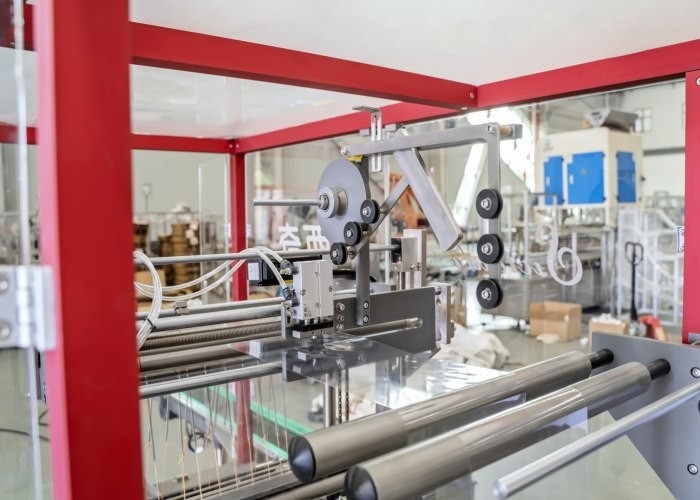

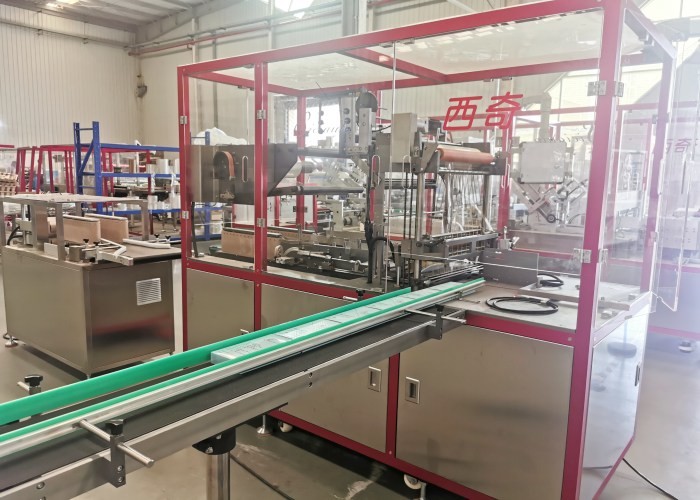

XQ-SW350 automatic cellophane wrapping machine is the integrated product of mechanics and electrics. The main working theories of this machine finish the operation of feeding film, folding, forming and heat sealing etc. of procedures to implement packaging stuff when transferring the packaging stuff by using conveyor, series of working procedures to implement packaging stuff.
Technical Parameter
| Model | XQ-SW350 |
| Packing Size | L50-300mm, W35-200mm, H20-100mm |
| Production Capacity | 20-55 packs / min |
| Total Power | 4kw |
| Working Voltage | 220V |
| Air Consumption | 5-8L/min |
| Air Compressure | 0.4-0.8Mpa |
| Machine Weight | 750kg |
| Machine Dimensions | 2200 (mm) × 950 (mm) × 1800 (mm) |
| Packaged Wooden Case Dimesnion | 2350 (mm) ×1250 (mm) × 2250 (mm) |
Machine Principle
Overwrapping Machine Features
Model:XQ-SW350 Chocolate Automatic Overwrapping Machine with Tear Tape for Food
- Automatic machine for single or bundle boxes wrapping.
- Mechanical driven ensures machine stable running, pneumatic drive auxiliary.
- Servo motor control film feeding, PLC control with soft-touch display.
- Stainless steel 304 machine body and organic glass cover.
- Easy to change mould.
Samples
