Soap Flat Automatic Overwrapping Machine 20-30 Bundle/Min Cellophane Packing

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30 work days Payment Terms : T/T
Supply Ability : 30 set/ month
Place of Origin: Wuxi Brand Name: SICI AUTO
Certification: CE Model Number: XQ-SW350

Detail Information

Name: Soap Collection Wrap Overwrapping Machine Feeding Mode: Flat Push Type
Speed: 20-30pcs/min Available Box Dimension: L50-300mm, W35-200mm, H20-100mm
Sealing Type: Flat Sealing Film Feeding Mode: Servo Feeding
Power: 4kw Voltage: 220v
Optional: Open Door Sensor, Stacking Device Application: Toothpaste, Medicine
High Light:

soap Automatic Overwrapping Machine

,

flat Automatic Overwrapping Machine

,

30 bundle min cellophane packing machines

Product Description

Soap Collection Wrap Automatic Overwrapping Machine with Flat Sealing 20-30 bundle/min



Product Introduction of Overwrapping Machine



Compact structure, simple operation, convenient maintenance in this machine, the mechanical operation parts is provided all kinds of protection device. It can implement automatic feeding. Mechanical mainly convey adopts cam connecting rod, rod system, chain drive and gear drive. End sealing, cable, U type incision, the movement is driven by cylinder. Reciprocating motion of cylinder and film blowing is controlled by pneumatic components.



Technical Parameter



Model XQ-SW350
Packing Size L50-300mm, W35-200mm, H20-100mm
Production Capacity 20-30 packs / min
Total Power 4kw
Working Voltage 220V
Air Consumption 5-8L/min
Air Compressure 0.4-0.8Mpa
Machine Weight 750kg
Machine Dimensions 2200 (mm) × 950 (mm) × 1800 (mm)
Conveyor Belt Dimension 1500 (mm) ×300 (mm) × 900 (mm)



Machine Principle

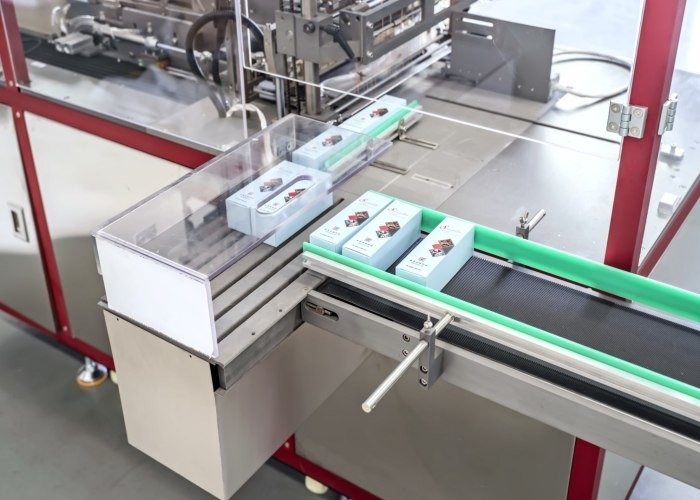

Soap Flat Automatic Overwrapping Machine 20-30 Bundle/Min Cellophane Packing 0

Automatic cellophane overwrapping machine is suitable for wide packing sizes range, to overwrap single or bundle products with BOPP film. It is wildly used in cosmetics, medicine, healthcare, perfume food, soap etc.





Overwrapping Machine Features



Model:XQ-SW350 Soap Collection Wrap Automatic Overwrapping Machine with Flat Sealing 20-30 bundle/min

  • Mechanical driven ensures machine stable running, pneumatic drive auxiliary.
  • Servo motor control film feeding, PLC control with soft-touch display.
  • Stainless steel 304 machine body and organic glass cover.
  • GMP standard alumina working plate, flatting and smoothing.
  • Tear tape, ink printer, box turning over and stacking are optional.

Samples

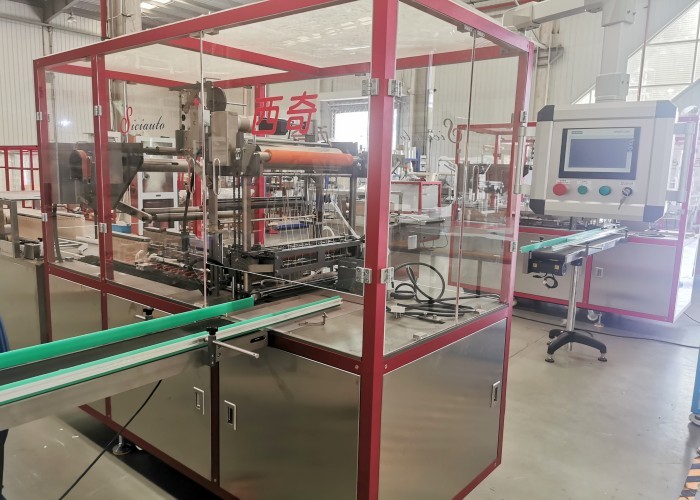

Soap Flat Automatic Overwrapping Machine 20-30 Bundle/Min Cellophane Packing 1
