POF L Automatic Heat Shrink Machine Pneumatic Shrink Tunnel For Bottles

Minimum Order Quantity : 1 set Packaging Details : Wooden Case
Delivery Time : 30-45 work days Payment Terms : T/T
Supply Ability : 100 set/ month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-SW450A+XQ-ST4525

Detail Information

Name: Automatic L Sealer Shrink Wrapping Machine Automatic Grade: Automatic
Available Product: Catons, Pouches, Bottles, Cans, Tubes, Bags Etc. Speed: 1-30 Pcs/min
Cut-seal Way: L Cut Cutter Driven Method: Auto, Pneumatic
Shrink Wap Effect: Full-closed Shrink Film: POF
Function: For Single Wrap Or Bundle Wrap Application: Digital Electronics, Stationery, Daily Chemical, Food, Cosmetics
High Light:

L automatic heat shrink machine

,

POF automatic heat shrink machine

,

pneumatic shrink tunnel for bottles

Product Description

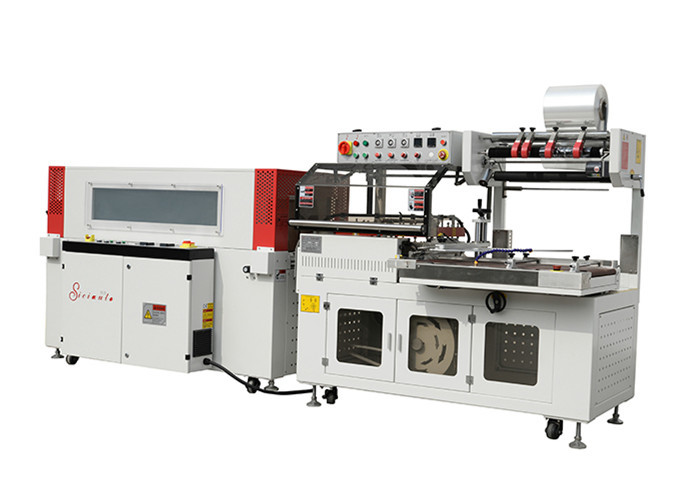

Automatic L sealer Shrink Wrapping Machine from Manuafacturer

  • Product description

Automatic L sealer Shrink Wrapping Machine is A fully automatic and unmanned L-shaped sealing and cutting machine, which is widely used in the assembly line of mass production and packaging. It has high work efficiency, automatic film feeding and punching, automatic film sealing and cutting, and only needs to manually adjust the film guide system and manually adjust the feeding. Material conveying platform, suitable for products of different widths and heights.



  • Technical Parameter
Model Cut-seal machine/XQ-SW450A Shrink tunel /XQ-ST4525
Max. Packing Sizes L×W×H 380*300*125mm
Packing Speed

0-30 PCS/MIN (depend on product size)

0-30 PCS/MIN

Sealing Blade Size 550×W450mm; Customized /
Power ≤2kw 9kw
Power Supply 220V 50/60Hz 3PH 380V 50HZ
Working table height   820±50mm
External Air Source 5.5 -8 KG/cm2 /
Tunnel Size L×W×H / 1000*450*250mm; Customized
Max. heat Shrink temperature / 300℃
Shrink Film POF
Machine Size L×W×H L1860×W1580×H1650,Customized 1300*750*1550,Customized
N. Weight 700kg 380kg





  • Product Features
  • combination, efficient sealing and shrinking

①It is equipped with imported detection photoelectricity, with one set of horizontal and vertical detection, which is convenient for switching selection. For thin and small packages, the sealing and packaging operation can be easily completed;

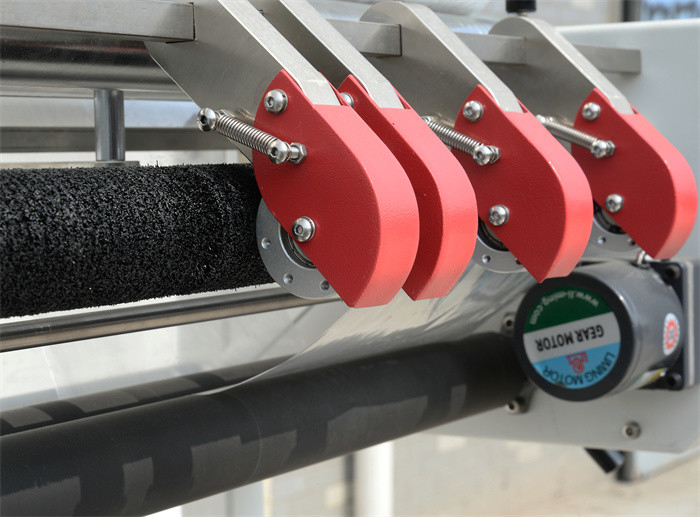

②Automatic feeding, the length can also be adjusted automatically through the combination of the electric eye and the timer; equipped with an induction motor, the waste is automatically coiled;
③When the size of the package is changed, the adjustment is very simple, and there is no need to change the mold and bag maker;
④Products of different sizes can also be packaged in combination to achieve promotional effects;
⑤Sealing and cutting and heat shrinkable packaging are continuously and automatically completed, with stable performance, greatly saving manpower, reliable quality, high shrinkage efficiency and strong applicability;
⑥High cost performance, economical and durable, suitable for sealing, cutting and heat shrinking of heat shrinkable films such as POF and PVC.

  • Beautiful effect and many functions

①The product after sealing, cutting and heat shrinking is more beautiful, and has the functions of moisture-proof, anti-corrosion, anti-collision, etc.;
②The automatic L-shaped sealing, cutting and shrinking packaging machine is suitable for wrapping and pallet packaging of multiple items, and can also be used with automatic packaging lines.



  • Safe and considerate, with the lowest failure rate

① The performance of the parts is precise and durable, the structure design is strict, there is no vibration during the operation, and the operation is stable and reliable;
②The sealing knife adopts the American DuPont Teflon coating, anti-sticking and high temperature resistant aluminum alloy knife, the sealing will not crack, will not coking, will not emit smoke, and has zero pollution;

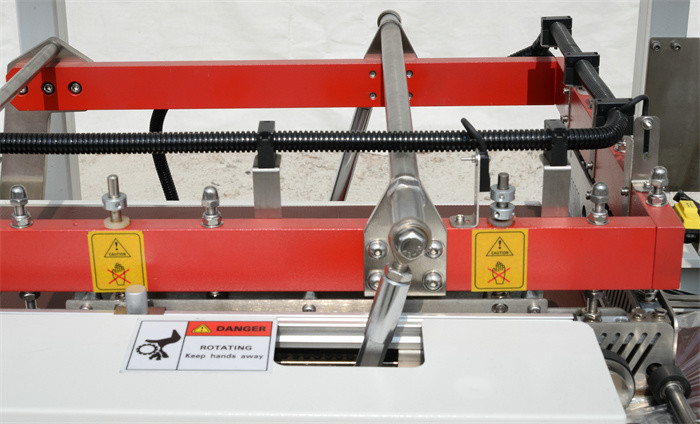

③The sealing and cutting knife has an automatic protection function, which can effectively prevent miscutting the packaging;
④Tens of thousands of parts aging tests to ensure that every detail is more stable, the failure rate is the lowest, safe production, and efficient shrink packaging.
⑤The sealing and cutting part of the machine is equipped with a plexiglass protective cover and has an automatic alarm function, which greatly improves the safety of the operator.

  • Infiltrate various industries

Relying on the above advantages, the automatic L-type sealing, cutting and shrinking packaging machine has been reliably, stably and efficiently applied to large quantities of domestic and foreign well-known enterprises such as food, software, medicine, beverage, tobacco, daily chemicals, automobiles, cables, cosmetics, electronics, etc. Product shrink-wrapped.



  • Product Samples

POF L Automatic Heat Shrink Machine Pneumatic Shrink Tunnel For Bottles 0
