220v 380v Carton Case Packer Machine Seal Wrap Around Bottle By Hot Melt Glue

Minimum Order Quantity : 1 Unit Packaging Details : Wooden Case
Delivery Time : 60 work days Payment Terms : T/T
Supply Ability : 100 Units two months
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-ZX550W

Detail Information

Name: Wrap Around Case Packer Automation: Automatic
Speed: 1-20 Cases/min Available Carton Size: L250-550mm*W200-400mm*160-400mm
Available Product: PVC,PET, Glass Bottles, Cans Structure: All-in-one
Loading Type: Wrap Around Sealing Type: Gluing By Hot Melt Glue
Voltage: 220/380v Application: Mineral Water, Fruit Juice Drinks, Cans,Beer, Wine Bottles
High Light:

220v Carton Case Packer Machine


380v Carton Case Packer Machine


wrap around bottle case packer

Product Description

Bottles Wrap Around Carton Case Packer Machine with Seal by Hot Melt Glue

  • Product description

Wrap-around case packer adopts servo positioning, PLC control, and fully automatic operation. The main rotation is driven by motor, and all levels of transmission are adjusted by chains and sprockets. It has the advantages of high degree of automation and simple adjustment. It can be widely used in beverage, beer, chemical, food, pharmaceutical and other industries. It can be used for secondary packaging of various bottles and cans, and is used in conjunction with automatic filling production lines.

 Widely used in PVC,PET, glass bottles, cans product for Beverage industry: beverages, mineral water, fruit juice drinks, cans carbonated drinks etc. and Beverage Industry: Beer, Wine Bottles, Liquor, Wine, Red Wine, Whiskey, Brandy and dairy products: milk...and so on.

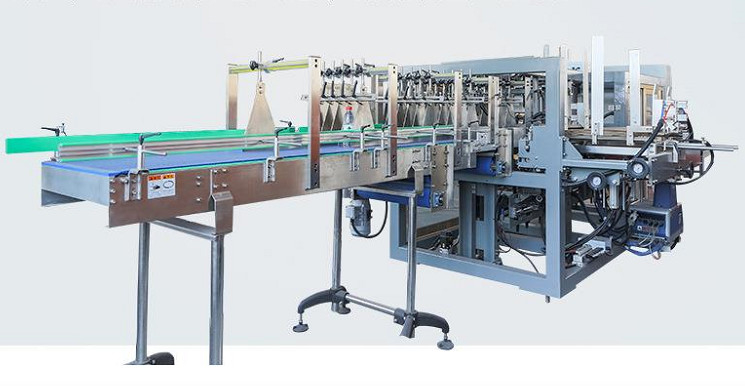

220v 380v Carton Case Packer Machine Seal Wrap Around Bottle By Hot Melt Glue 0

  • Technical Parameter
Model XQ-ZX550W
Packing Size L 250-400mm; W 150-350mm; 80-300mm; Customized
Production Capacity 15-20 cartons/min.
Glue consumption ≤4g/carton
Melting temperature 170℃±5℃
Solidify time 1.5S-2.5S
Total Power 12KW
Working Voltage 220v/380v 50/60HZ
Air pressure source supply 5.5~6kg/cm2
Machine Dimensions L5620 mm ×W3040 mm ×H1735 mm, depend on customized
N.W 1000KG, depend on customized
Note: For Customized product, all data above are for reference only, the final data are subject to actual demand.
  • Working Principle

 the bottle is pushed, fed, and divided smoothly. The packaging process runs smoothly and there is no bottle inverted phenomenon.
It is suitable for carton packaging of beer, beverage, bottled water, medicine, food and other bottle (can) production lines. The cardboard packaging method saves about 1/5 of the cost of packaging materials compared to the traditional packaging method.
The combination of centralized system and man-machine interface improves various control functions of packaging, and directly input, modify and store parameters of various packaging specifications.
The flat cardboard is used for one-time forming and wrapping, and the unique box pressing technology enables the carton to be formed more firmly, the packaging effect is beautiful, the labor intensity of the operator is greatly reduced, and the requirements for the cardboard are also greatly reduced.

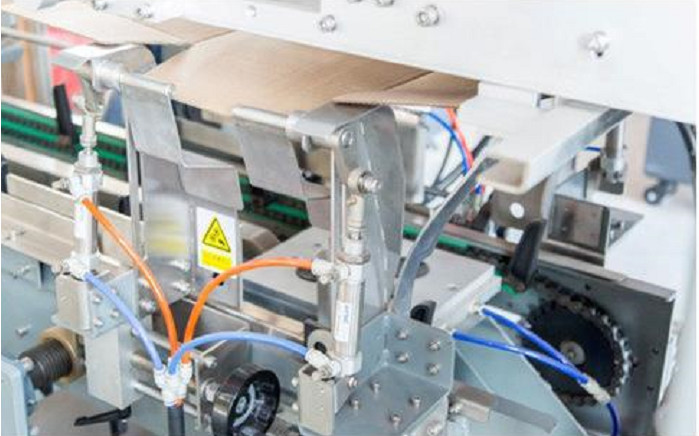

220v 380v Carton Case Packer Machine Seal Wrap Around Bottle By Hot Melt Glue 1



  • Product Features

1. Adopt straight or L direction bottle feeding method: small footprint, simplify the conveying system in front of the packing machine, and reduce the investment cost of the whole line equipment

2. The side feeding method is adopted: the structure is simple and reasonable, and the failure rate is small:

3. Two-stage decompression is adopted: the product is decompressed, the bottle is dropped smoothly, and the bottle is not stuck; after the product is dropped into the box, it is in a state of micro-pressure and stable transportation, and there is a structure design to prevent the bottle from being inverted, and there is basically no bottle inverted phenomenon;

4. Adopt servo bottle drop system: high positioning accuracy, accurate movement action, reduce shock and vibration during equipment operation, and greatly increase equipment operation stability


5. Using Nordson Robatech melter in the United States. Long service life and more convenient service


6. One piece is formed to reduce the cost of the carton. The side feeding method is adopted; the structure is simple and reasonable, and the failure rate is small.


7. Adopt servo bottle drop system: high positioning accuracy. Reduce the impact and vibration when the equipment is running, and greatly increase the stability of the equipment


  • Product Samples

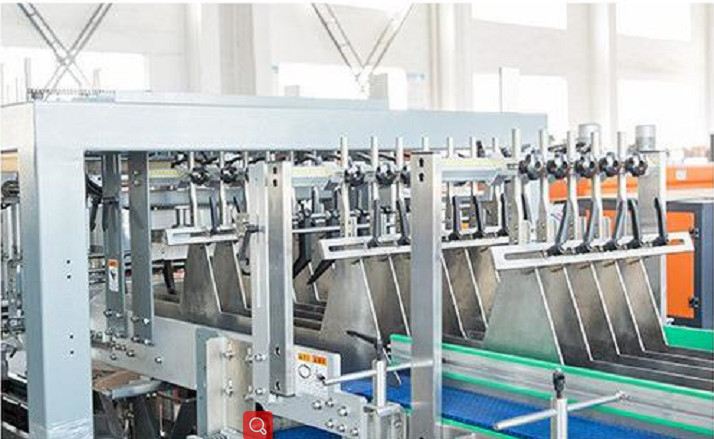

220v 380v Carton Case Packer Machine Seal Wrap Around Bottle By Hot Melt Glue 2
