Stationery Notebook Automatic Case Packer 10 Cases/Min Top Load

Minimum Order Quantity : 1 Unit Packaging Details : Wooden Case
Delivery Time : 60 work days Payment Terms : T/T
Supply Ability : 100 Units two months
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-ZX400L

Detail Information

Name: Top Load Carton Case Packer Machine / Case Packing System Line Automation: Automatic
Speed: 1-10 Cases/min Available Carton Size: L250-550mm*W200-400mm*160-400mm
Available Product: Product In Cartons, Boxes, Bottles, Books, Naked Product Structure: Split Type
Loading Type: Top Load, Grab Type Sealing Type: Tape Or Glue
Voltage: 220/380v Application: Stationery, Pharma, Costmetics, Personal Care, Health Care Etc.
High Light:

stationery automatic case packer


notebook automatic case packer


10 cases/min top load case packer

Product Description

School Notebook Top load carton case packer machine / Case packing system line for Stationery Product

  • Product description

Top load carton case packer machine is Case packing system line that used to load cases vertically with products by auto It is wildly used in cosmetics, medicine, healthcare, commodity, etc.


It is designed to load several cases at same time by mult-station grabers, available for large production of products, Widely used in stationery industries like books, school notebooks, paper packs, and Food, cosmectis indyustries etc.


Stationery Notebook Automatic Case Packer 10 Cases/Min Top Load 0

  • Technical Parameter
Model XQ-ZX400L
Packing Size L 250-550mm; W 150-400mm; 150-400mm; Customized
Production Capacity Max. 6 downloads/carton, and loading 4 cartons at the same time per minute.
Product loading method Top-loading
Total Power 2.3KW
Working Voltage 380V/ 50Hz
Air pressure source supply 5.5~6kg/cm2
Machine Dimensions L2130 mm ×W2050 mm ×H3200 mm. depend on customized
N.W 1000KG, depend on customized
Note: For Customized product, all data above are for reference only, the final data are subject to actual demand.
  • Working Principle

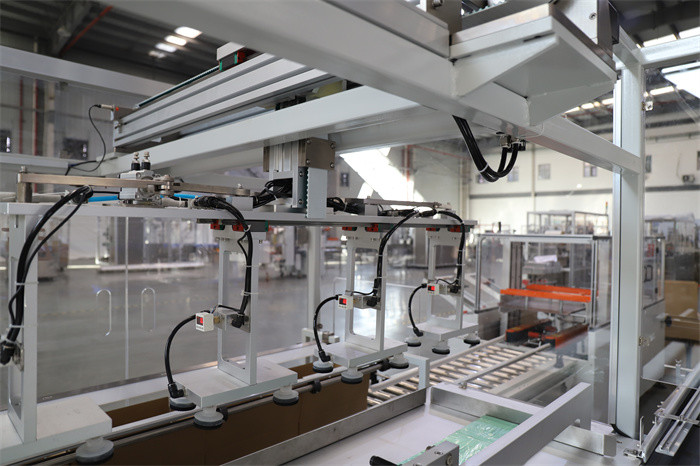

Stationery Notebook Automatic Case Packer 10 Cases/Min Top Load 1


  • Product Features

● According to the customer's packing arrangement requirements, the products are automatically arranged and combined

● Novel design and compact structure.

● Wide range of applications, suitable for packing a variety of products.

● When packing, the equipment will automatically open and position the top of the carton to ensure smooth packing.

● It adopt the packing method of multi-station loading by top loading

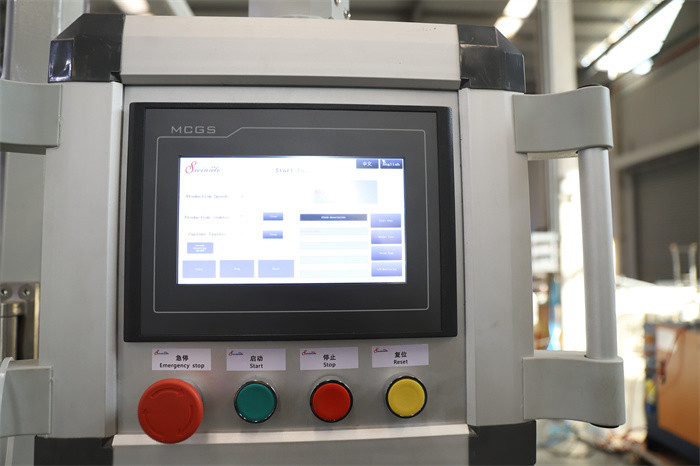

● Control mode: PLC+touch screen+standard control button+signal switch, divided into automatic/manual control mode

● The fault point can be found through the touch screen, and the fault can be easily eliminated.

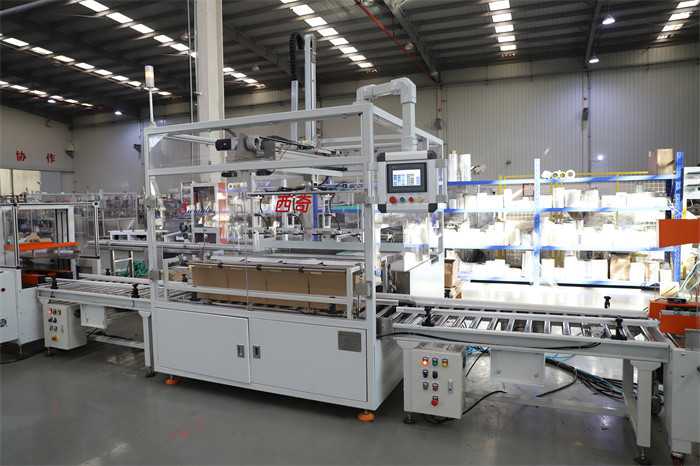

Stationery Notebook Automatic Case Packer 10 Cases/Min Top Load 2
