8 Cases/Min Cosmetics Carton Case Packer Machine 220v Side Load

Minimum Order Quantity : 1 Unit Packaging Details : Wooden Case
Delivery Time : 60 work days Payment Terms : T/T
Supply Ability : 100 Units two months
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-ZX550

Detail Information

Name: Side Loading Carton Case Packer Machine Automation: Automatic
Speed: 1-8 Cases/min Available Carton Size: L250-550mm*W200-400mm*160-400mm
Available Product: Boxed Product, Bags Structure: All-in-one, Compact Type
Loading Type: Side-load, Side Push Sealing Type: Tape Or Hot Melt Glue
Voltage: 220/380v Application: Cosmetic Carton Box
High Light:

cosmetics Carton Case Packer Machine

,

8 cases min Carton Case Packer Machine

,

220v side load case packer

Product Description

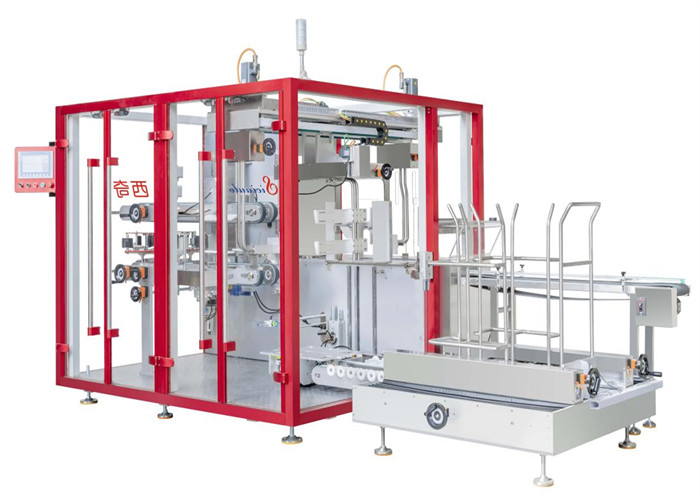

Cosmetic Carton Box Side Loading Carton Case Packer Machine

  • Product description

 Cosmetic Carton Box Side Loading Carton Case Packer Machine is independently designed and developed by our company. It adopts balcony design, multi-row pre-palletizing mechanism, electric control system adopts imported electrical components, PLC control system, man-machine operation interface, main mechanism The drive is servo motor + pneumatic, which has the characteristics of stable operation, convenient mold replacement, and simple operation; it is mainly used for automatic packing of boxed products in the food and pharmaceutical industries.



  • Technical Parameter

Carton Size L 250-550mm* W200-400mm *H160-400mm
Speed 6-10cases/min,customized
Product input height 800±50mm
Product output height 800±50mm
Tape width W(48,60)mm×L(100m)
Compressed Air supply 5.5~6kg/cm²
Power supply 220v/380v 50/60HZ
Machine size L2300 mm ×W2000 mm ×H1900 mm
Machine weight 1500Kg





  • Working Principle

8 Cases/Min Cosmetics Carton Case Packer Machine 220v Side Load 0



  • Product Features

1. This machine is suitable for high-speed palletizing and packing lines for single boxes, such as boxed oral liquid, boxed cosmetics, etc.

2. The equipment automatically flips and positions the carton before packing to ensure smooth packing without the worry of box jams.

3. It has a wide range of applications and can meet the packing of various specifications.

4. It can be customized according to user requirements.

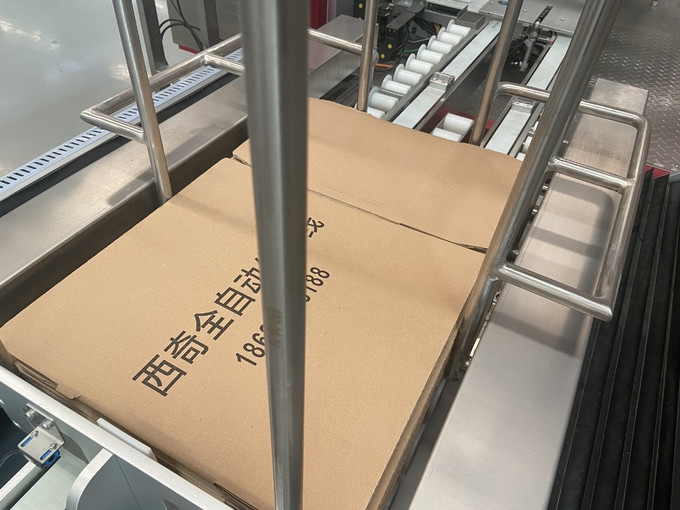

  • Sample Product





8 Cases/Min Cosmetics Carton Case Packer Machine 220v Side Load 1
