10cases/Min Robotic Top Load Case Packing Machine Automatic Compact

Minimum Order Quantity : 1 Unit Packaging Details : Wooden Case
Delivery Time : 60 work days Payment Terms : T/T
Supply Ability : 100 Units two months
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-ZX550R

Detail Information

Name: Robotic Carton Case Packer/robotic Case Packing System Automation: Automatic
Speed: 1-10 Cases/min Available Carton Size: L250-550mm*W200-400mm*160-400mm
Available Product: Product In Cartons, Boxes, Bottles, Books Structure: All-in-one
Loading Type: Top-load, Robotic Type Sealing Type: Tape
Voltage: 220/380v Application: Food, Beverage, Stationery, Pharma, Cosmetics, Personal Care Etc.
High Light:

10cases min top load case packing machine


robotic top load case packing machine


Automatic compact case packer

Product Description

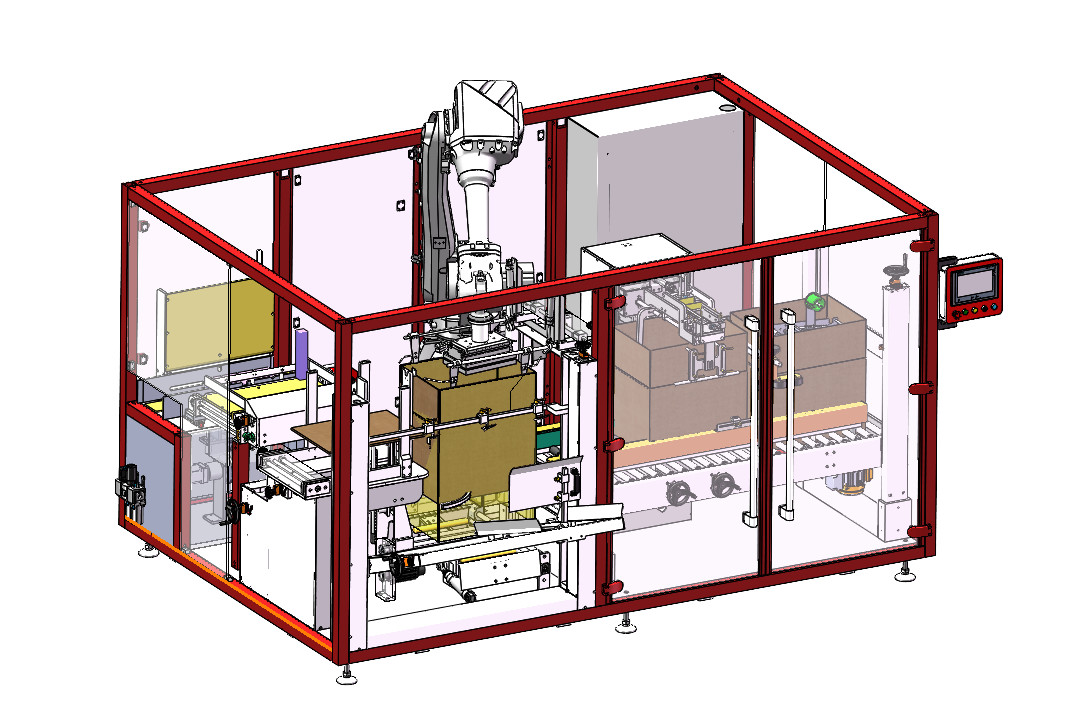

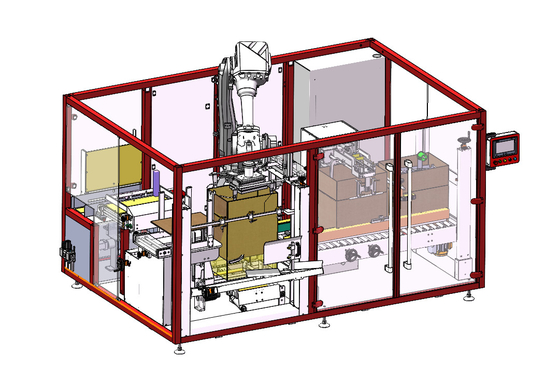

Robotic carton case packer/robotic case packing system from manufacturer direct


  • Product description

The Robot based Case Packer is ideal for top load pick and place of wide range of products viz. bottles, cans, jars, bricks, pouch, bags etc.) into cartons or crates.It is the perfect solution for secondary packaging applications. It can be used based on our standard pre-engineered design or custom-designed for your specific needs.


  • Technical Parameter
    Model XQ-ZX550R
    Packing Size L 200-400mm; W 250-550mm; 160-400mm; Customized
    Production Capacity 1-5cartons per minute
    Product loading method Top-loading
    Total Power 2.3KW
    Working Voltage 220v/380v 50/60HZ
    Air pressure source supply 5.5~6kg/cm2
    Machine Dimensions

    L3370 mm ×W2250 mm ×H1900 mm. depend on customized

    N.W 2000KG, depend on customized
    Note: For Customized product, all data above are for reference only, the final data are subject to actual demand.

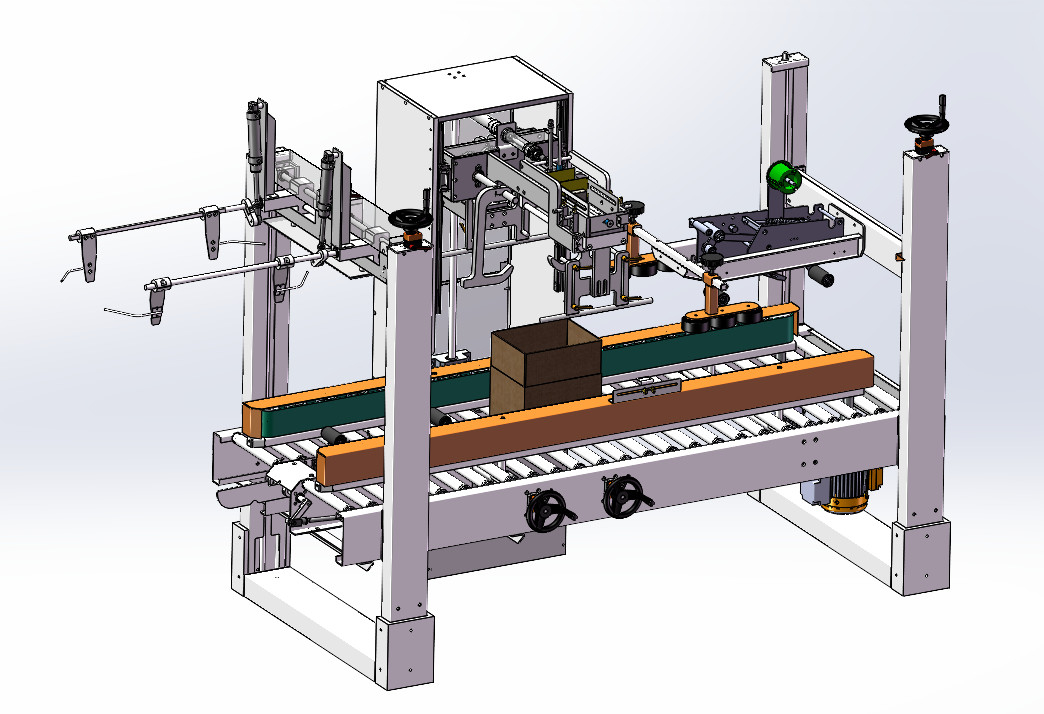

  • Working Principle

10cases/Min Robotic Top Load Case Packing Machine Automatic Compact 0

10cases/Min Robotic Top Load Case Packing Machine Automatic Compact 1


  • Product Features
  • Quick, automated, changeover
  • Flexible product formats
  • Space saving floor configurations
  • Precise and reliable
  • Rigid or non-rigid packages
  • Application


  • Dairy
  • Sauces & Condiments
  • Soup
  • Snacks


  • Juice
  • RTD
  • CSD
  • Wine & Spirits
  • Water
  • Beer


  • Soap & Shampoo
  • PET/HDPE Container Mfg.


  • Paper Products
  • Cleaner, Bleach, & Detergent
  • Chemical Products
