1-10 Case/Min Drop Type Case Packer Machine Split Automatic

Minimum Order Quantity : 1 Unit Packaging Details : Wooden Case
Delivery Time : 60 work days Payment Terms : T/T
Supply Ability : 100 Units two months
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: XQ-DLZX200

Detail Information

Name: Drop Type Carton Case Packer Machine Automation: Automatic
Speed: 1-10 Cases/min Available Carton Size: L250-550mm*W200-400mm*160-400mm
Available Product: Product In Bottles Structure: Split Type
Loading Type: Drop Type Sealing Type: Tape
Voltage: 220/380v Application: Oil, Beverages, Mineral Water, Fruit Juice Drinks, Cans Carbonated Drinks,
High Light:

1 case/min drop type case packer

,

10 case/min drop type case packer

,

split case packer machine

Product Description

Drop type carton case packer machine

  • Product description

Drop-type carton case packer machine, also known as drop load case packer, the product enters the carton through the buffer device by falling vertically.

This machine has the characteristics of small footprint and flexible packaging, and is suitable for automatic packing of various types of products.  It is generally used for the packing of special-shaped bottle containers, large-volume containers and bagged products.

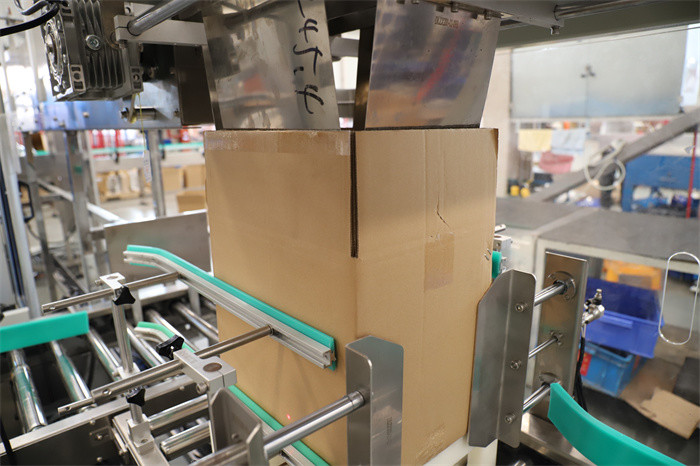

1-10 Case/Min Drop Type Case Packer Machine Split Automatic 0



  • Technical Parameter
    Model XQ-DLZX200
    Packing Size L 250-550mm; W 150-400mm; 150-400mm; Customized
    Production Capacity Max. 6 downloads/carton, and loading 4 cartons at the same time per minute.
    Product loading method Top-loading
    Total Power 2.3KW
    Working Voltage 380V/ 50Hz
    Air pressure source supply 5.5~6kg/cm2
    Machine Dimensions L2130 mm ×W2050 mm ×H3200 mm. depend on customized
    N.W 1000KG, depend on customized
    Note: For Customized product, all data above are for reference only, the final data are subject to actual demand.




  • Working Principle

Move the entire row of bottles to the top of the carton accurately, and automatically place the entire row of packaging items into the carton through the positioning device according to the packing requirements.

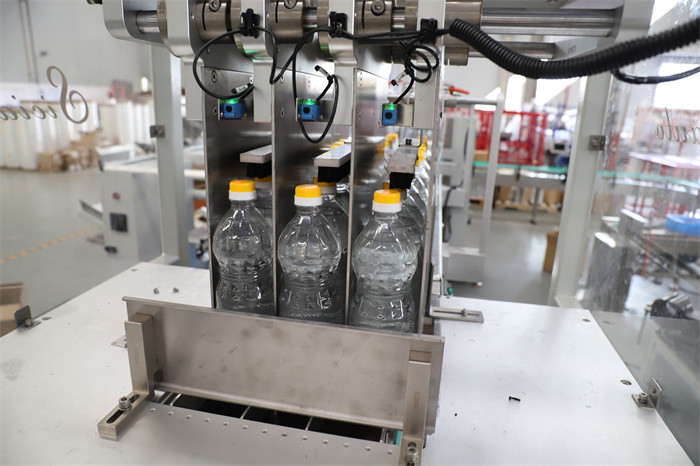

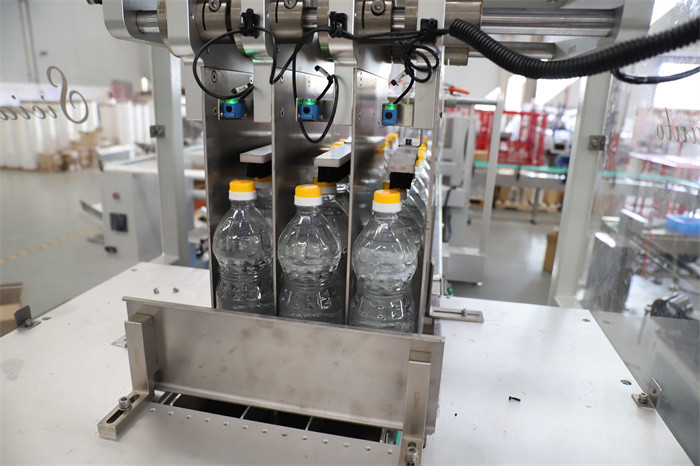

1-10 Case/Min Drop Type Case Packer Machine Split Automatic 1

  • Product Features

★Advanced design, compact structure, convenient use, reliable operation, and reasonable price to ensure product quality.

★Thereby improving production efficiency and reducing labor intensity.

★All actions are coordinated to make the whole system run stably, reliably and safely.

★Suitable for automatic packing of edible oil, beverages, mineral water, washing supplies and other items;
★The working procedure is automatically completed by PLC program control without manual intervention;
★According to customer's non-standard design and production.
★The arrangement of the products is determined according to the user's requirements, and the products are arranged by the pneumatic alignment mechanism and pushed into the carton;
★Completely independent research and development, select imported parts and electrical components;

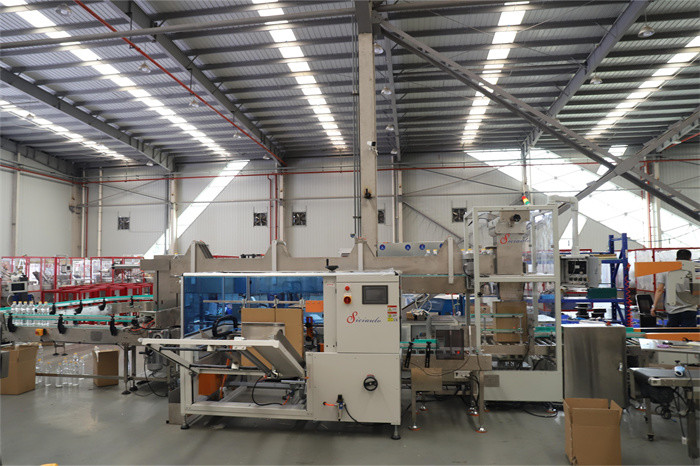

1-10 Case/Min Drop Type Case Packer Machine Split Automatic 2
