30000bph Automatic Shrink Sleeve Labeling Machine Double Head 50hz High Speed

Minimum Order Quantity : 1 SET Packaging Details : Standard wooden case for export
Delivery Time : 60 work days Payment Terms : T/T
Supply Ability : 100 set/ month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: TSB-350S

Detail Information

Name: Shrink Sleeve Labeling Machine Automatic Grade: Automatic
Available Product: Square Bottle / Round Bottle Product Size: Φ28-125mm
Function: Sleeve Label Or Seal Label Position: Bottle Body , Bottle Cap, Bottle Bottom Or Bottle Neck Etc.
Speed: ≤30000 Bph Label Material: PVC、PET、OPS Etc.
High Light:

30000bph automatic shrink sleeve labeling machine

,

double head automatic shrink sleeve labeling machine

,

50hz high speed labeling machine

Product Description

Square Bottle / Round Bottle Shrink Sleeve Labeling Machine with Single Label Head

High Speed Shrink Sleeve Labeling Machine with Double Label Heads

  • Product Desription

Automatic sleeve label, also known as disc label, also called roll label, is a kind of heat shrinkable film label roll used on automatic sleeve labeling machine. Automatic labeling machine is a new type of label that automatically tracks, automatically cuts, automatically labels, automatically locates, and then heats and shrinks.

Industry: fruit juice, tea drinks, dairy products, mineral water, purified water, sports drinks, condiments, sugar and wine, pharmaceuticals, cosmetics, detergents and other food and beverage industries, daily necessities industries;

Bottle type: round bottle, square bottle, flat bottle, curved bottle, special-shaped bottle, cup, barrel, filling, etc.;

Requirements: Both the bottle body and the bottle mouth need a set of labels;



  • Technical Parameter

1.Capacity: ≤30000 bottles/hour(b/h)

2.applicable bottle diameter: Φ28-125mm

3.applicable label length: 30~250mm

4.applicable label thick: 0.03-0.13mm

5.voltage: AC380/220V,50/60Hz

6.total power: 3kw

7.net weight: 900kg

8.dimension: 2100(L)×850(W)×2000(H)mm



  • Product Advantages

In order to meet the needs of domestic and foreign markets, our company has developed a double-head structure sleeve labeling machine;

The double-head automatic heat shrinkable film sleeve labeling machine can meet the requirements of simultaneous labeling of the bottle mouth and the bottle body;

One machine for two purposes, which can reduce one sleeve labeling machine and save costs;

Reduce the length of the conveyor line and reduce the equipment footprint;

Avoid secondary handling, shorten the process flow, and improve production efficiency;

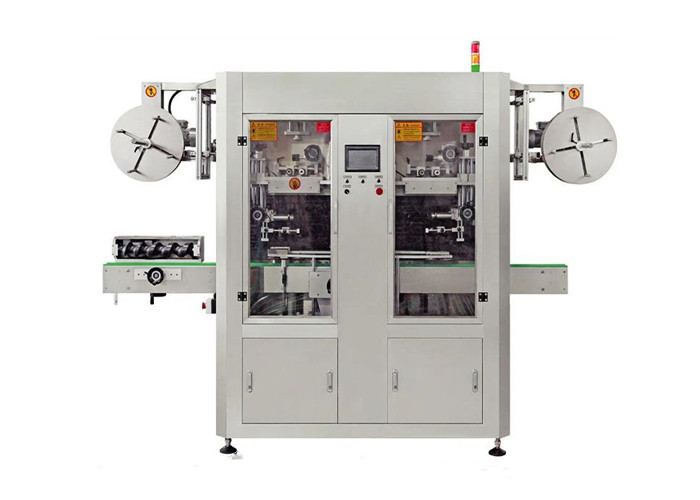

30000bph Automatic Shrink Sleeve Labeling Machine Double Head 50hz High Speed 0

  • Product Feature

1. Conveying motor with encoder: synchronous stepless belt adjustment, more stable at high speed;
2. Full-cover type 304 stainless steel main frame: waterproof, no rust, stable structure;
3. No replacement, no debugging tool holder, rotary cutting cutter head (two sets): long life, convenient and fast replacement, smooth and beautiful cut surface;
4. Two sets of single-machine synchronously driven six-point positioning center column (D350/450 is a 4-wheel drive 8-point positioning center column): label guidance is stable, precise and smooth;
5. Tail-shaped label control electric eye frame (two groups): the adjustment of the sub-label position is convenient, and the film material cutting accuracy is higher;
6. Synchronous bottle divider: the bottle is conveyed smoothly and evenly, ensuring long-term efficient and stable work;
7. Single-machine synchronous drive brushing (two groups): accurate target shooting, no deviation from target, no flying target;
8. Electric eyes for bottle detection and label control (two groups): imported high-precision photoelectric sensors are used, and the label segmentation is accurate, without blocking or missing labels;
9. The industry's first synchronous constant micro-tension feeding rack (two groups): avoid label segmentation inaccurate caused by the sudden change of spring resistance;
10. The industry's first improved standard feeding drive group (two groups, D350/450 is 4-wheel drive): avoid the misalignment and blocking of the standard caused by the asymmetry of the center offset step caused by the sudden large torque when the high-speed bid is fed;
11. The double-head automatic heat shrinkable film sleeve labeling machine can be equipped with an independent feeding rack and a freely positioned material rack.

  • Product Samples

Automatic sleeve label is widely used in bottled water, bottled mineral water, purified water, soda water, fruit juice, vegetable juice, beverages, cola, dairy products, milk drinks, yogurt, fermented bean curd, cooking wine, various vinegars, tomato sauce, chili sauce , soy sauce, shampoo, detergent, detergent, disinfectant, pesticides, pesticides and other bottle labels.

30000bph Automatic Shrink Sleeve Labeling Machine Double Head 50hz High Speed 1
