Beer Wine Shrink Sleeve Tunnel Machine 12000 Bph Shrink Sleeve Heat Tunnel

Minimum Order Quantity : 1 SET Packaging Details : Standard wooden case for export
Delivery Time : 60 work days Payment Terms : T/T
Supply Ability : 100 set/ month
Place of Origin: Wuxi,China Brand Name: SICI AUTO
Certification: CE Model Number: TSB-350

Detail Information

Name: Shrink Sleeve Labeling Machine Automatic Grade: Automatic
Available Product: Wines / Beer / Drinks Bottles Product Size: Φ40-125mm
Function: Sleeve Label Label Position: Bottle Body , Bottle Cap, Bottle Bottom Or Bottle Neck Etc.
Speed: ≤12000 Bph Label Material: PVC、PET、OPS Etc.
High Light:

wine shrink sleeve tunnel machine

,

beer shrink sleeve tunnel machine

,

12000 bph shrink sleeve heat tunnel

Product Description

Heat Shrink Tunnel Machine / Shrink Sleeve Labeling Machine for Wines / Beer / Drinks Bottles



  • Product Desription

Shrink Labeler or Shrink Sleeve Labeling Machine As one of the equipment with high technical content in the back-end packaging, the sleeve labeling machine has been fully affirmed by the majority of customers for its excellent high-speed stable performance, unique smart design, and human-machine coordinated safety mode.
The sleeve labeling machine is suitable for the sleeve label bottle body, and whole bottle for all kinds of Wines / Beer / Drinks in PE bottles, PET bottles, glass bottles,

  • Technical Parameter

1.Capacity: ≤12000 bottles/hour(b/h)

2.applicable bottle diameter: Φ40-125mm

3.applicable label height: 30-250mm

4.applicable label length: 0.03-0.08mm

5.voltage: AC380/220V,50/60Hz

6.total power: 3kw

7.net weight: 900kg

8.dimension: 2100(L)×850(W)×2000(H)mm



  • Working Principle

When the bottle pushing electric eye finds that a bottle is coming and thinks that continuous production is required, the bottle feeding screw starts to push the bottle (the function of the bottle feeding screw is to divide the bottles that come from unequal distances into new bottles at the same initial speed), and the bottle enters the bottle. The core unit of the sleeve labeling system. When the sleeve label electric eye senses the arrival of a bottle, it will immediately transmit the information to the control center PLC. And through the PLC, four commands are issued in sequence and consecutively: label sending, positioning, label cutting, and label shooting. After the label shooting is completed, the sleeve labeling process of a bottle is completed, and then it enters the label sorting and shrinking unit.





  • Product Feature

1. It is suitable for all kinds of bottle-type juice, tea beverages, dairy products, mineral water, purified water, condiments, beer, red wine, wine and other food and beverage and wine industries. Not only has high positioning accuracy, but also the bottle can stand out after shrinking. .
2. The mechanical structure is highly stable: the machine adopts a stainless steel protective frame cover and an aluminum alloy rigid frame, which has a stable structure and no rust.
3. Flexible selection of multiple bottle types: it can cover round bottles, square bottles, oval bottles, etc., and you can also choose the bottle mouth or bottle body.
4. Unique synchronous tool holder, within the specification range, the tool holder remains unchanged. If you need to change the specs, it can be done quickly in 5 minutes.
5. Wide range of application: suitable for food, beverage, cleaning supplies, medicine, wine bottles and other plastic bottles, glass bottles, PVC, PET, PS, iron cans and other containers.
6. High-quality positioning accuracy: fully mechanical transmission design, forced installation, suitable for various film materials with a film thickness of more than 0.030 mm, and the inner diameter of the film material can be adjusted in the range of 5-10.
7. Low maintenance cost of consumables: This machine adopts low-cost disposable blades, which are easy to replace and low in cost.
8. Reliable after-sales service: all kinds of spare parts warehouses of this machine have spare parts, which can be provided at any time, and experienced engineers provide you with technical support.
9. The appearance is exquisite and beautiful, the overall structure is firm, and it is lighter and more elastic when used.
10. The designed reciprocating cutting machine has rigid body combination and smooth movement, which doubles the tool life.
11. The positioning of the central column is simple, the specification is easy to change, the operation is simple, easy to understand, and easy to learn, which completely avoids the troubles of users.
12. Leading the industry to carry out new structural design, the quality is more solid and better, which is absolutely incomparable with the existing domestic products.
13. The structural parts of the machine are simple and generous, the failure rate is low, and the maintenance is convenient.
14. The whole series of safety-themed safety boxes is actually a well-thought-out design.

  • Product Samples

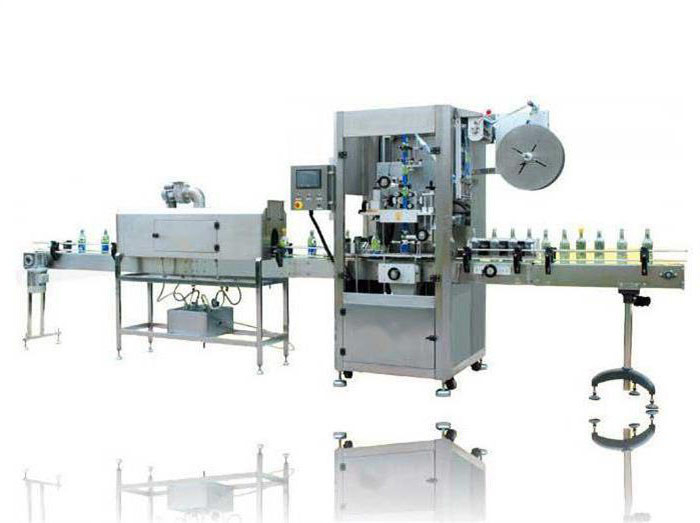

Beer Wine Shrink Sleeve Tunnel Machine 12000 Bph Shrink Sleeve Heat Tunnel 0
